BRAKES
42

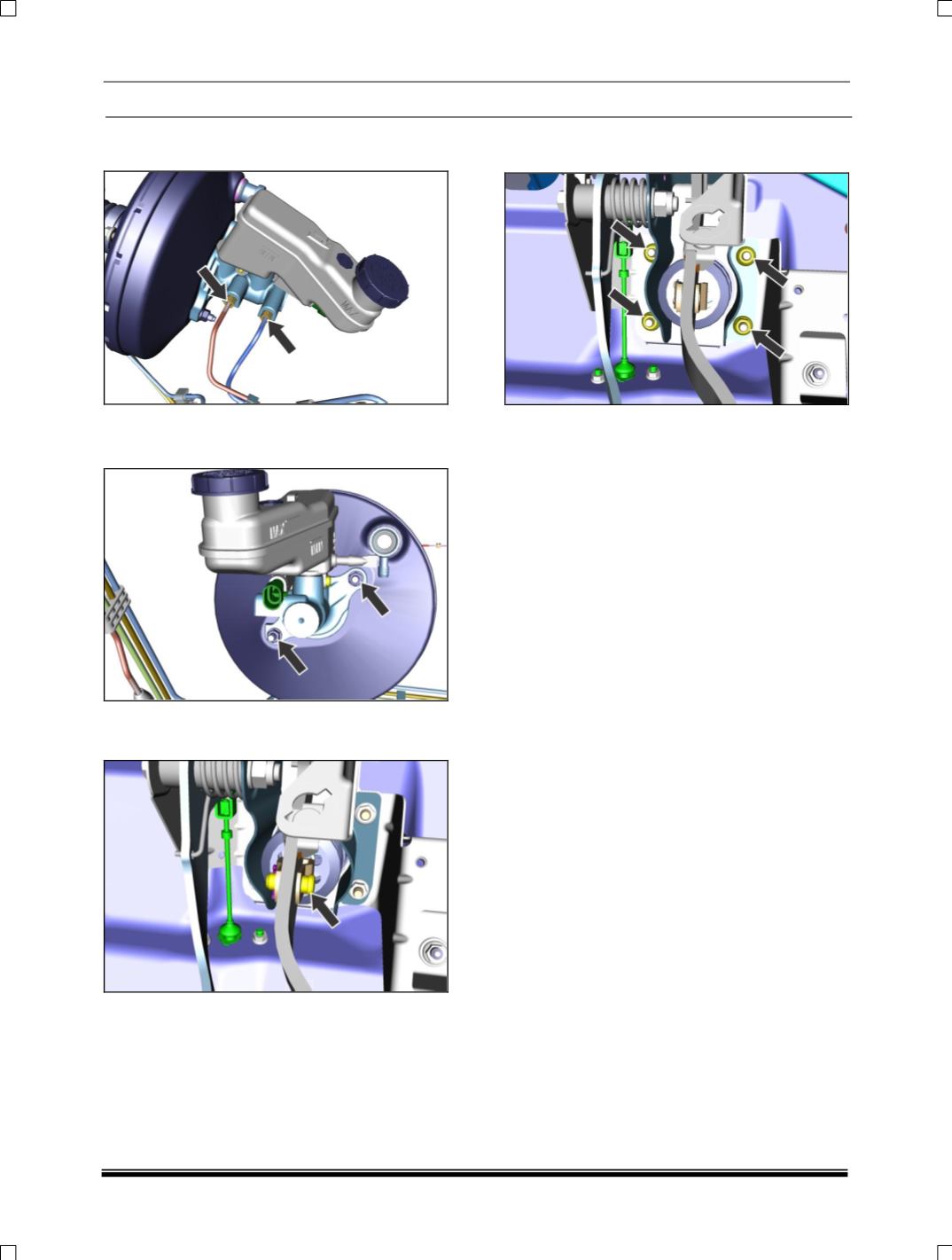

5. Loosen coupling nuts and disconnect hydraulic
lines attached to TMC.
6. Remove mounting fasteners of TMC and take
it out.
7. Release clevis clips securing brake booster
push-rod to brake pedal.
8. Remove four nuts securing brake booster to
firewall.
9. Remove brake booster carefully.
INSTALLATION:
1. Clean TMC and brake booster mating
surfaces. Mount brake booster on firewall and
tighten four nuts to specified torque (2.0 - 2.5
Kg-m)
2. Tighten clutch master cylinder bolts (For
QUADRAJET)
3. Refit clevis pin.
4. Realign brake pipes into mounting bracket.
5. Connect vacuum hose to brake booster.
6. Mount TMC on booster and tighten all
fasteners to specified torque (1.0 - 1.6Kgm)
7. Reconnect all hydraulic lines to TMC and
tighten coupling nuts to specified torque (1.4 -
1.8Kgm).
8. Reconnect the CMC hose to reservoir.
9. Reconnect the electrical connector of brake
fluid level switch.
10. Top up the recommended quantity of clutch
port oil and bleed the system.
11. Reconnect battery.
