BRAKES

39

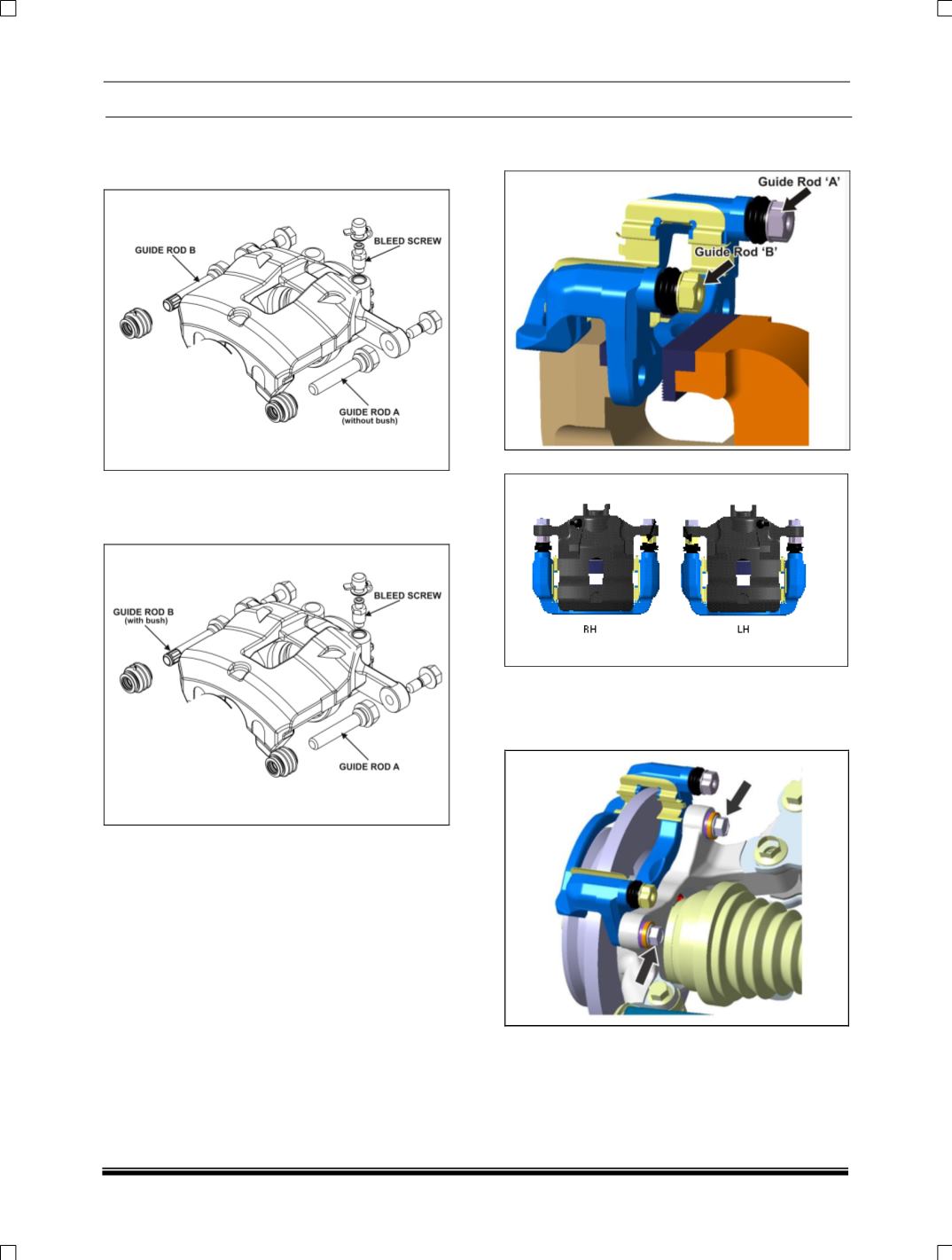

NOTE-



Guide rod ‘A’ (without bush) (always near

bleed screw side both LH & RH).



Assembly guide rod ‘B’ (with bush) (always

opposite to bleed screw side both LH & RH).

Brass colour.

3. Assemble boot guide rods, guide rod A and

guide rod B.

NOTE-

4. Assemble the new carrier assembly to the

knuckle. Apply recommended torque. Ensure

correct fitment.
