BRAKES
43
6.13.4 REAR BRAKE ASSEMBLY :

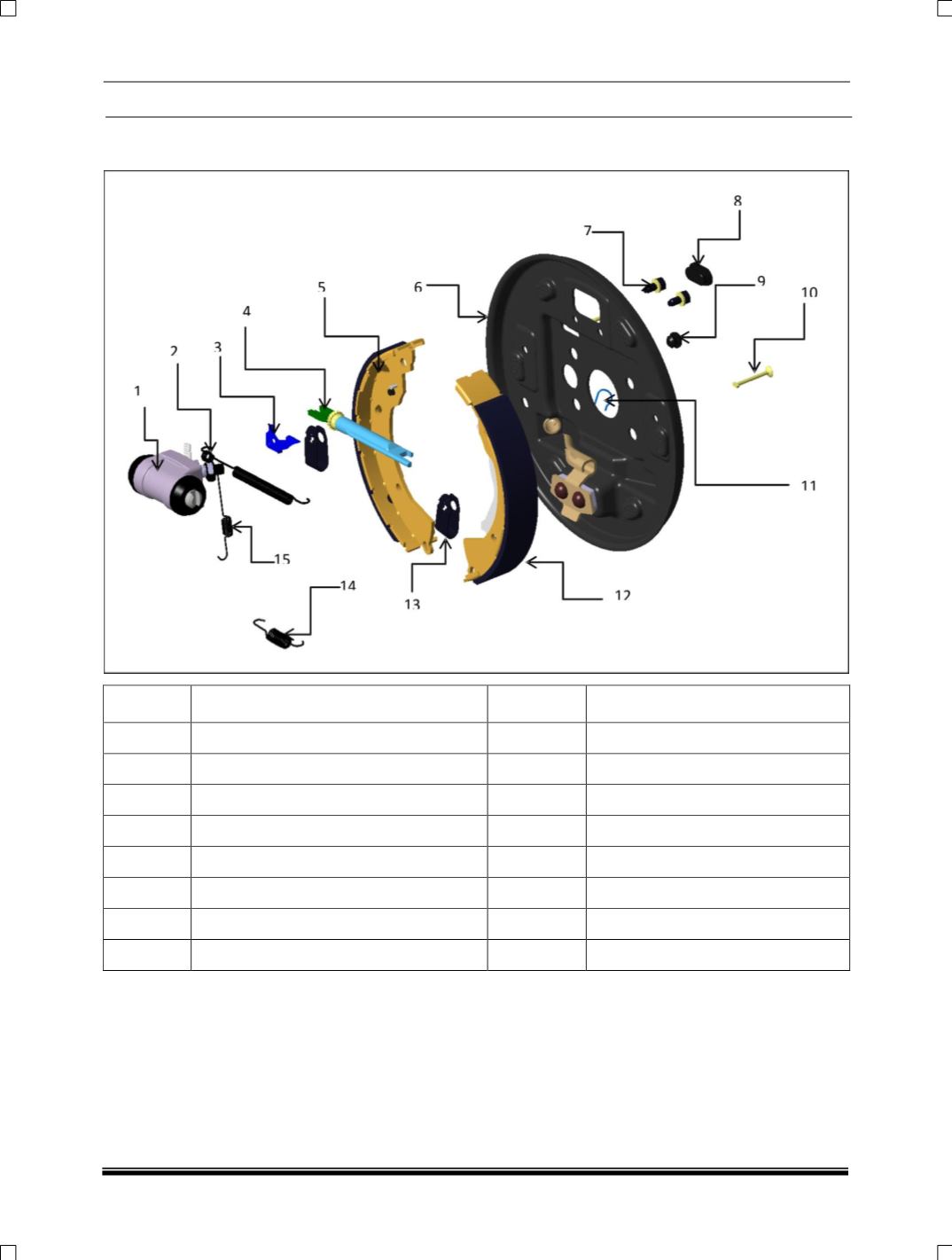

Exploded View of rear Brake Assembly
ITEM NO
DESCRIPTION
ITEM NO
DESCRIPTION
01
WHEEL CYLINDER ASSEMBLY
09
PLUG
02
SHOE RETURN SPRING
10
SHOE HOLD DOWN PIN
03
LIVER PAWL
11
RETAINING RING
04
ADJUSTER ASSEMBLY
12
UNIT SHOE ASSEMBLY
05
LEADING SHOE ASSEMBLY
13
SHOE HOLD DOWN SPRING
06
BACK PLATE ASSEMBLY
14
SHOE RETURN SPRING
07
SET BOLT
15
ADJUSTER SPRING
08
INSPECTION PLUG
