TIAGO

BRAKES

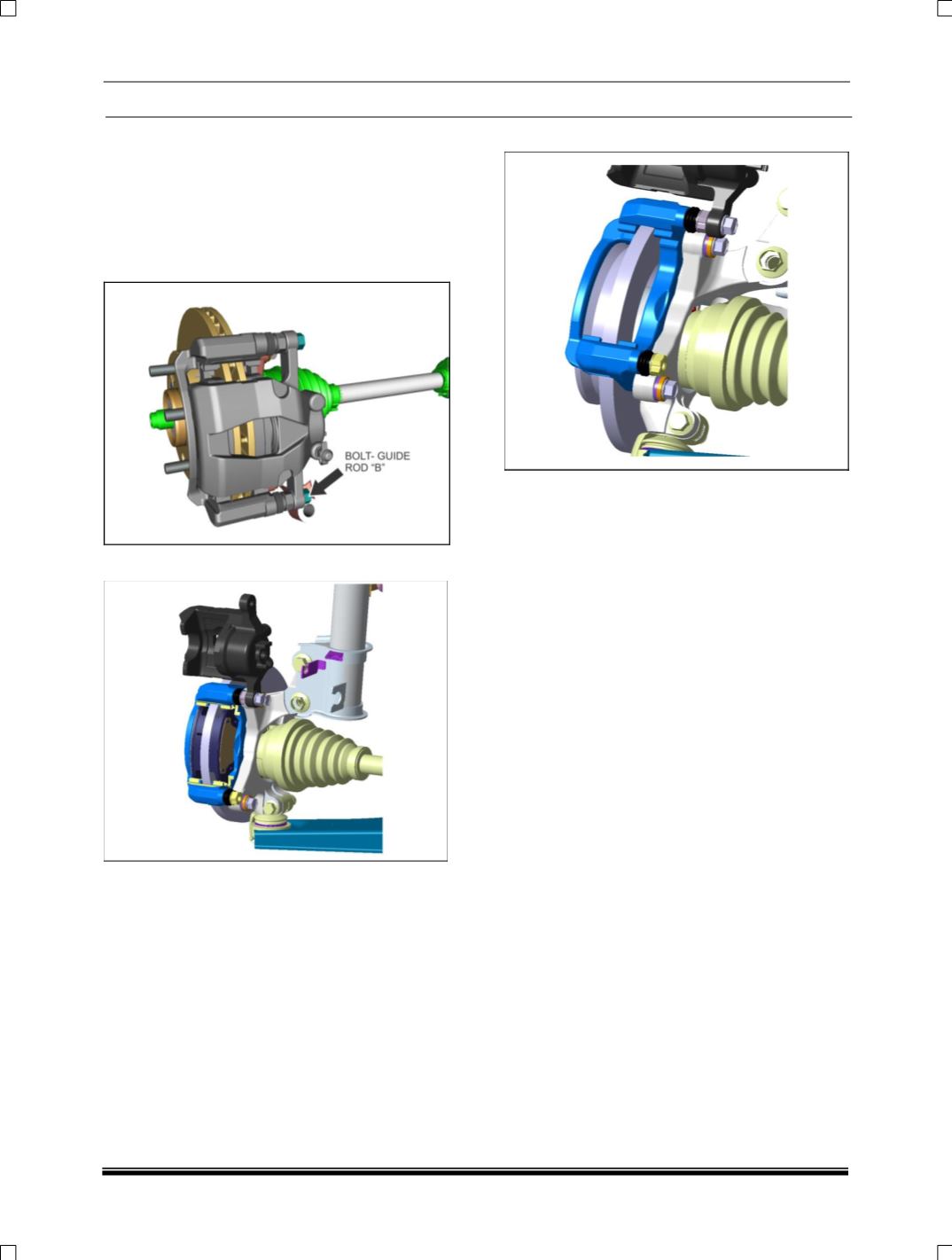

REMOVAL OF PAD

1. Keep the gear shifter lever in neutral position.

2. Apply the parking brake.

3. Jack the vehicle and remove the rear wheel.

4. Loosen and remove the bottom sliding pin

bolt.

5. Swing caliper as shown in figure.

6. Remove brake pads.

ASSEMBLY:

Follow reverse procedure to assemble brake

pads.
