BRAKES

40

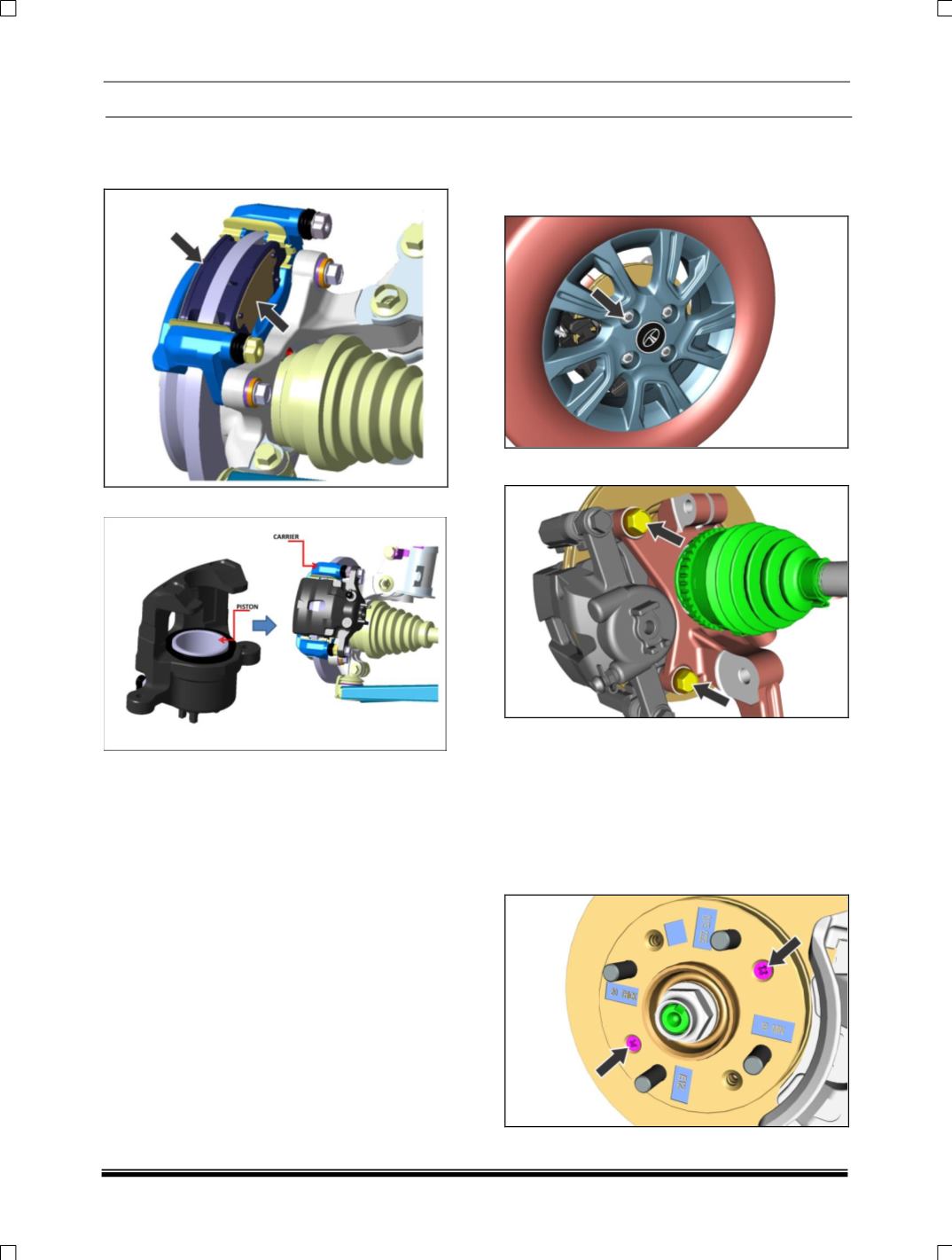

5. Carefully assemble the inner and outer pad

assemblies respectively and ensure the free to

and fro movements of pads.

6. Re-install the caliper in the carrier.

NOTE:

Re-install the caliper in the carrier, screw the

banjo bolt (with copper gasket) to the

recommended torque, then release the hose

clamp, do bleeding operation and check for

correct function of the caliper parts, ensure no

drag and frictional noise.

7. Assemble the wheel again.

6.13.2 REMOVAL OF FRONT BRAKE DISC

1. Position the vehicle on two post lift and remove

front wheel/s by removing wheel mounting

nuts.

2. Remove two bolts of brake caliper assembly.

Release caliper assembly and tie aside clear off

from brake disc.

CAUTION:

Do not allow caliper to hang on brake hose as

it may damage the hose.

3. Remove brake disc screws (02 nos.) securing

brake disc to the hub.

4. Pull off the brake disc.
