TIAGO

SUSPENSION

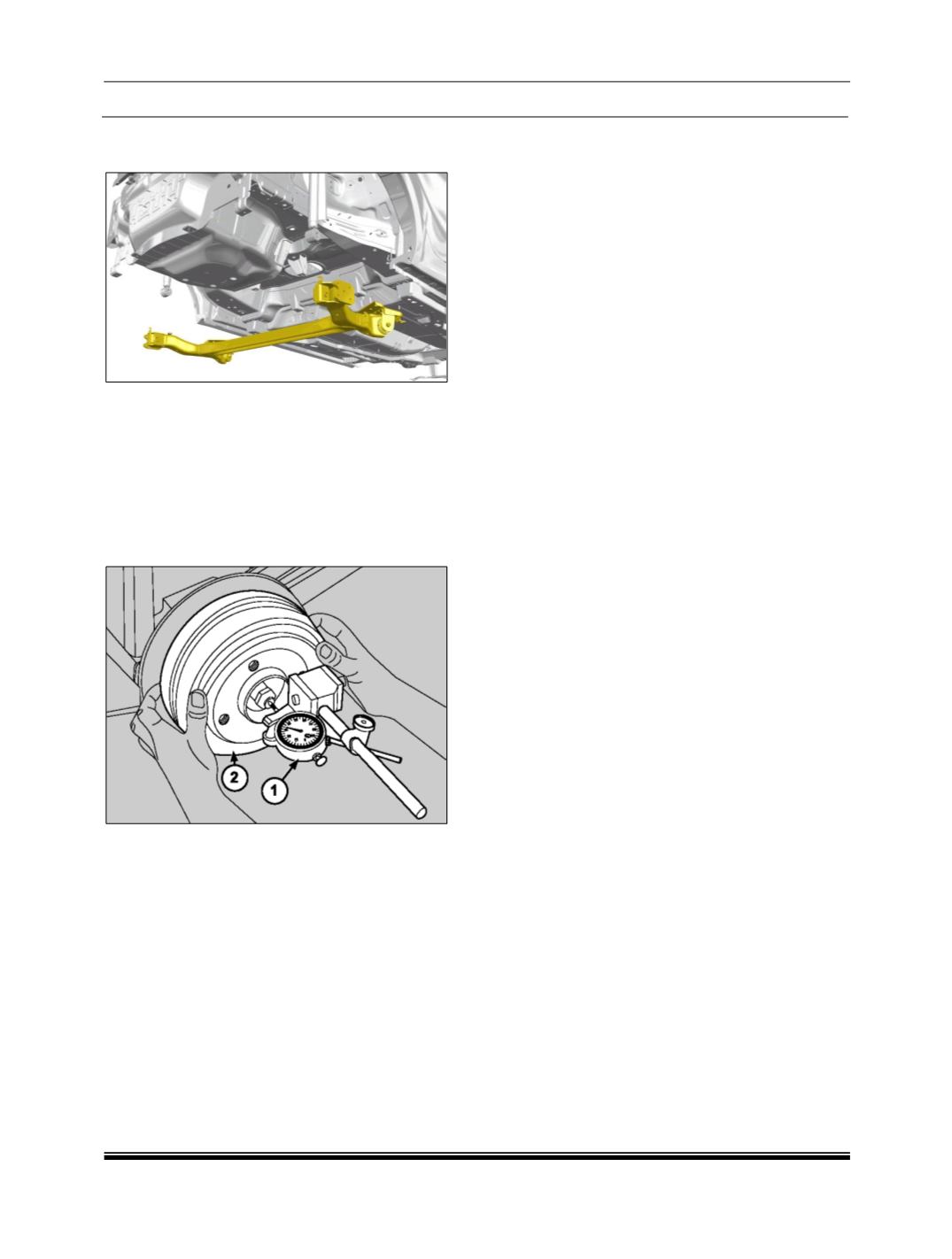

3. Lift and properly position the twist beam along

with bracket.

FIG. 84

4. Tighten the four bolts of bracket on both sides.

5. Fix the brake lines and parking brake cable

mounting on the torsion beam.

6. Fix the back plate assembly along with brake

shoes and stub axle to the torsion beam.

7. Fit the brake drum. Check out for play.

FIG. 85

8. Fix the shock absorber to the torsion beam.

(Refer the refitment of shock absorber).

9. Top up the brake fluid and carry out the bleeding

of brakes. (Refer brakes).
