TIAGO

SUSPENSION

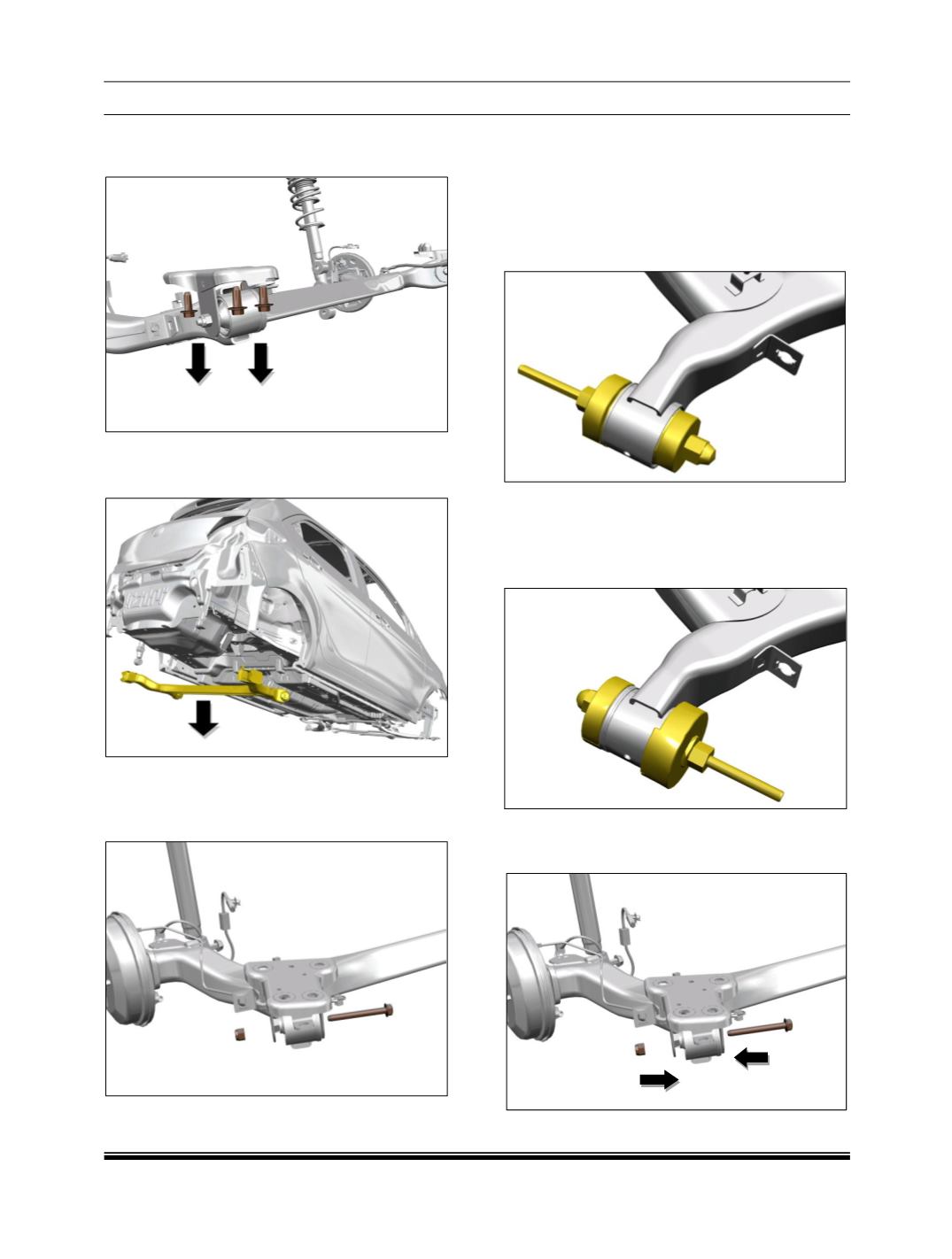

17. Loosen and remove the twist beam bracket

bolts on both sides.

FIG. 78

18. Lower the twist beam along with bracket.

FIG. 79

19. Remove the twist beam cross bolt on both

sides.

FIG. 80

5.9.4. TWIST BEAM BUSH REMOVAL

Remove twist beam front pivot bush using

special tools as shown in below arrangement.

NOTE:

Apply soap water to the bush and the bore of twist

beam assembly before installation.

FIG. 81



INSTALLATION

1. Install twist beam front pivot bush using special

tools as shown in below arrangement.

FIG. 82

2. Tighten the cross bolt of the twist beam.

FIG. 83
