DRIVETRAIN-TA65 Star
60

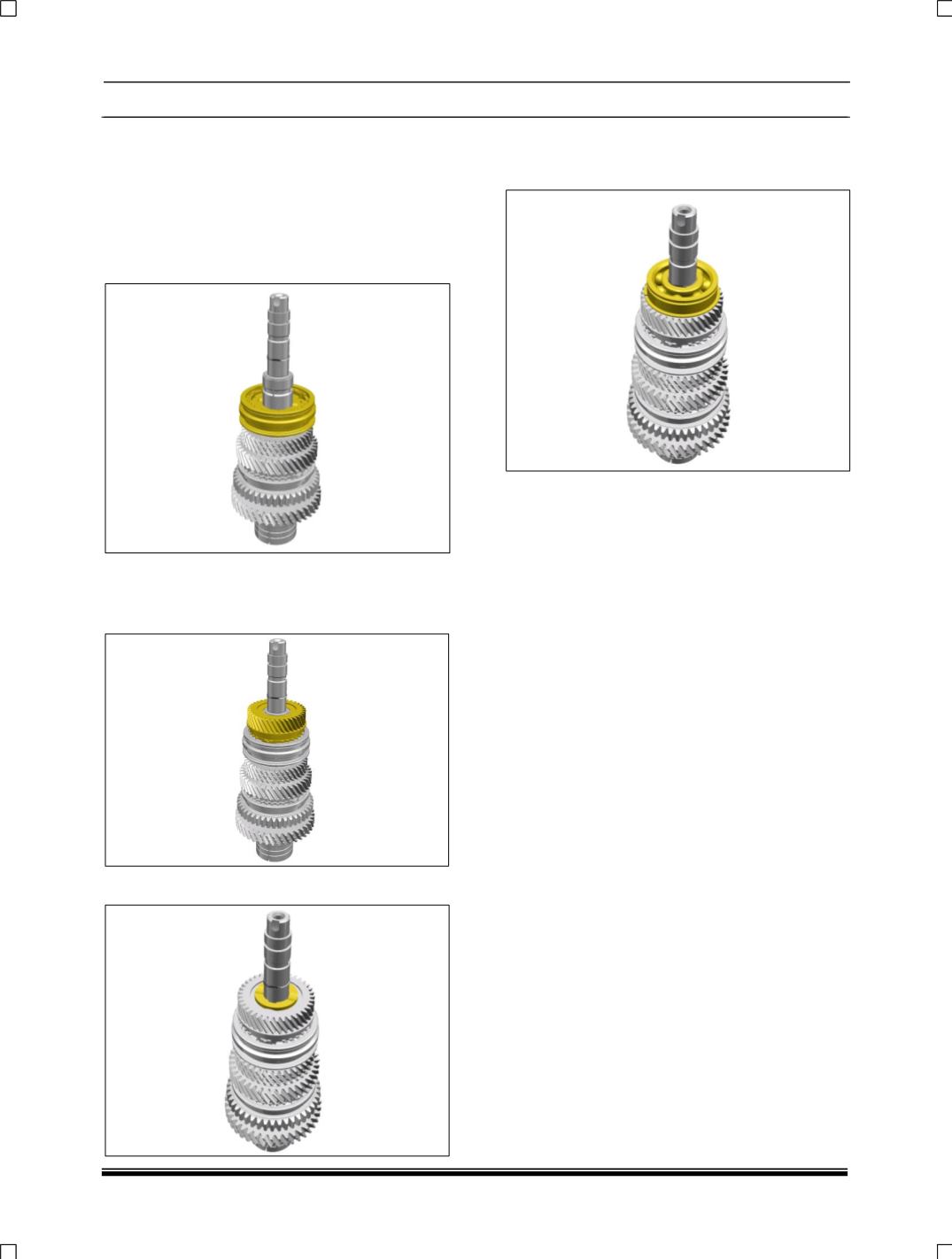

16. Place engaging gear with circlip recess
downward and with slot on engaging gear on
corresponding lug on synchrocone. Place
springs (3 nos.) carrier (3/4/5) (3 nos.) and
steel balls (3 nos.) and slide shifter sleeve
(3/4/5 speed) on it. Ensure that the slot for
fork pad on shifter sleeve (3/4/5) will be in
downward position.
17. Place synchrocone (4th gear) and locate its
lug into slots of engaging gear.
18.Place 4th gear.
19.Place the spacer.
20. Press deep groove ball bearing with taper
groove for lock plate side upwards on lay
shaft using drift part no. 2641 5890 2601.
21. Press the cap on Lay shaft oil hole bore
(below the final drive pinion).
