TIAGO

DRIVETRAIN-TA65 Star

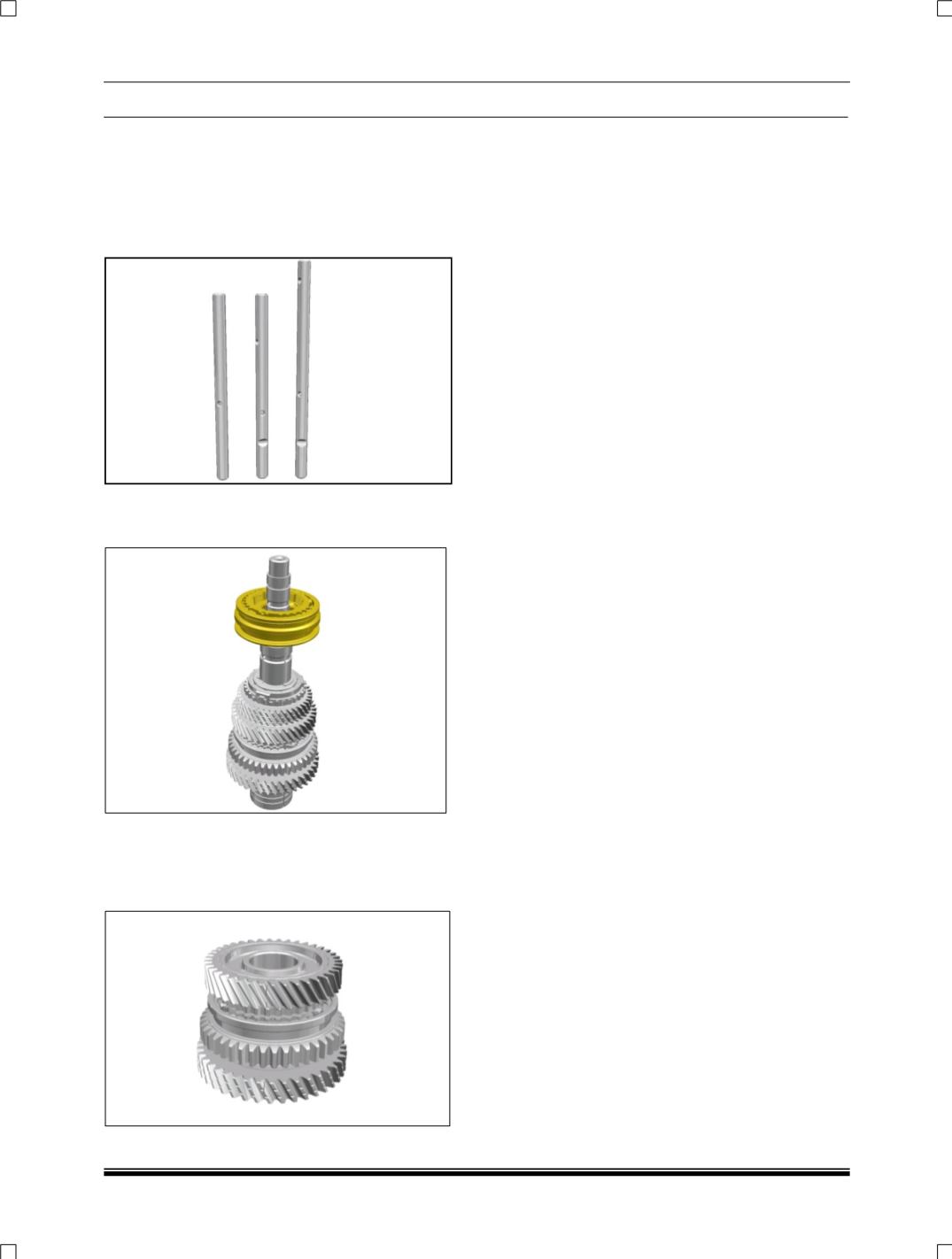

4. SHIFTER SHAFTS

1. 1st and 2nd shift has only one hole for shifter

fork fitment.

2. 3rd and 4th shifter has two holes for dowel pin

with notch at one end for inter lock ball.

3. 5th/Rev. shifter shaft is the longest of all.

4. SHIFTER SLEEVE:

1. 3rd and 4th shifter sleeve.

2. 5thsleeve is having d ach chamfer on dog

teeth only on one side.

3. 1st and 2nd shifter sleeve is integral with

reverse gear.

5. SYNCHROCONE:

1. 5th/4th/3rd synchrocones are having smaller

inner dia and are identical.

2. Each 1st and 2nd synchrocones has three

pieces outer cone (sits on engaging gear)

intermediate part and inner cone (sits on

gear).
