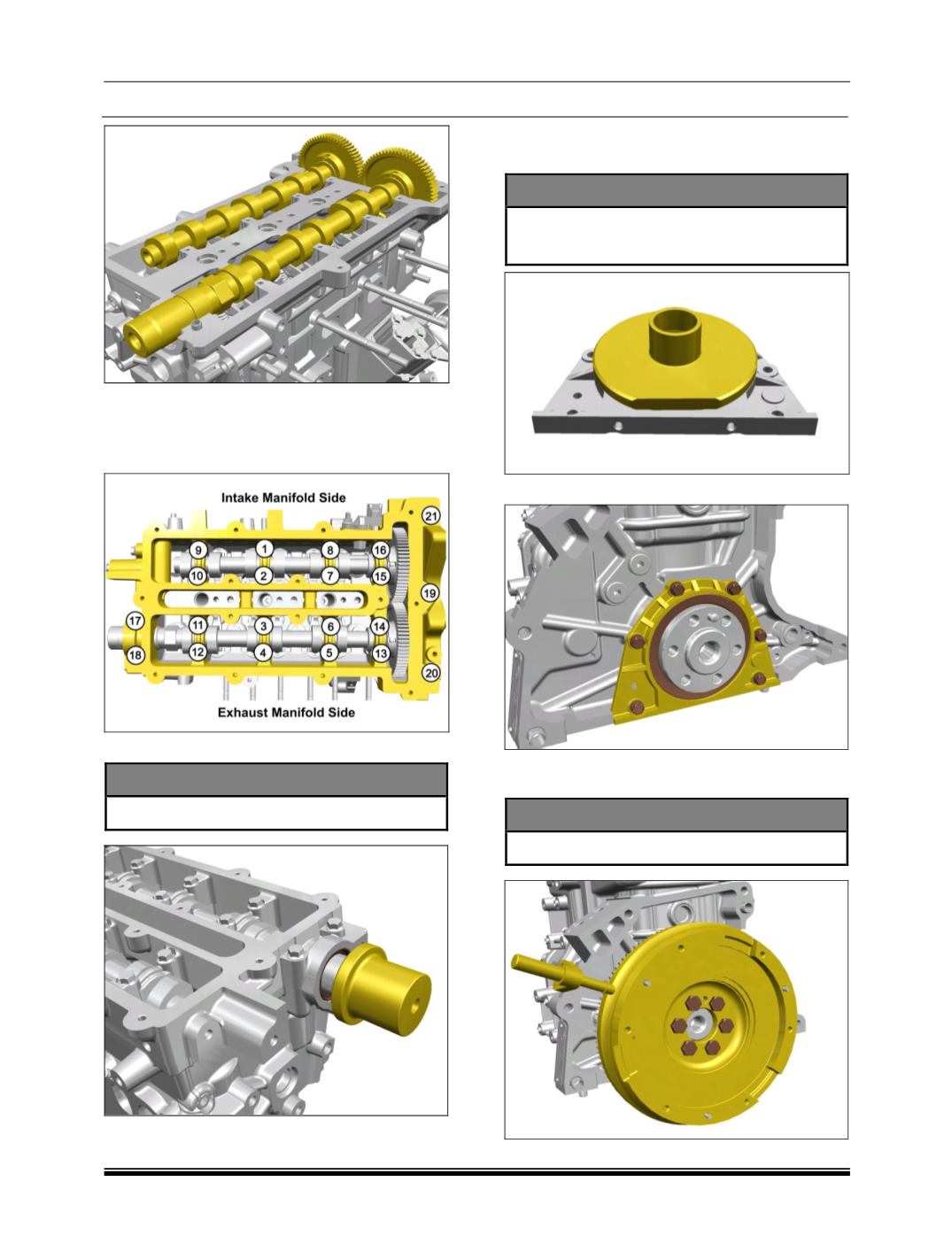

4. Apply sealant (LOCTITE 5188) on ladder

frame.

5. Install bearing frame by tightening the

mounting bolts in proper sequence.

6. Install oil seal of cam shaft using special tool.

SPECIAL TOOL



Drift (Camshaft Oil Seal) -:2654 5890 05 08

v. FITMENT OF TIMING BELT :

1. Install Rear cover oil seal using special tool.

SPECIAL TOOL



Drift crankshaft rear cover oil seal -:

2702 5890 06 08

2. Install crankcase rear cover with oil seal.

3. Install flywheel with mounting bolts. Lock the

flywheel by placing flywheel locking pin.

SPECIAL TOOL



Flywheel Locking Pin -:5401 5890 06 04
