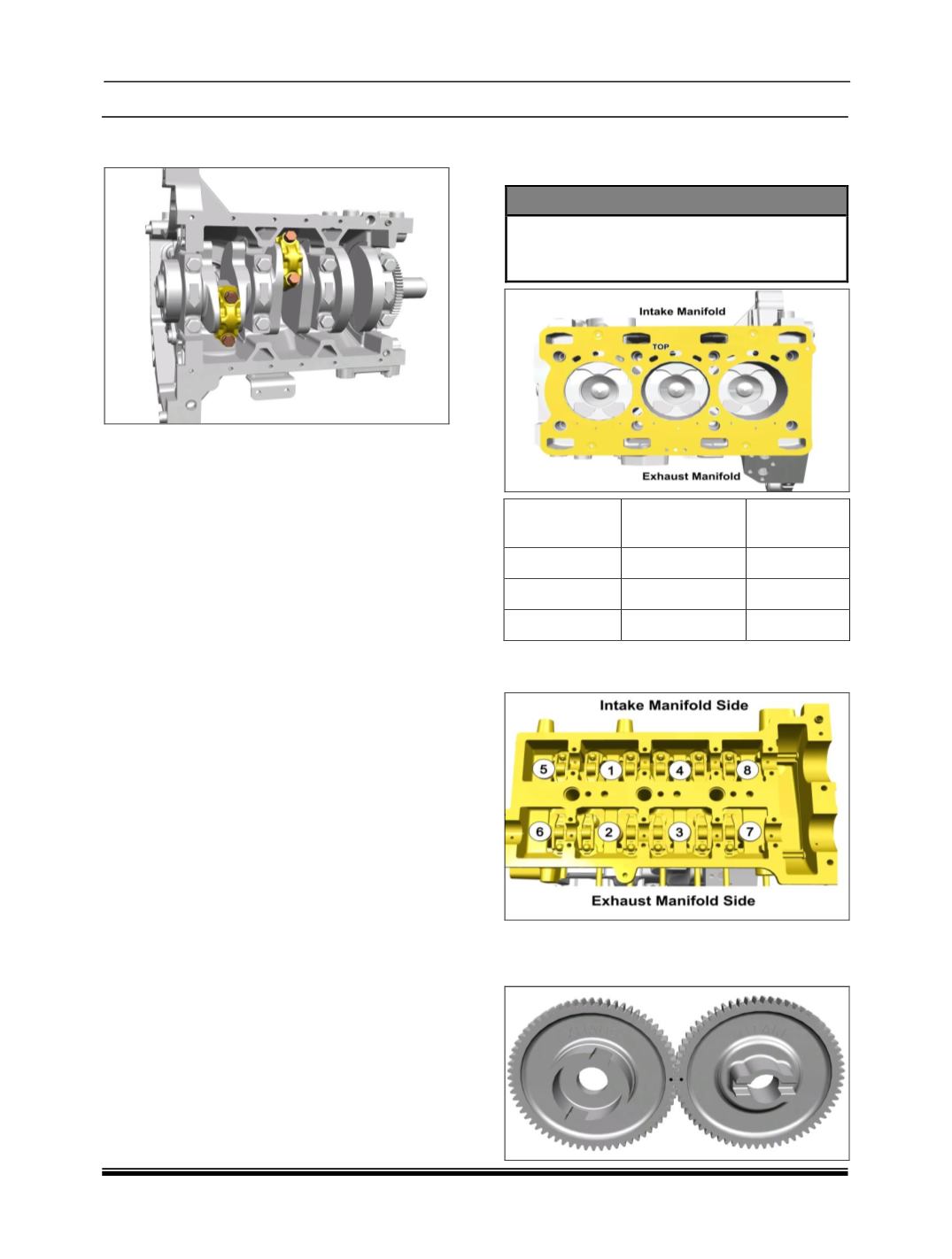

1.05L REVOTORQ ENGINE

132

6.

Install connecting rod bearing caps with

mounting nuts.

iv. FITMENT OF CYLINDER HEAD ON

CYLINDER BLOCK :

1. Place the Cylinder Head gasket as shown.

NOTE



Ensure that the "TOP" mark on the gasket

is facing towards the intake manifold side

of the block.

Piston

Projection MM

Gasket

Thickness MM

Identification

0.66 - 0.69

1.3

1 Notch

0.70 - 0.79

1.4

2 Notch

0.80 - 0.89

1.5

3 Notch

2.

Tighten the cylinder head mounting bolts from

the outer to inner, in

specified sequence

.

3. Install the exhaust and intake cam shaft by

aligning reference points on the gears as

shown.
