1.05L REVOTORQ ENGINE
129

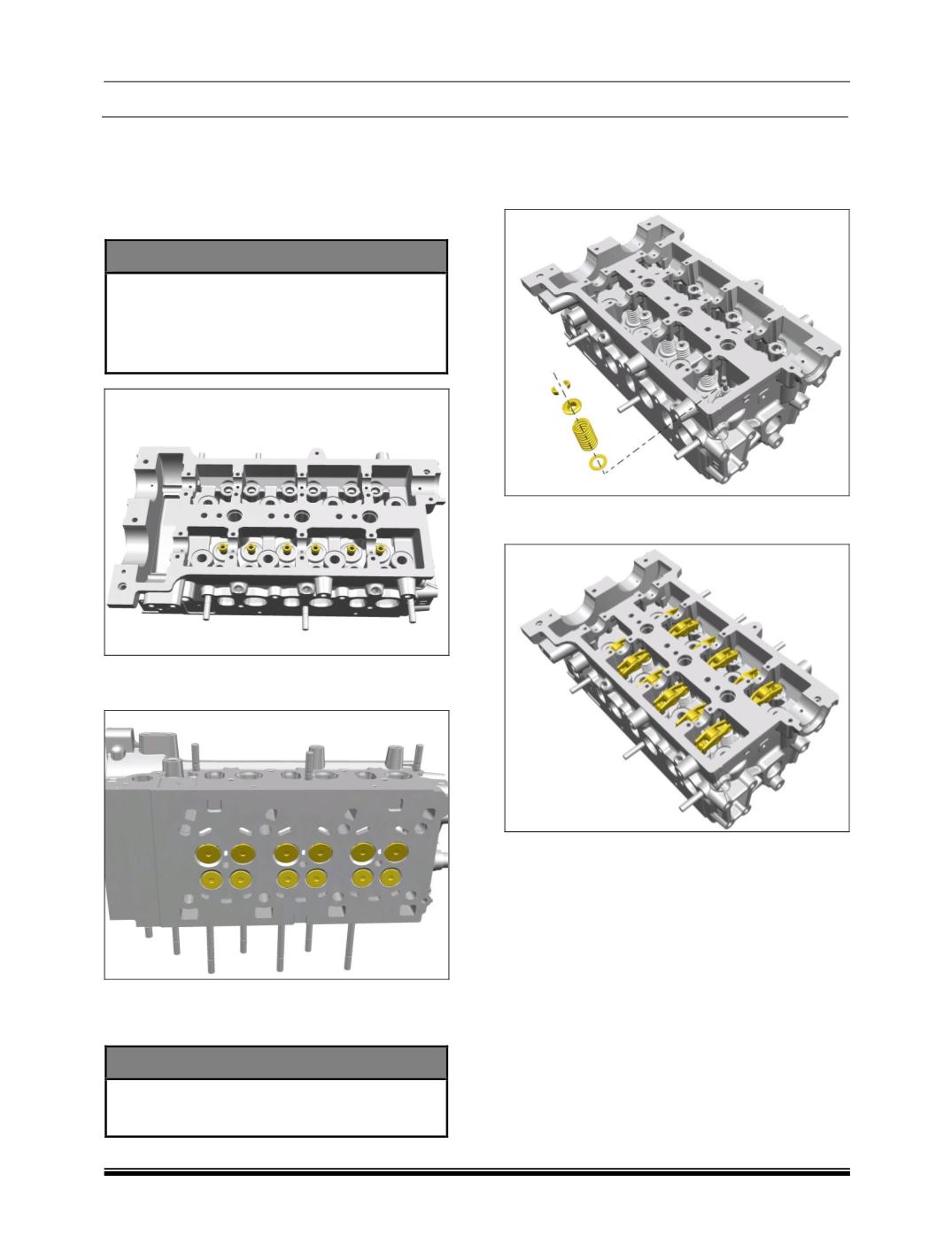

B. ENGINE ASSEMBLY :
i. FITMENT OF CYLINDER HEAD SUB-
ASSEMBLIES :
1. Fit the valve guide seal with the help of
special tool.
SPECIAL TOOL
Drift (Valve Guide Intake / Exhaust) -:
2868 5890 06 05
Spacer for fitment of Valve Guide along
with Drift - 2868 5890 06 06
2. Fit inlet and exhaust valve from bottom side.
3. Lubricate the valve stem and guide.
4. Fit the valve seats, valve retainers and using
special tool compress the valve springs and
place the spring lock halves.
SPECIAL TOOL
Valve Spring Compressor -:
2868 5890 06 02
5. The lock halves hold the spring retainer in
place when relieving pressure applied by the
spring compressor.
6. Repeat the same procedure for all valves.
7. Install the roller finger follower and hydraulic
lash adjuster assemblies.
