1.05L REVOTORQ ENGINE

134

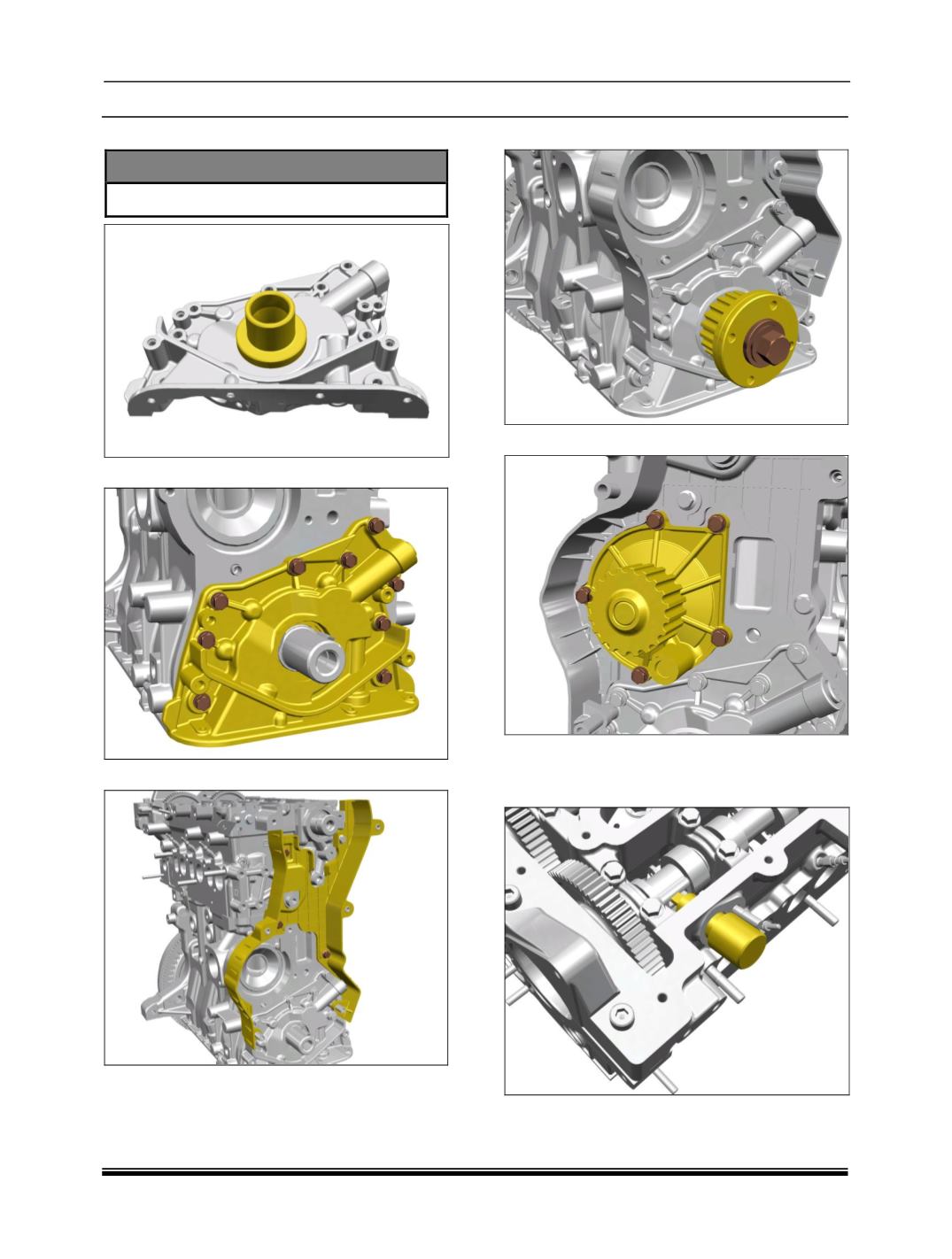

4. Install Pump Oil Seal using Special Tool

SPECIAL TOOL



Drift (Oil seal in Pump) -:5401 5890 06 02

5. Install Oil Pump assembly with oil seal.

6. Install back timing cover

7. Install the crankshaft gear.

8. Install Water Pump.

9. Remove flywheel locking pin.

10. Insert camshaft locking pin by rotating the

flywheel.
