TIAGO

1.05L REVOTORQ ENGINE

139

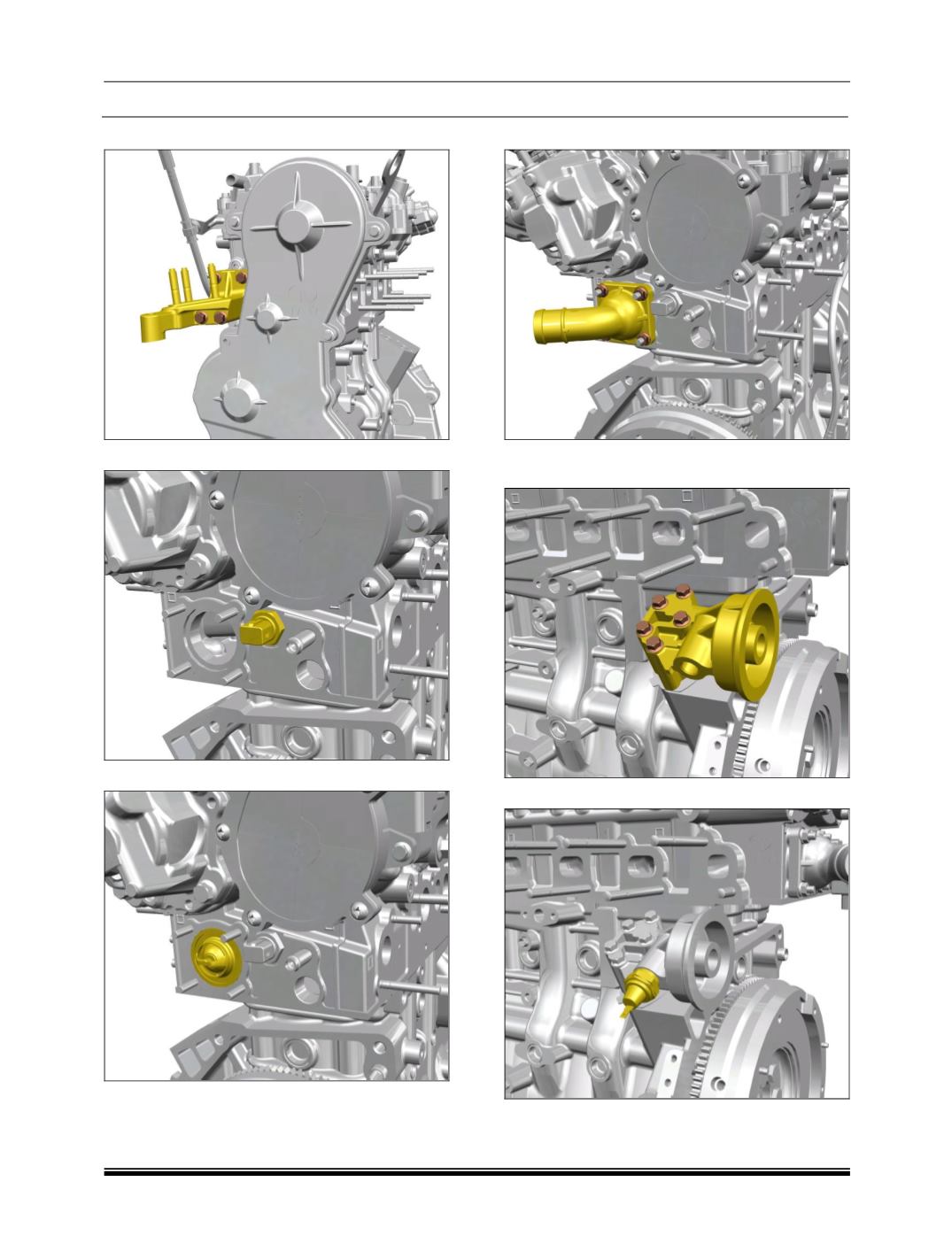

7. Install engine mounting bracket.

8. Install temperature sensor.

9. Install the thermostat assembly.

10. Install thermostat cover.

11. Install adaptor with gasket which is connected

between crankcase and oil cooler.

12. Install oil pressure switch sensor.
