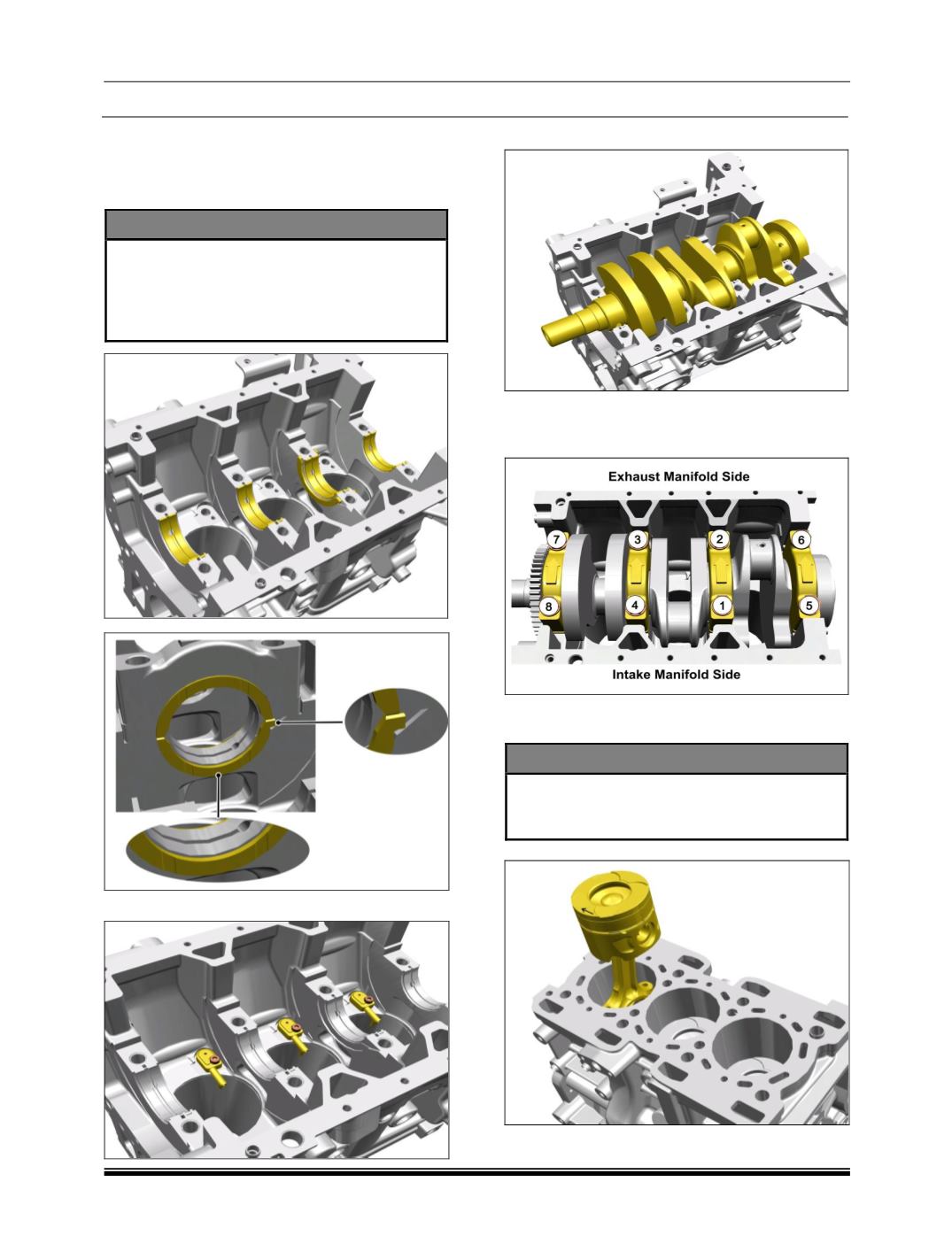

iii. FITMENT OF CYLINDER BLOCK SUB-
ASSEMBLIES :
1. Install Main Bearing Shells and Thrust
Washers.
NOTE
Ensure that upper thrust washer notch
should be perfectly aligned on cylinder
block groove and vertical grooves on the
thrust washer should be facing towards
crankshaft side.
2.
Install piston cooling nozzles.
3.
Install the Crankshaft into the cylinder block.
4.
Install Crankshaft Gear. Install
main bearing-
cap mounting bolts. Tighten the bolts as per
sequence mention below.
5.
Push the piston assemblies into the cylinders
using mallet.
NOTE
Ensure that the arrow mark on the piston
crown is towards the exhaust manifold side
and facing at Engine Front of the block.
