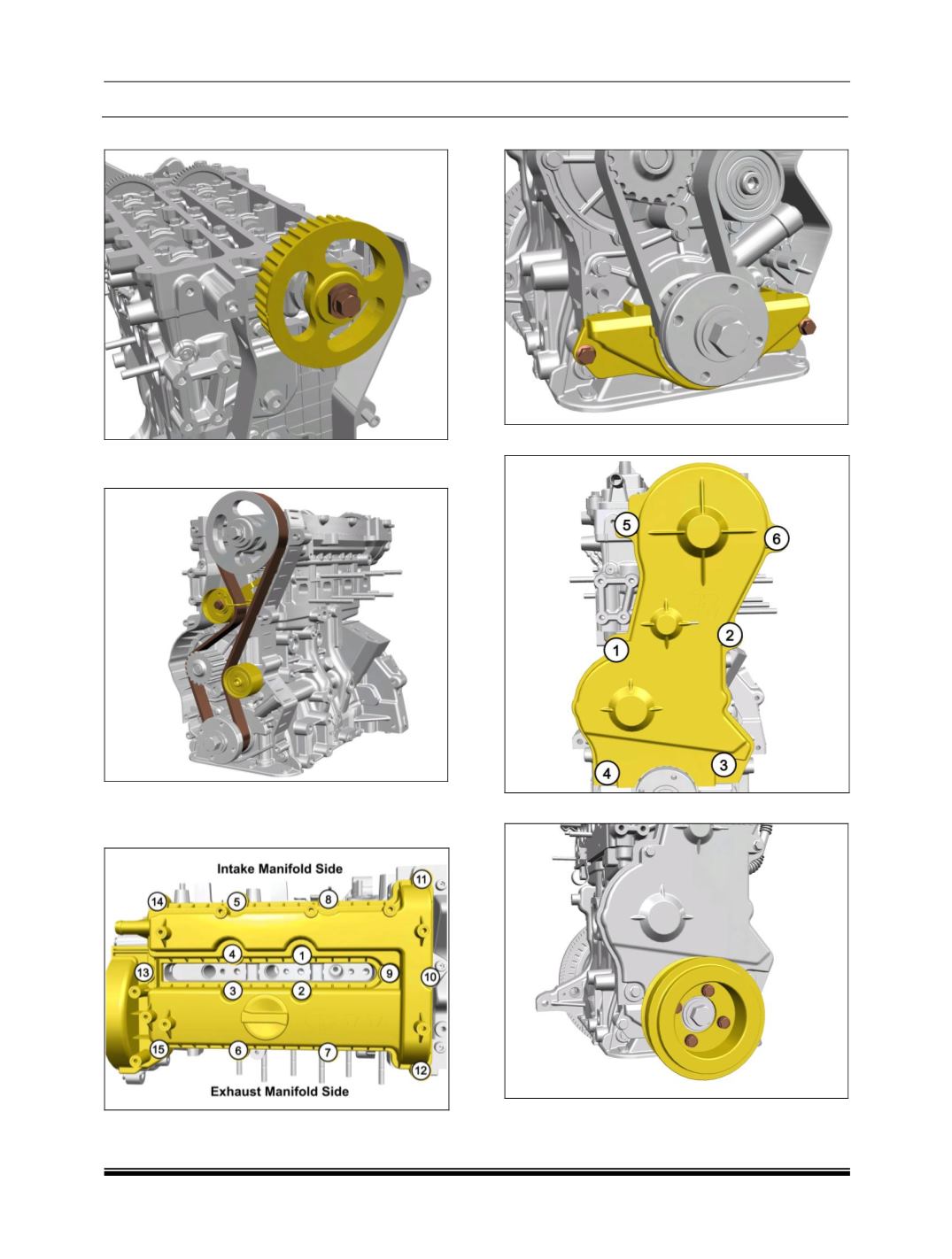

11. Install camshaft timing gear.

12. Install timing belt and tighten auto tensioner

and idler bolt. Increase the tension on belt.

13. Take out the camshaft locking pin. Install

cylinder head cover assembly. Tighten the

nuts in sequence as shown.

14. Install front cover bottom.

15. Install front timing cover.

16. Install the vibration damper pulley.
