1.05L REVOTORQ ENGINE

130

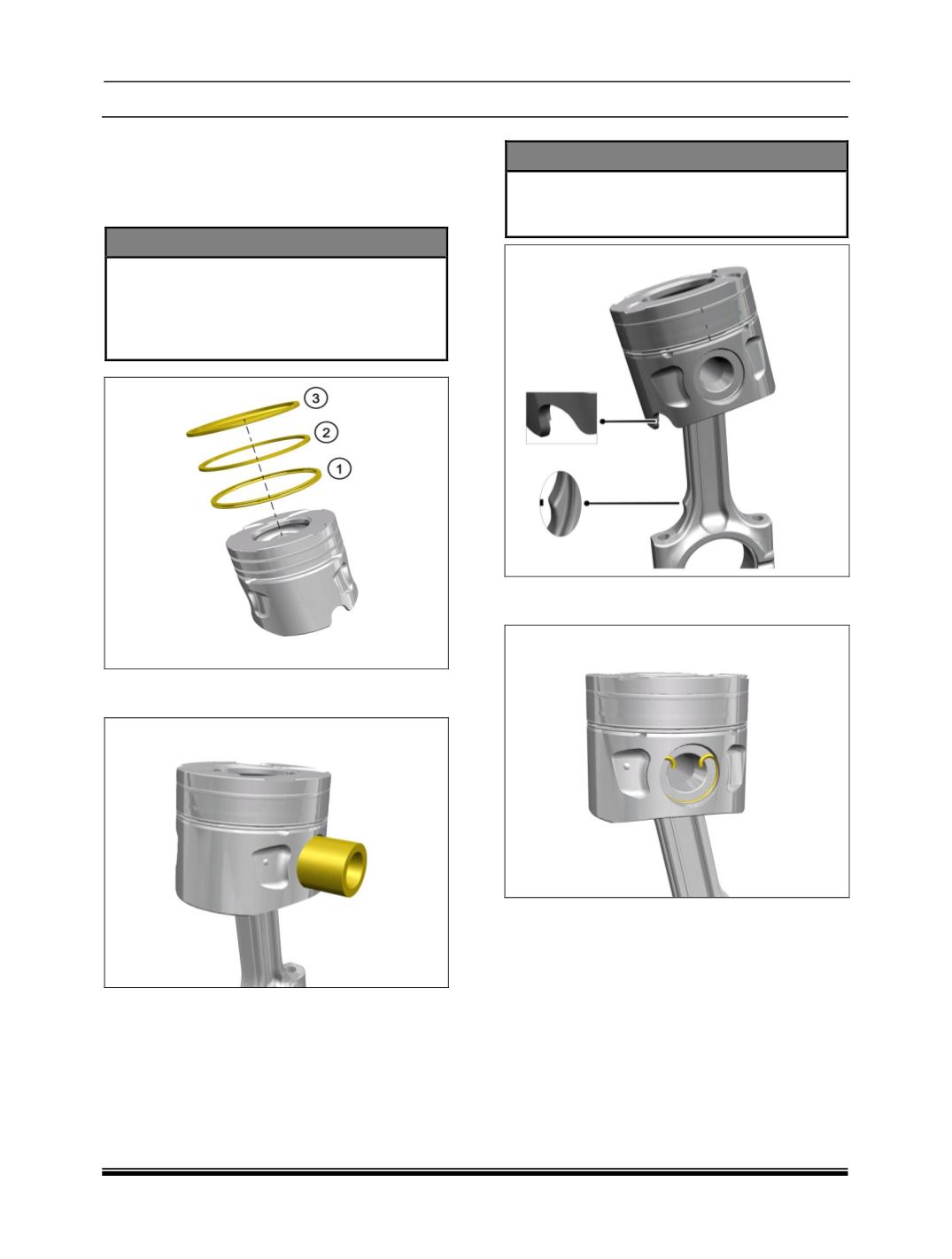

ii. FITMENT OF PISTON AND CONNECTING

ROD SUB-ASSEMBLIES :

1. Fit Piston Oil Ring (1), Piston Second Ring (2)

and Piston Top Ring (3) respectively as

shown.

CAUTION



The piston ring gap should not be inline

with each other while assembling on

piston.



Place the piston rings on the piston, such

that the ring gaps are 120

0

apart.

2. Install the Connecting Rod and Insert Piston

Pin.

NOTE



Ensure connecting rod notch is on the

piston skirt groove side while assembling

the piston connecting rod assembly.

3. Install Piston Pin Circlip from both side of

Piston Pin.
