1.05L REVOTORQ ENGINE

53

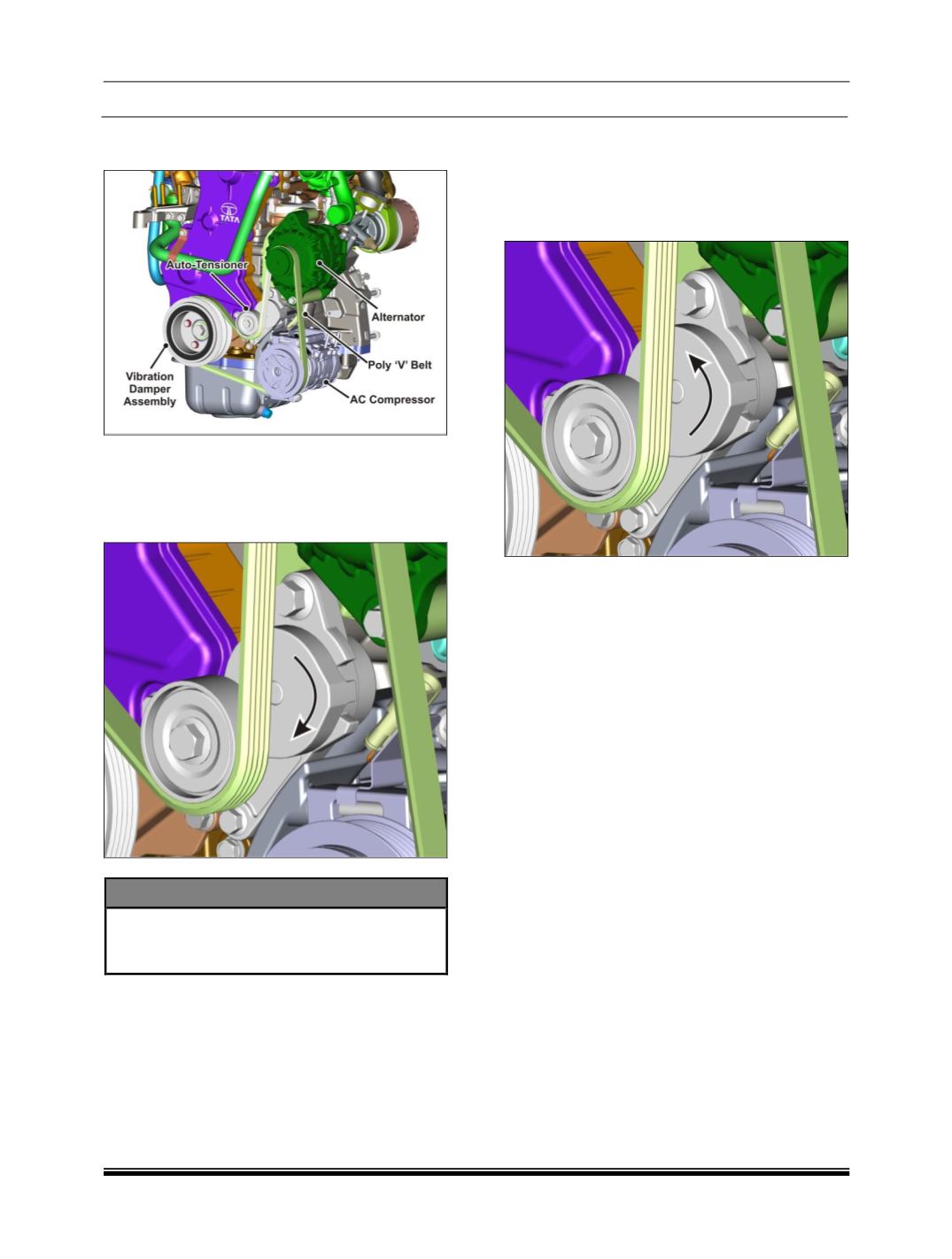

vii. AC COMPRESSOR, ALTERNATOR BELT

REPLACEMENT :



Removal :

1. Reduce the belt tension by rotating the

tensioner in clockwise direction (Tightening

direction of a RH threaded screw) and

remove the belt.

INSPECTION



Inspect the AC Compressor, Alternator belt

for wear, cracks and signs of failures.

Replace if necessary.



Installation :

1.

For fitment, first place the belt, and then

rotating it in the anti-clockwise direction

(Loosening direction of a RH threaded screw).

2.

Adjust the belt tension.
