1.05L REVOTORQ ENGINE

55

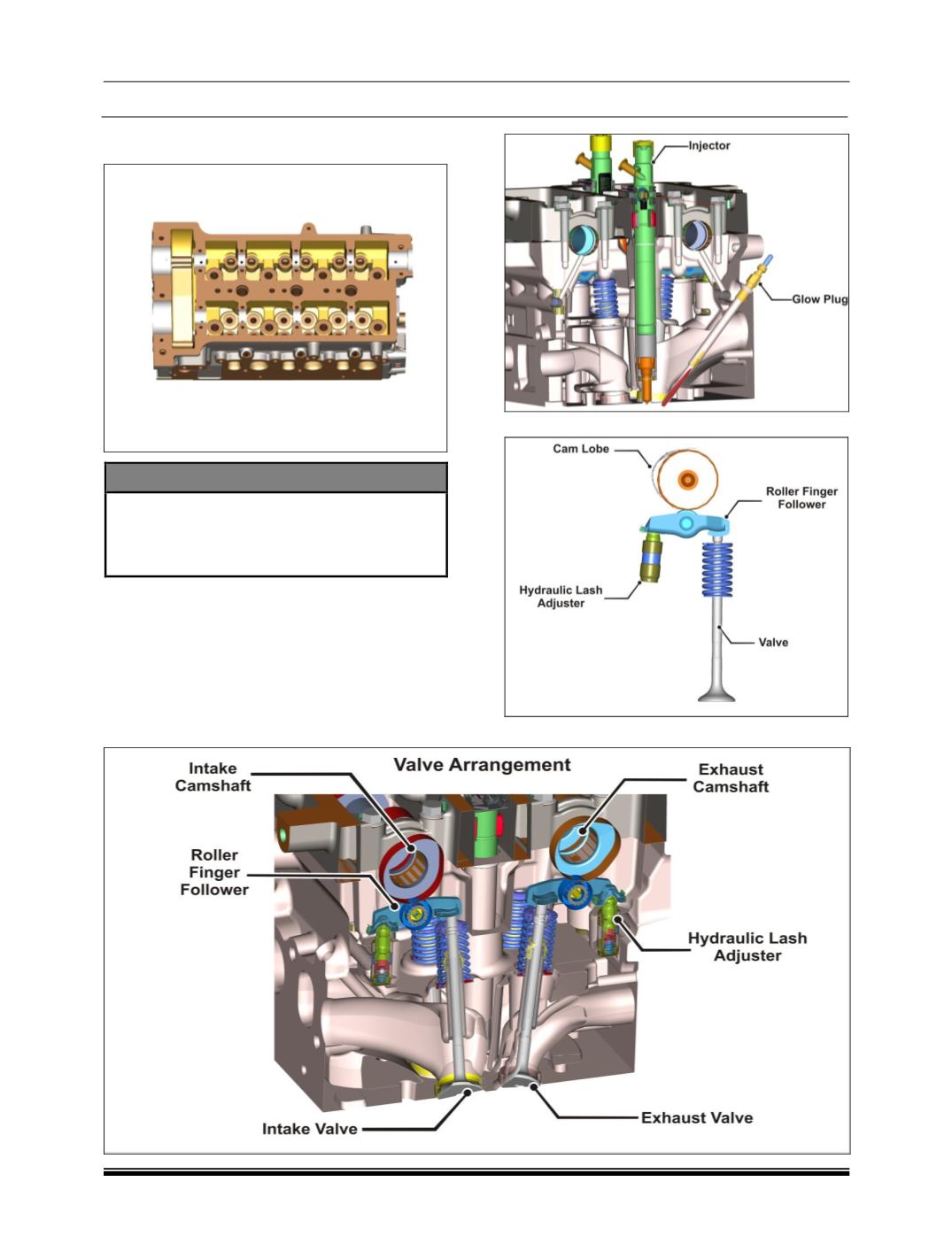

C. CYLINDER HEAD :

NOTE



The mating surfaces of the cylinder head

are not machinable. If the surface is

warped, uneven, or damaged otherwise,

replace the cylinder head.

1. Using a straight edge and feeler gauge, check

evenness of cylinder head parting surface with

crank case. If unevenness exceeds specified

values, replace cylinder head.

2. Permissible unevenness of cylinder head

mating surface-0.030 mm

(Length wise).

3. Permissible unevenness of cylinder head

mating surface-0.015 mm

(Cross wise).
