1.05L REVOTORQ ENGINE
52

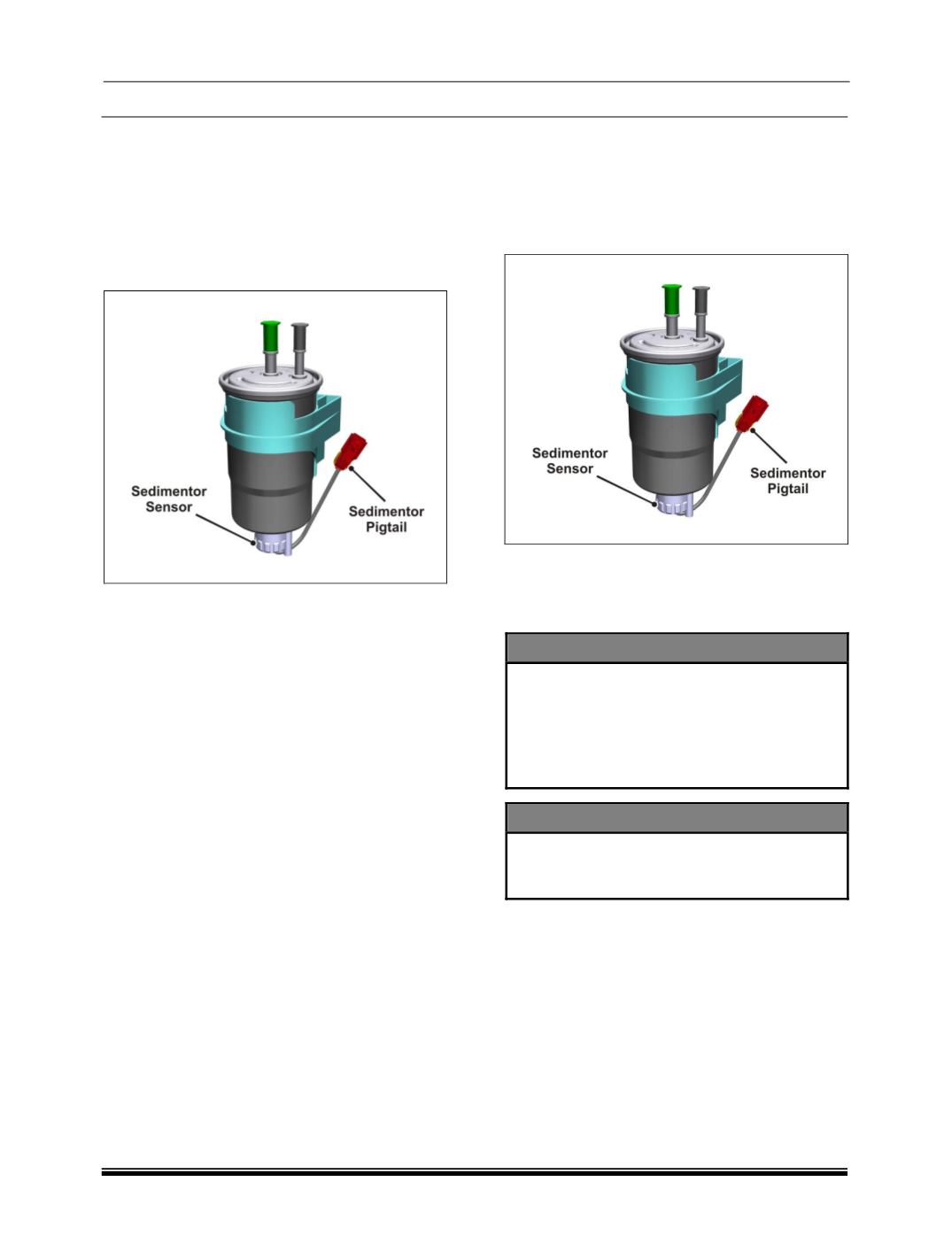

v. DRAINING WATER FROM PRE-FILTER :
1. Stop the engine allow the pressure to
stabilize.
2. Disconnect the sensor pigtail and also
disconnect one of the fuel lines either inlet or
outlet.
3. Keep a suitable container to collect the
drained water.
4. Rotate the pre-filter sensor in anti-clockwise
direction for about 2 turns and allow
approximately 120cc of diesel to drain and
then tighten the sensor.
5. Connect the fuel line and pigtail that was
disconnected in step 2.
6. Drain the water from the fuel filter bowl in
every service.
vi. PRE-FILTER REPLACEMENT :
1. Disconnect the sensor pigtail.
2. Keep a suitable container below the sensor to
collect the diesel that will drain.
3. Remove the sensor by unscrewing it in anti-
clockwise direction.
4. Disconnect the inlet and outlet fuel lines as
indicated in the figure below.
5. Press the vertical snap fit lug and push up the
pre-filter assembly.
NOTE
It is not recommended to remove
sedimentor bottle from plastic bracket. The
whole assembly pre-filter with bracket to be
replaced.
Pre-filter (without sensor) to be replaced at
45,000 km or 36 months.
WARNING
The pre-filter may still contain diesel in it,
which may get accidentally spilled onto the
operator if it is not handled property.
Fitment :
For fitment follow the reverse order of
removal.
