1.2L REVOTRON ENGINE
102

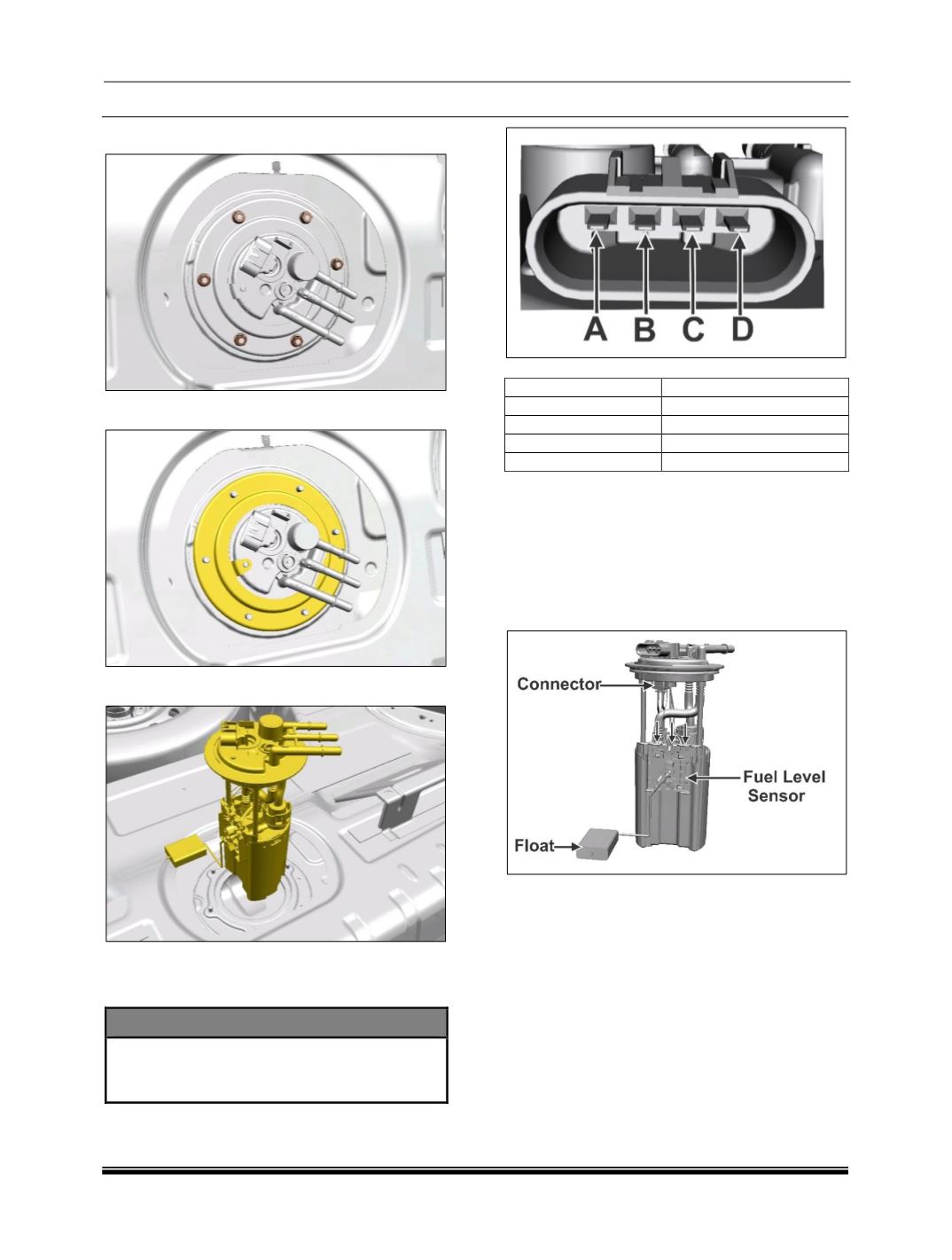

5. Loosen and remove the 6 mounting nuts.
6. Remove the locking ring.
7. Lift the in-tank pump carefully out from the tank.
FITMENT
Follow the reverse order of removal for fitment.
INSPECTION
Use multimeter to confirm that the resistance of
the fuel level sensor changes with the level of
float position.
Pin No
Function
A
Fuel Pump (-)
B
Fuel Sensor (+)
C
Fuel Sensor Ground
D
Fuel Pump (+)
Measure the resistance in pins B and C. refer next
page for values at different heights of the float.
FUEL LEVEL SENSOR REMOVAL
1. Remove the tank unit.
2. Disconnect the connector.
3.
Remove the fuel level sensor by releasing the
snap.
