TIAGO

1.2L REVOTRON ENGINE

100



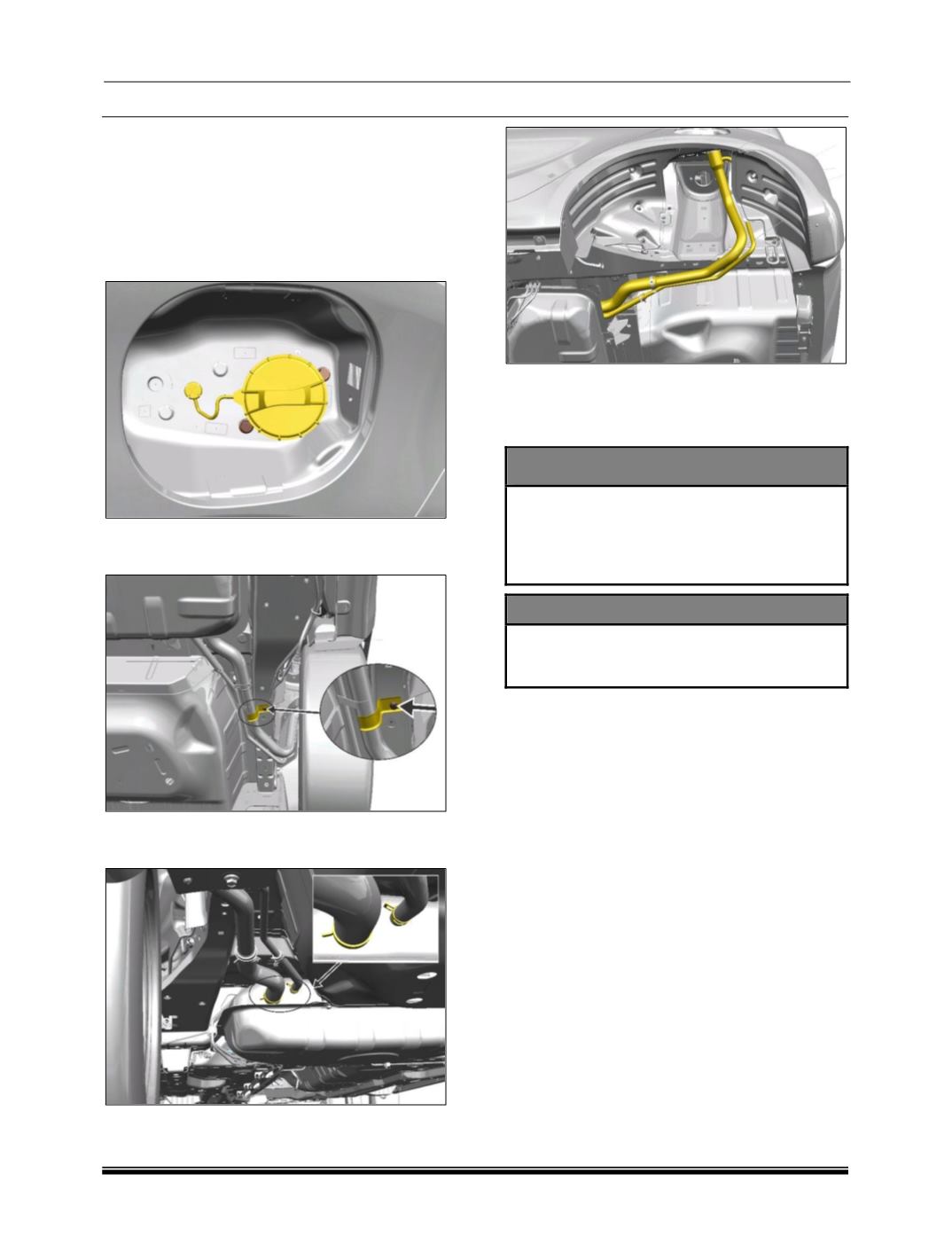

FUEL FILLER AND BREATHER HOSE

REMOVAL

1. Place the vehicle in a 2 poster lift.

2. Refer precautions and relive fuel pressure.

3. Remove fuel filler cap by removing fuel filler

mounting hex flange bolts.

4. Remove the hose holding bracket by

unscrewing the fastener.

5. Remove the fuel filler and breather hose clamps

from tank side.

6. Take out fuel filler assembly along with breather

from body shell.

INSPECTION

Check if dust has blocked the 2 way cap, change

cap if found defective.

WARNING



A small amount of fuel may be released after

fuel lines are disconnected. To avoid the

chance of injury, cover the pipe to be

disconnected with cotton cloth. Do not use

cotton waste..

CAUTION



To avoid damage to vapour hoses while

disconnecting, slide back the clamps then

twist the lines as you pull.

FITMENT

Follow the reverse order of removal for fitment.
