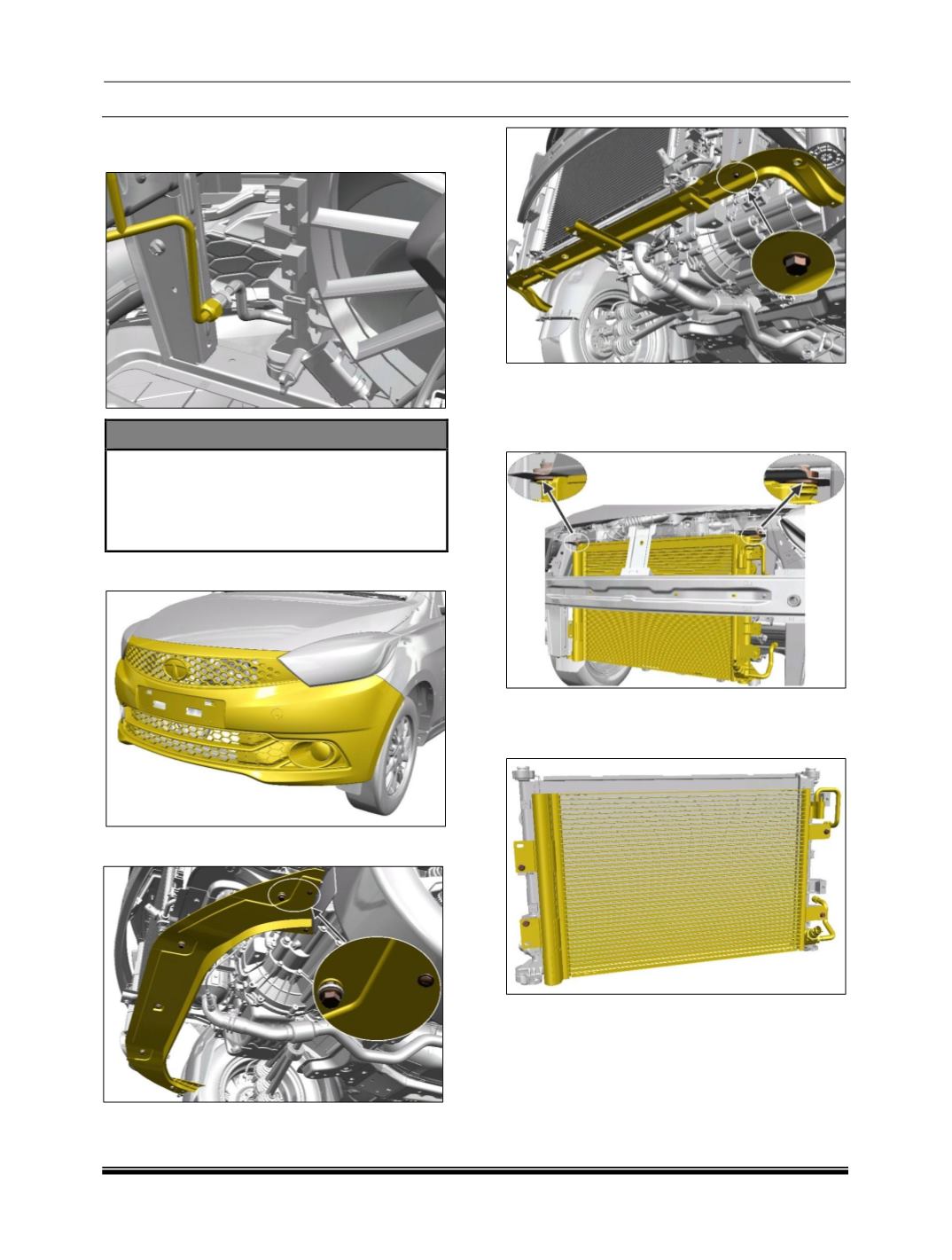

6. Loosen and remove the bolt and disconnect the

refrigerant outlet pipe to condenser.

CAUTION



Never leave the condenser lines open

immediately cover them with caps,

otherwise the desiccant which is in-built in

the condenser may absorb the moisture

from surrounding air and get contaminated

7. Remove front bumper.

8. Loosen and remove the splash guard fasteners

9. Loosen and remove the fasteners of radiator

bottom mounting member.

10.Tilt the radiator inwards and down the radiator

and condenser assembly from the grommet on

the top mounts, both LH and RH

simultaneously.

11.After removing the radiator and condenser

assembly out, separate the condenser from the

radiator, by removing fasteners.

FITMENT

For fitment follow the reverse order of removal.

Tighten the following fasteners to the

recommended torque.
