TIAGO

1.2L REVOTRON ENGINE

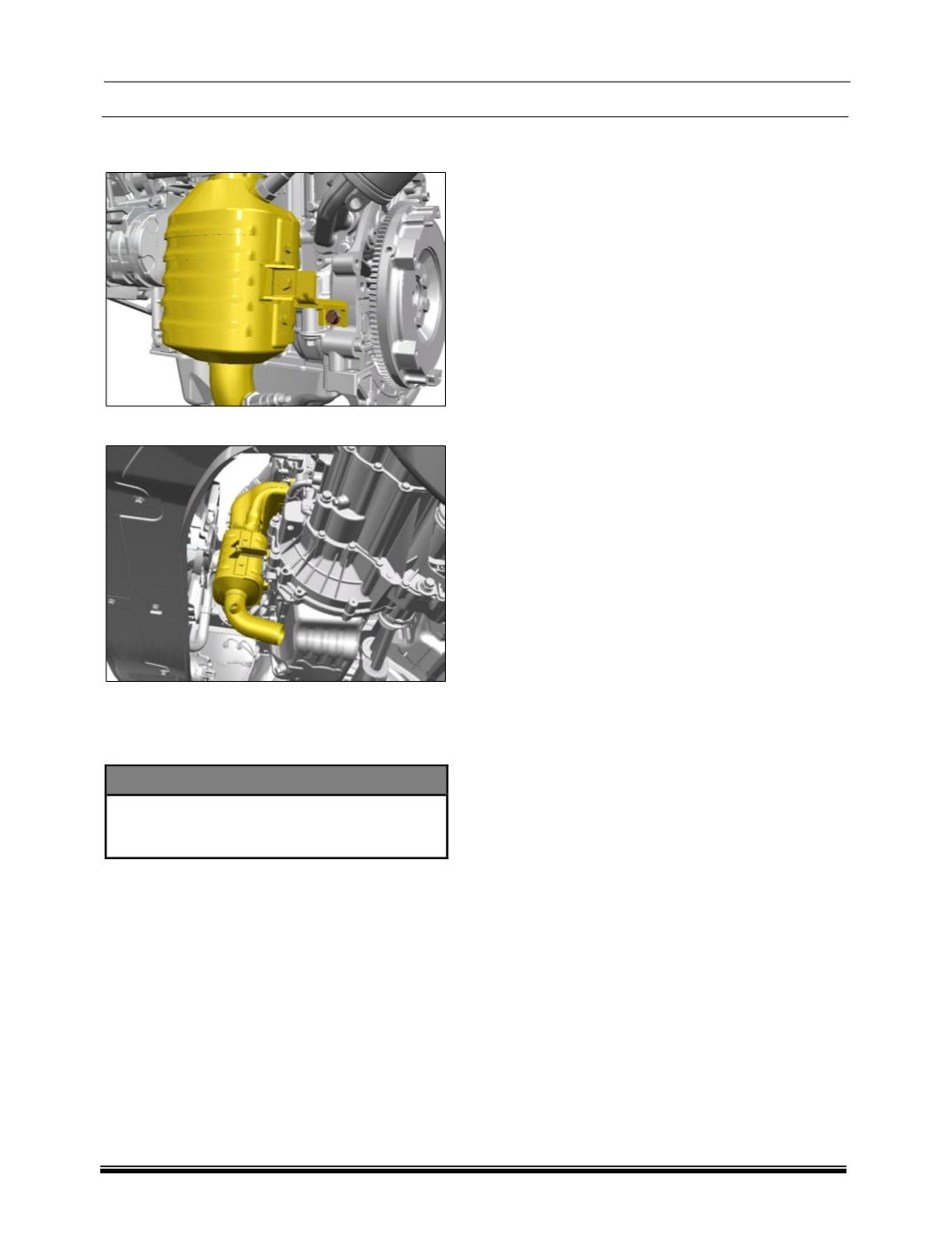

6. Loosen and remove CCC mounting bracket

bolts from both sides. ( one side each)

7. Remove the CCC.

FITMENT

For fitment follow the reverse procedure of

removal.

NOTE



Use new gaskets every time while fitment

and tighten nuts and bolts to specified

torque.

F. FUEL SYSTEM

PRECAUTIONS

Before attempting any service on fuel system,

following precautions should be always followed

for personal safety and to avoid system damages.

a) Disconnect negative cable at battery.

b) Do not smoke, and place ‘NO SMOKING” sign

near work area make sure to have fire

extinguisher handy.

c) Make sure to perform work in well ventilated

area and away from any open fire/flames.

d) Wear Safety glasses

e) Small amount of fuel may drip after the fuel lines

are disconnected. In order to reduce the risk of

personal injury, cover the pipe/ hose ends with

suitable plugs with no rust or contamination.

f) After servicing, make sure that the fuel hoses

and clamps are properly connected.

g) After servicing, check for fuel leakages at fuel

hose joints.

h) Relieve the fuel pressure from the system

before disconnecting any fuel lines especially

high pressure lines. If pressure is not relieve the

fuel may splash on the technician and the

components which is dangerous.

PRESSURE RELIEVING PROCEDURE

1. Remove the fuel filler cap to relieve the fuel

vapour pressure.

2. Disconnect the fuel delivery line from the tank

unit.

3. Start the engine and allow the engine to stall.

4. Turn off the ignition switch and disconnect the

battery negative terminal.



FUEL RAIL REMOVAL ON VEHICLE

For fuel rail removal procedure refer on vehicle

injector removal procedure.
