TIAGO

1.2L REVOTRON ENGINE

105

G. COOLING SYSTEM



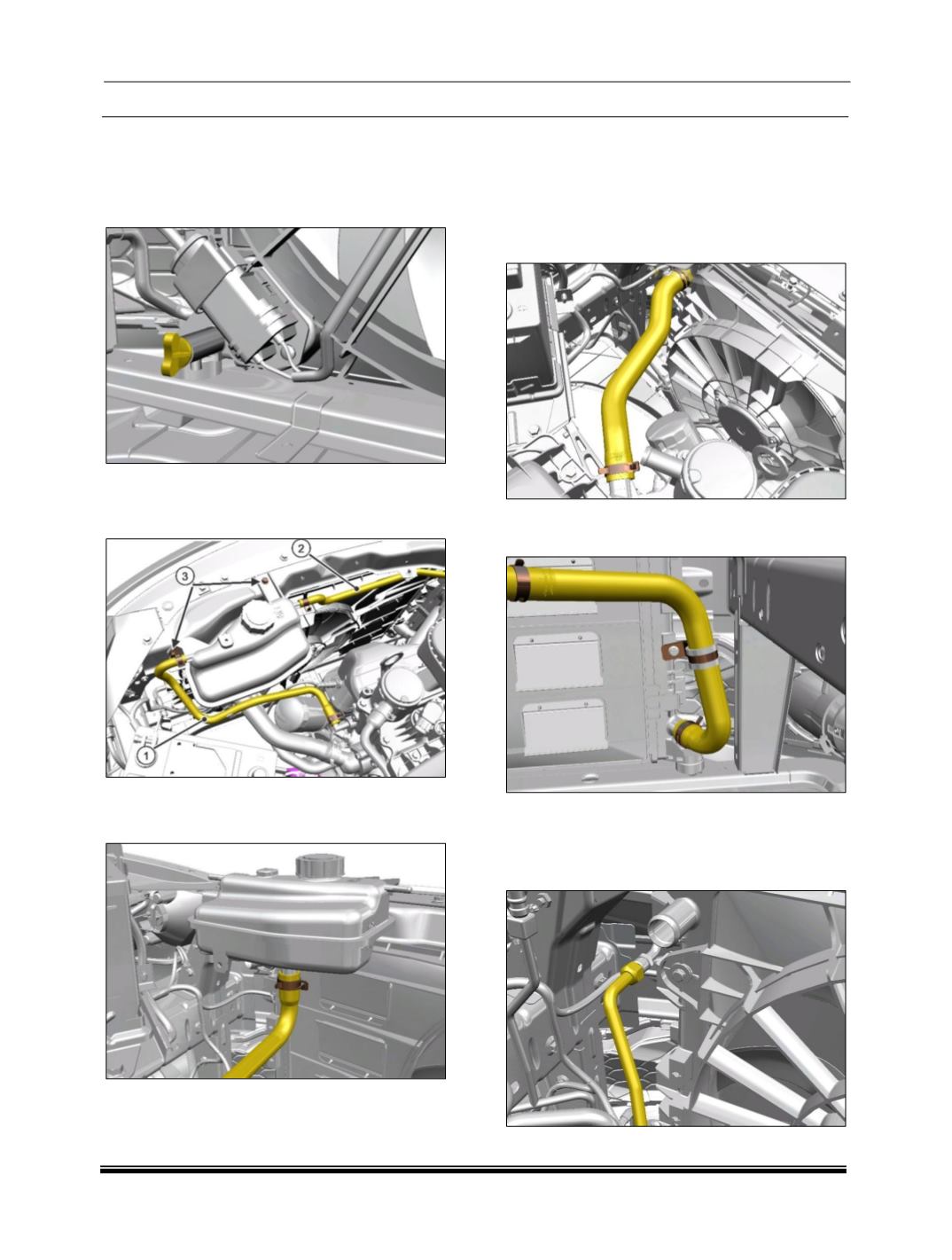

COOLANT TANK REMOVAL

1. Drain the coolant,

(For procedure refer “Coolant

Replacement” in Engine maintenance section)

Disconnect the vent tube

(1),

the degassing tube

(2)

and loosen and remove the Coolant tank

mounting bolt

(3).

2. Lift the coolant tank and disconnect the hose

clamp and remove the bottom hose and take out

the coolant tank.

FITMENT:

For fitment follow the reverse order of removal.



RADIATOR REMOVAL

1. Drain the coolant and remove the Coolant tank.

(For procedure refer “Coolant replacement” in

Engine maintenance section)

2. Disconnect the radiator top hose at radiator end

by removing spring band clamp.

3. Remove the bracket and spring band clamp of

bottom hose at the thermostat end.

4. Discharge the refrigerant using standard

recovering equipment.

5. Loosen and remove the bolt and disconnect the

refrigerant inlet pipe to condenser.
