1.2L REVOTRON ENGINE
104

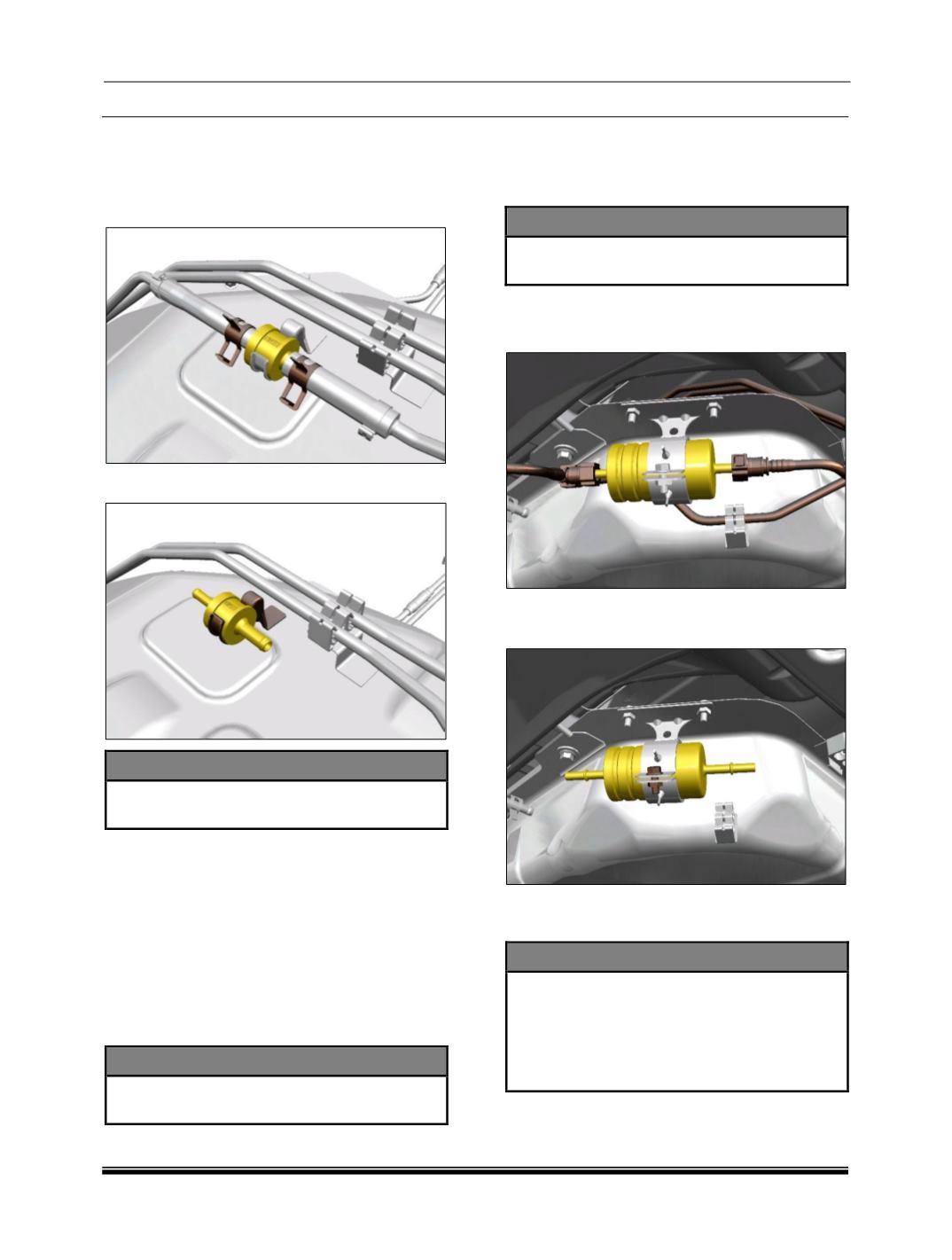

TANK PRESSURE VALVE (TPV)
REMOVAL
1. Remove the tank first.
2. Loosen the clamp and disconnect the pipe.
3. Remove the TPV from the clamp.
CAUTION
Be careful not to damage the vapour line
pipe. If found damaged replace it.
INSPECTION
1. Check tank pressure valve for crack or damage.
Replace if any damage is found.
2. When air is smoothly blown from the tank unit
side it should pass through the valve.
3. Similarly if air is smoothly blown from the open
end side it should pass through the valve.
4. If air does not pass through valve in step 2 or
hard blows are required in step 3, replace tank
pressure valve.
WARNING
Do not suck air through tank pressure valve.
Fuel Vapour
inside
the valve is harmful.
FITMENT
1. Fit the TPV in the clamp such that the open side
(orange side)
faces the rear of the vehicle.
2. Connect the vapour line to the Tank unit side
(black side)
and fix the clamp.
CAUTION
Do not kink/pinch or twist hose when they
are routed.
FUEL FILTER
1. Remove the all pipe connections.
2. Loosen the clamp fastener and remove the
filter.
FITMENT
Follow the reverse order of removal for fitment.
CAUTION
The fuel filter should be replaced as
recommended in the service schedule. If
this is not done, it may result in impurities or
particles entering the High pressure system
causing damage to the Fuel Injection
components.
