ARIA

ENGINE

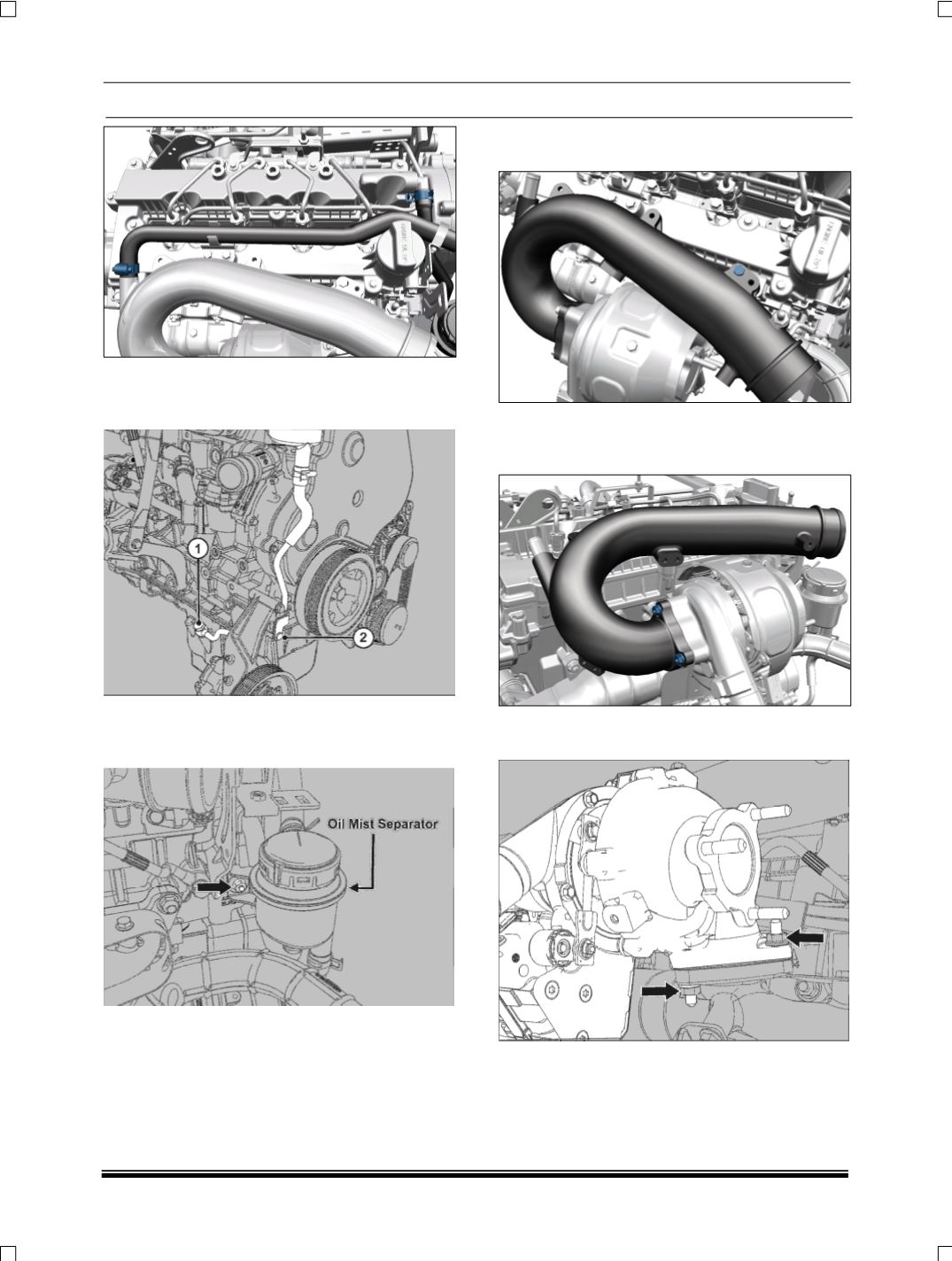

20.Loosen the banjo bolt

(1),

hose bracket

(2) to

separate the pipe between oil mist separator and

oil sump.

21.Loosen and remove the both nut an bolt of oil

mist separator mounting bracket and take the oil

mist separator assembly along with hoses

22.Loosen and remove one mounting bolt of sup-

porting bracket for turbocharger intake pipe.

23.Loosen and remove three mounting nuts between

air intake pipe and turbocharger then take out the

intake pipe from engine.

24.Remove the turbocharger.

(For procedure refer

turbocharger removal in exhaust system section)

25.Loosen and remove mounting bolts and take out

both the heat shields of exhaust manifold.
