ARIA

99 / 310

ENGINE.
53

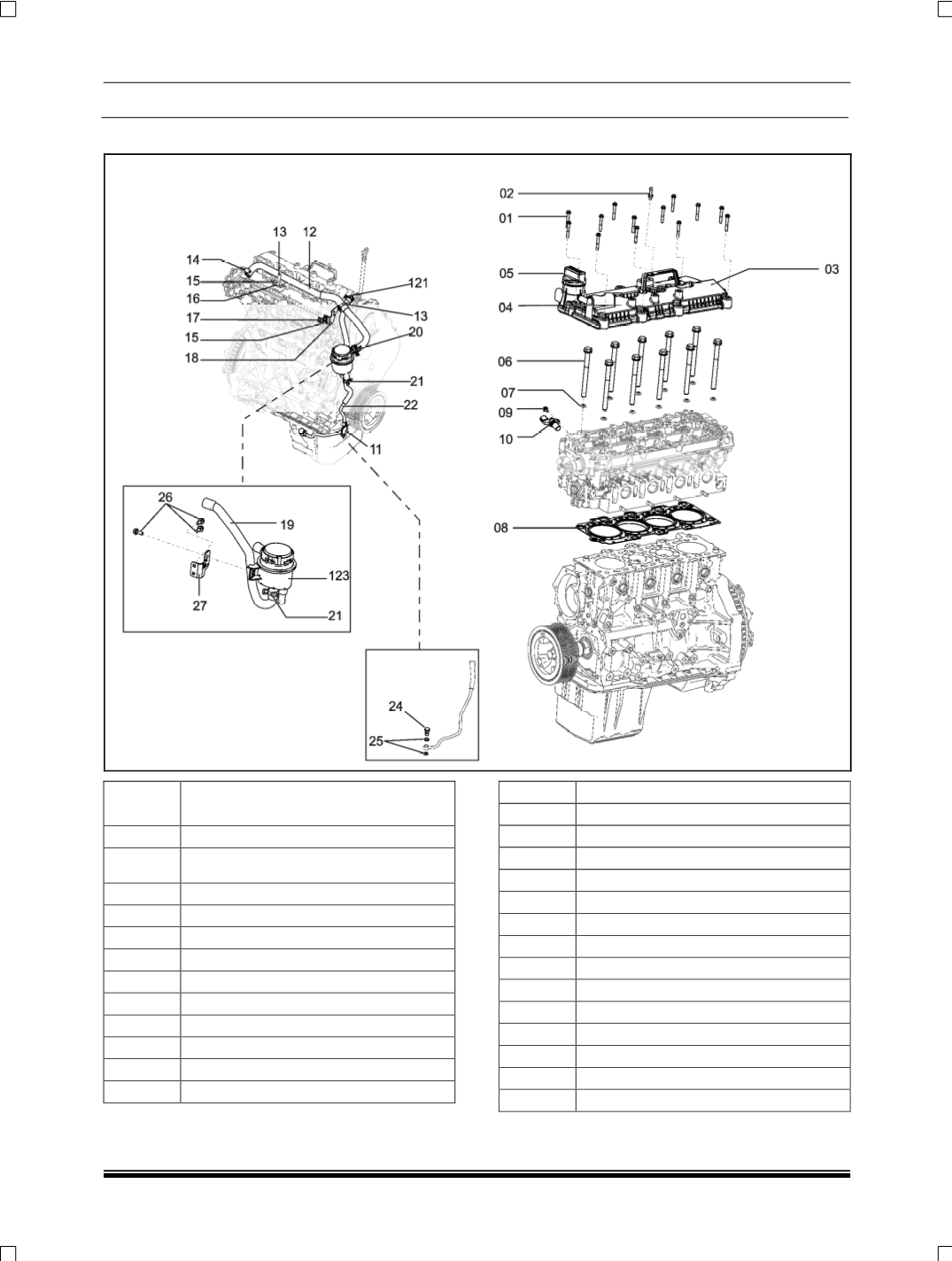

EXPLODED VIEW
. DESCRIPTION
01 Hexagonal flange bolt M6x40
02
Ball head pin (Engine cover mount-
ing)
03 Bracket rear engine cover mounting
04 Assembly cylinder head cover
05 Oil filler cap
06 Hexagonal bolt
07 Washer (Cylinder head bolt)
08 Gasket cylinder head
09 Bolt M6 X 10
10 Cam sensor
11 Support Bracket (OMS oil return)
12 Hose(OMS To Tc Inlet Pipe)
13 Pipe Clip
14 Hose Clamp
15 Hex Fl Scr M6X10
16 Pipe Clip (Hose OMS To TC Inlet)
17 Clamp Accelerator Cable
18 Bracket (Hose OMS To TC Inlet)
19 Hose (Cyl. Head cover to OMS)
20 Spring Band Clamp Form A 12X27D
21 Spring. band clamp 22DX12W
22 Assembly Pipe(OMS Oil Return)
23 Oil Mist Separator (OMS)
24 Pipe Union Bolt10 M14X1.5
25 Sealing Washer 14X20
26 Hex Fl Scr M6X16
27 OMS Mounting Bracket
