2.1.3. 2 CYLINDER HEAD

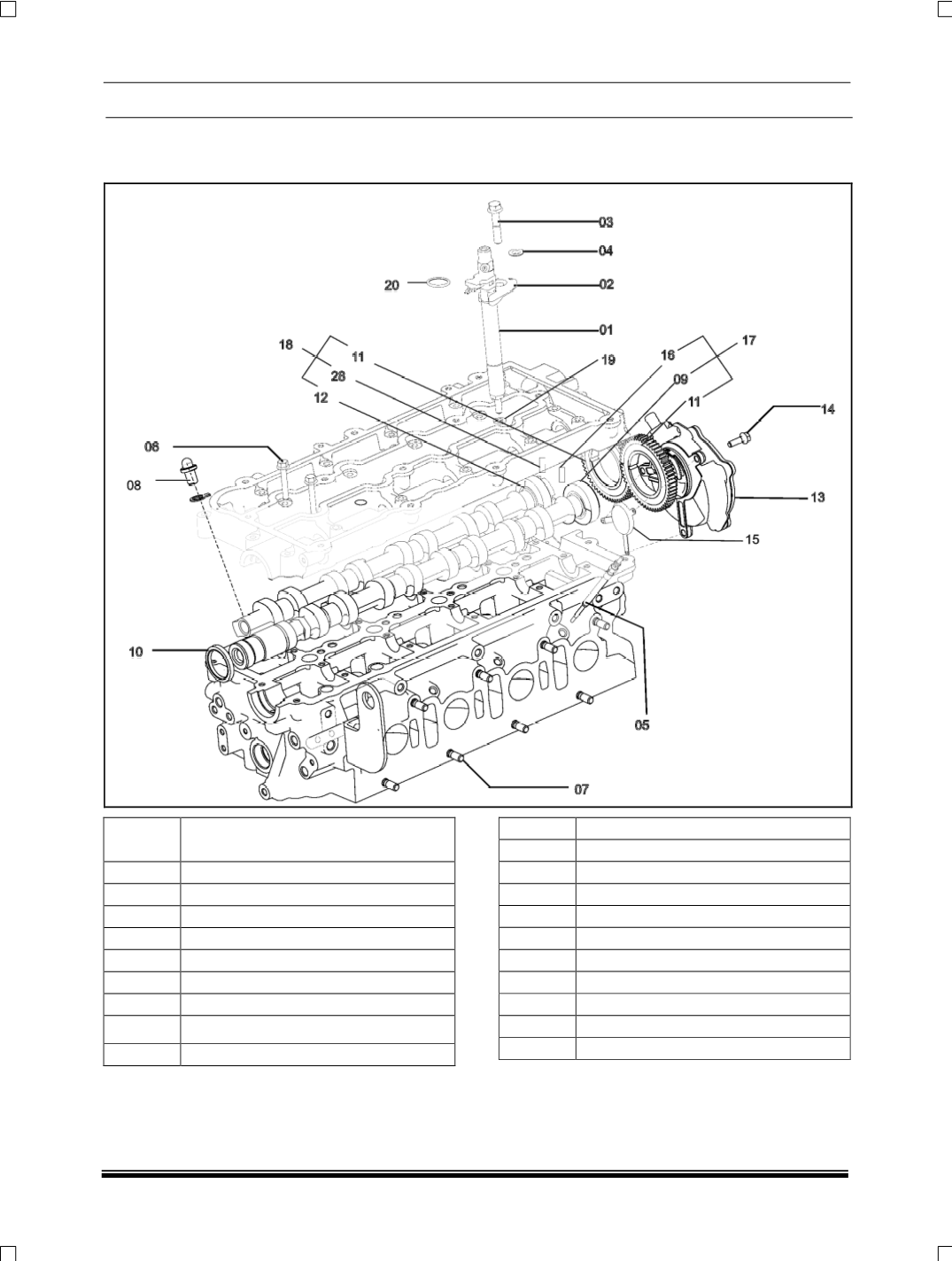

A. EXPLODED VIEW
SR. NO.
DESCRIPTION
01
Assembly injector
02
Injector claw
03
Hex bolt m8x40 (injector claw)
04
Spherical Washer 8.4
05
Glow plug
06
Hexagonal flange bolt M6x40
07
Stud CM8x25
08
Pin
(Injector claw)
09
Camshaft
(Intake)
10
Oil seal
(Camshaft)
11
Gear camshaft
(Rear)
12
Camshaft
(Exhaust)
13
Camshaft driven vacuum pump
14
Hexagonal flange screw M6x20
15
Gasket
(Vacuum pump)
16
Cylindrical pin 4M6x8
17
Assembly camshaft
(Intake)
with pin
& gear
18
Assembly camshaft
(Exhaust)
with
pin & gear
19
Washer
(For Injector)
20
`O' ring
(For Injector)
