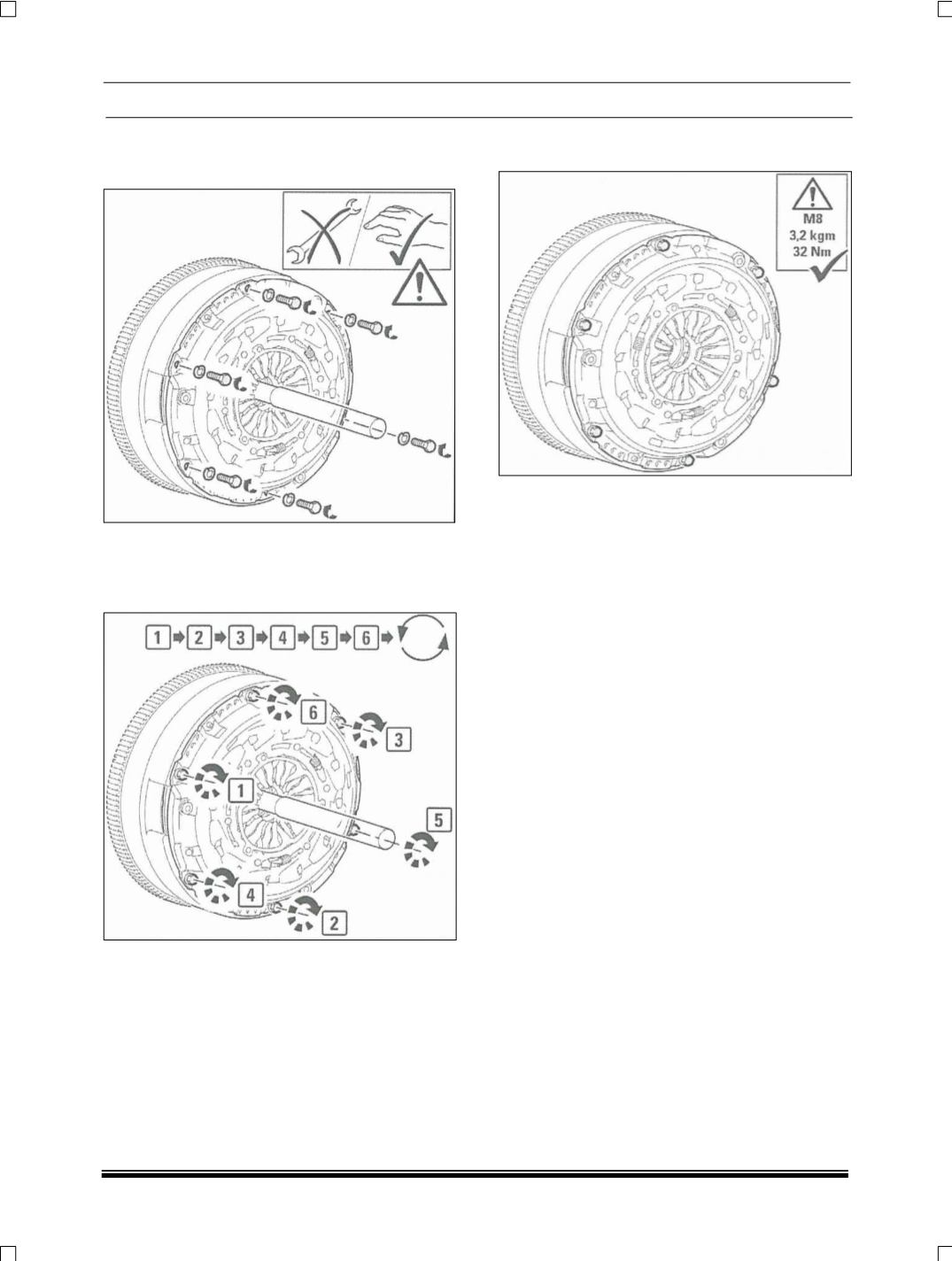

5. Screw in clutch mounting screws M8x12 – 10.9
along with B8 spring washer for SAC
mounting.
6. Aligning mandrel in position, tighten only two
rounds of each screw at a time as per
sequence shown & repeat the sequence till full
tightening.
7. Tighten these screws in the same sequence to
3.2 kgm.
8. Ensure that there is no gap between SAC
cover & flywheel at 6 mounting locations.
NOTE
•
Do not mix clutch mounting bolts with other
fasteners. Do not use longer or shorter screws.
Longer screws may not tighten the clutch at all.
Shorter screws will not provide enough threads
to achieve desired tightening.
•
While tightening clutch mounting screws check
aligning mandrel for continuous free sliding to
ensure concentric installation of clutch disc
which will avoid trouble during installation of
gearbox.
