CLUTCH
22
! CAUTION
Do not clean the clutch disc with cleaning solvent.
A. REMOVAL OF SELF ADJUSTING CLUTCH
ASSEMBLY
1. Disconnect battery & electrical connections of
starter motor.
2. Remove the starter motor.
(For procedure refer
Electrical section.)
3. Drain the clutch fluid from the system. (Refer
Clutch Fluid Draining Procedure from this
section)

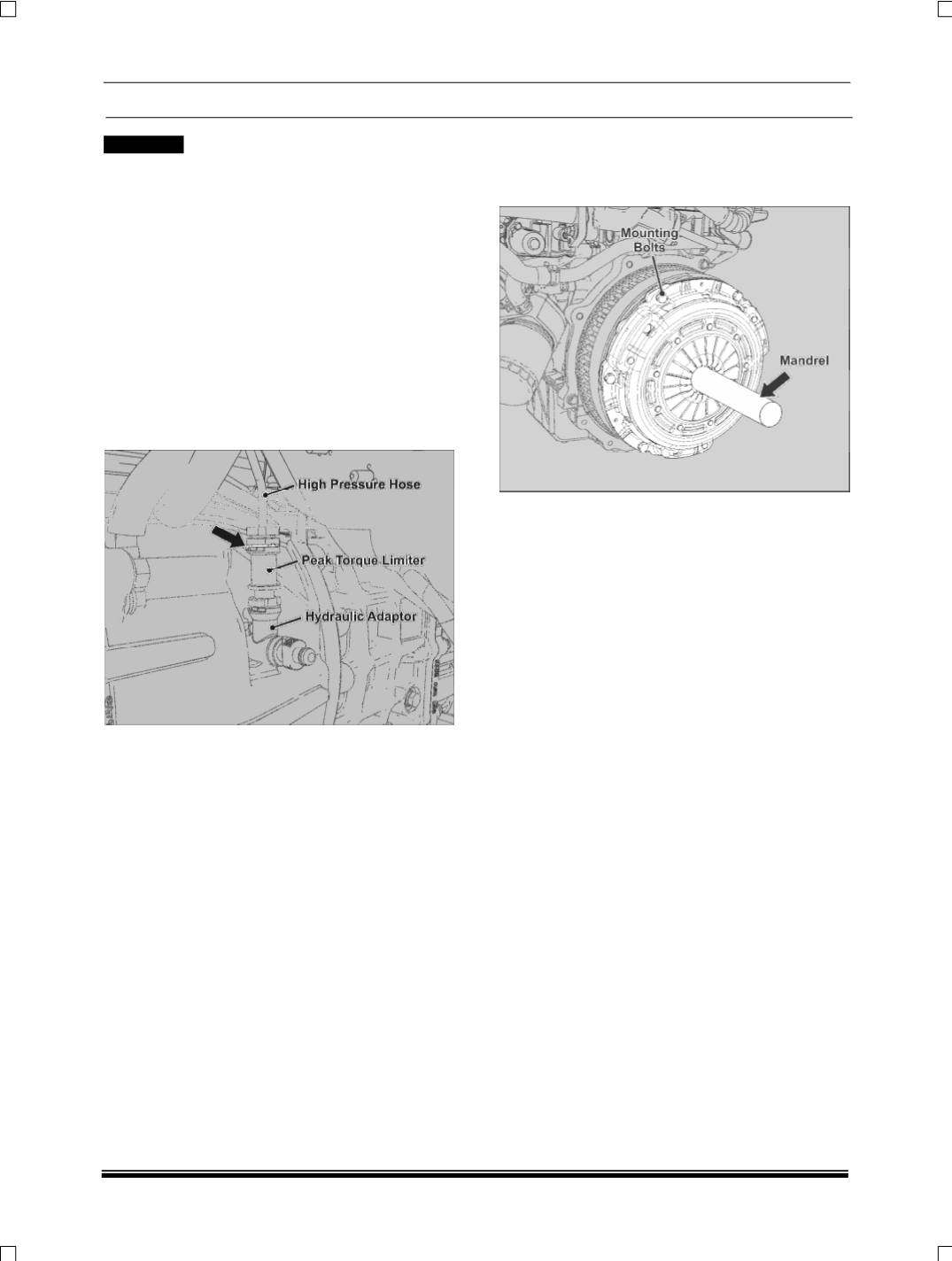

4. Pull out the clip using a screw driver and
disconnect the high pressure line from peak
torque limiter
by pulling it out.
5. Similarly remove the peak torque limiter from
the hydraulic adapter.
6. Lower the gearbox from the vehicle.
(For
procedure refer gearbox removal in Gearbox
section.)
7. Insert the clutch mandrel
(Part No.
287058902501)
into the centre of the clutch
cover and disc assembly and unscrew the 6
mounting bolts.
NOTE
While unscrewing the clutch mounting bolts make
a practice of unscrewing the bolts evenly
(alternately crosswise) in small increments.
8. Remove the clutch cover assembly and the
clutch disc from the housing.
B. INSPECTION OF COMPONENTS
1. Check SAC clutch disc hub splines for damage
and wear. The SAC disc set should easily slide
on the gearbox drive shaft but should not have
excessive play and wobble.
2. Check disc facing for wear, cracks, contact
pattern, burning marks and oil contamination.
Facings with any of the above defects or worn
out beyond permissible limits must be replaced
as a set.
3. Overhauling of clutch cover assembly is not
recommended. Before fitment, assembly should
be checked against specification and for
damage to pressure plate assembly.
4. Ensure that the clutch lining material is not
contaminated with oil or grease as this shall
result in clutch slipping.
