159 / 310
ENGINE
113

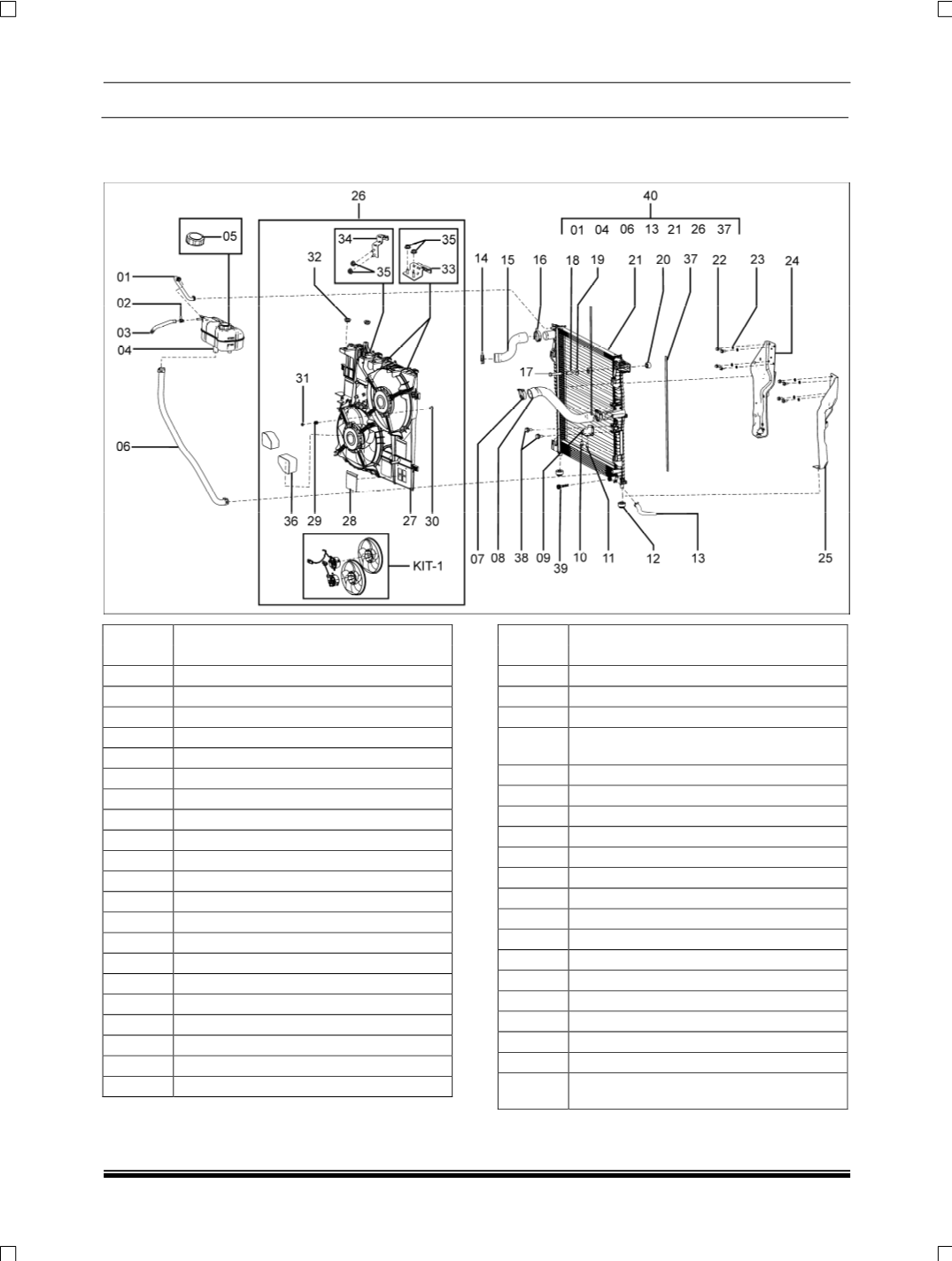

2.1.5.3 EXPLODED VIEW
A) RADIATOR ASSEMBLY
ITEM
NO.
DESCRIPTION
01
Hose (Radiator Degassing)
02
Spring. Band Clamp 15D x12W
03
Hose (Aux Tank to Vent Tube)
04
Assembly Auxiliary Tank
05
Pressure Cap (Auxiliary Tank)
06
Hose (Aux. Tank to Radiator Tank)
07
Spring. Band Clamp 49DX12W
08
Hose (Radiator to Thermostat)
09
Bracket (TC To IC Pipe)
10
Hex. Flange Screw M8x16
11
Hex Screw M6x16
12
Rubber Grommet
13
Hose (Radiator Drain)
14
Spring Band Clamp 43Dx12W
15
Hose(UCL To Radiator)
16
Spring. Band Clamp 47Dx12W
17
Pointed Screw for Radiator Mounting.
18
Sleeve
19
Washer A10.5
20
Rubber Grommet
21
Assy. Radiator
ITEM
NO.
DESCRIPTION
22
Hex. Flange Screw M8x16
23
Spring Washer B8
24
Assembly Bracket LH
25
Assembly Bracket RH
26
Fan & Fan Shroud Assembly
KIT-1
Set: Radiator Fan & Fan Motors
27
Fan Shroud -
28
Flap (On Fan Shroud)
29
Rubber Grommet
30
Sleeve
31
Hex. Nut M6
32
Rubber Grommet
33
Shroud Holding Clamp-I
34
Shroud Holding Clamp-II
35
Hex. Flange Nut AM4
36
Foam for Shroud Sealing
37
Sealing Foam
38
Hex. Flange Screw M6x14
39
Drain Plug Radiator
40
Assembly Radiator with fan, fan
shroud and auxiliary tank
