ARIA

ENGINE

114

2.1.5.4 MAINTENANCE

2.1.5.4.1 ON VEHICLE REPAIRS:

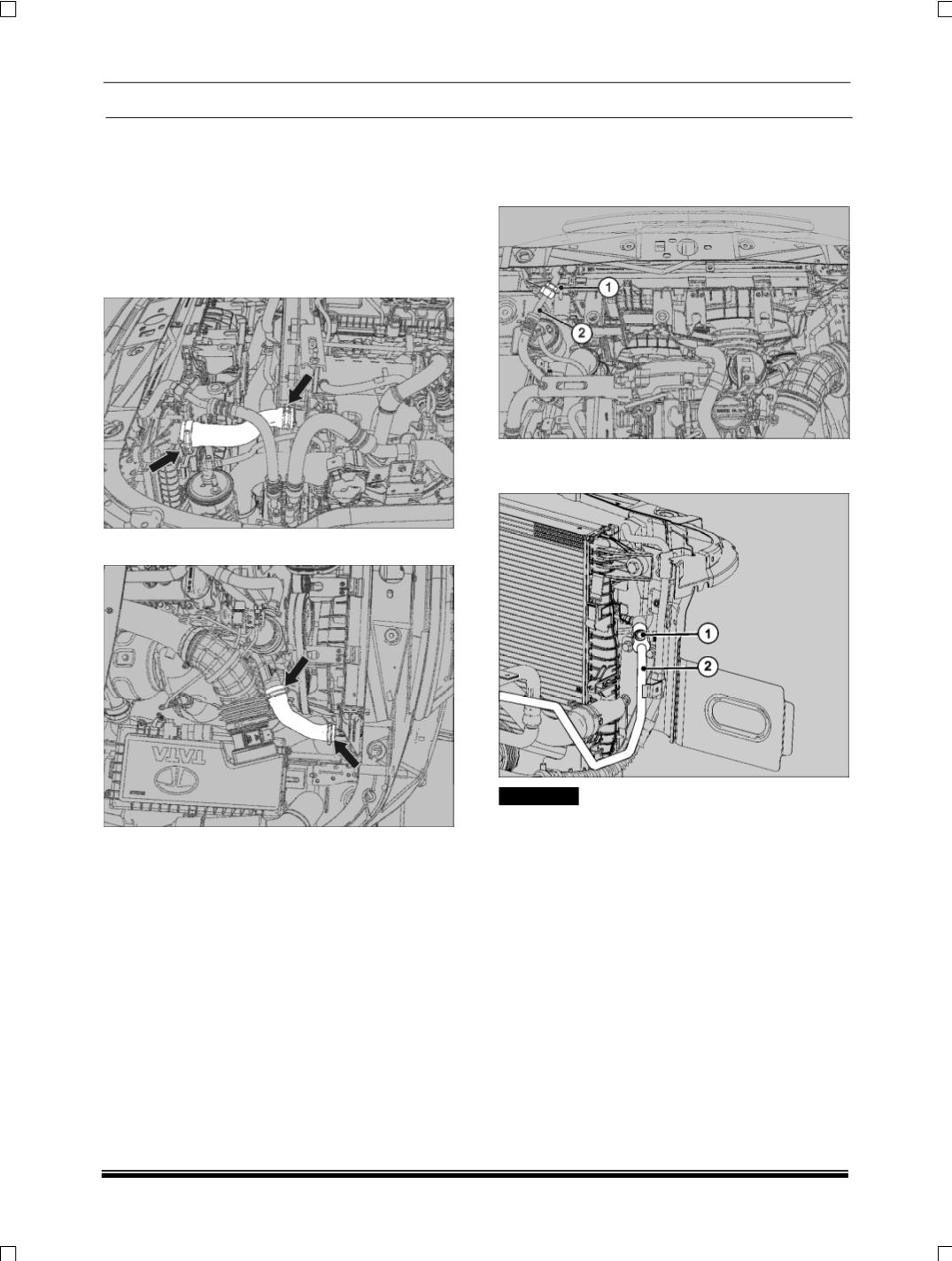

A. RADIATOR REMOVAL

1. Drain the coolant and remove the Auxiliary Cool-

ant tank.

(For procedure refer “Coolant

replacement” in Engine maintenance section)

2. Disconnect the radiator top hose at radiator end.

3. Remove the bottom hose at the thermostat end.

4. Discharge the refrigerant using standard recov-

ering equipment.

Loosen and remove the bolt

(1)

and disconnect

the refrigerant inlet pipe

(2)

to condenser. (

Follow

necessary instruction for evacuating the HVAC

system, refer HVAC Section)

6. Loosen and remove the bolt

(1)

and disconnect

the refrigerant outlet pipe

(2)

to condenser.

! CAUTION

Never leave the condenser lines open, immediately

cover them with caps, otherwise the desiccant which

is in-built in the condenser may absorb the moisture

from surrounding air and get contaminated
