TRANSAXLE (NANO AMT)
103

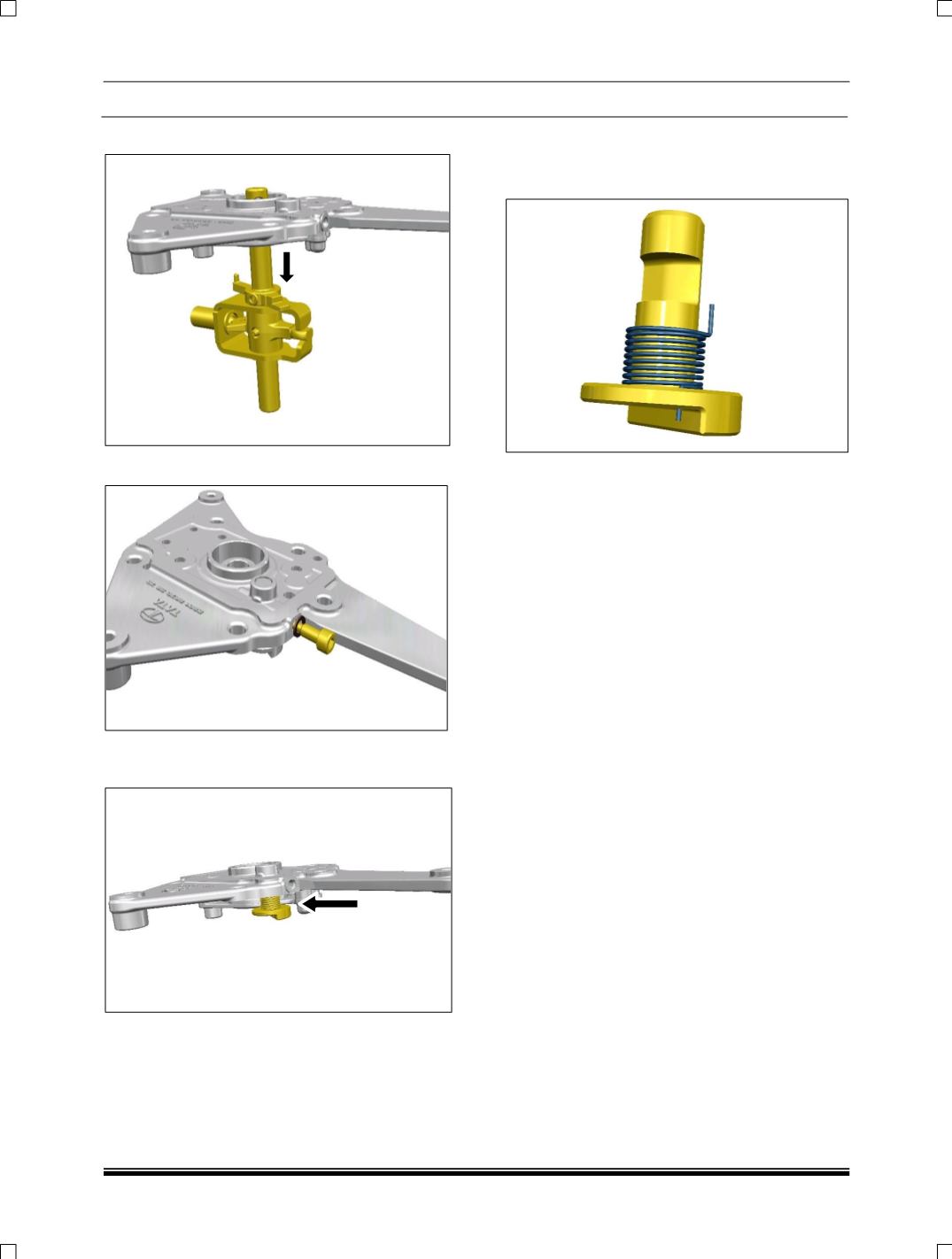

5. Separate the selector shifter shaft assembly.
6. Loosen and remove the inhibitor lock screw.
7. Separate the inhibitor moveable dog
assembly.
CAUTION:
The remaining assembly of top cover
sub assembly housing is consider as single
assembly and not serviceable at field.
NOTE:
In case of dismantle of top cover sub
assembly is replaceable with new one.
8. Inhibitor assembly.
