TRANSAXLE (NANO AMT)
109

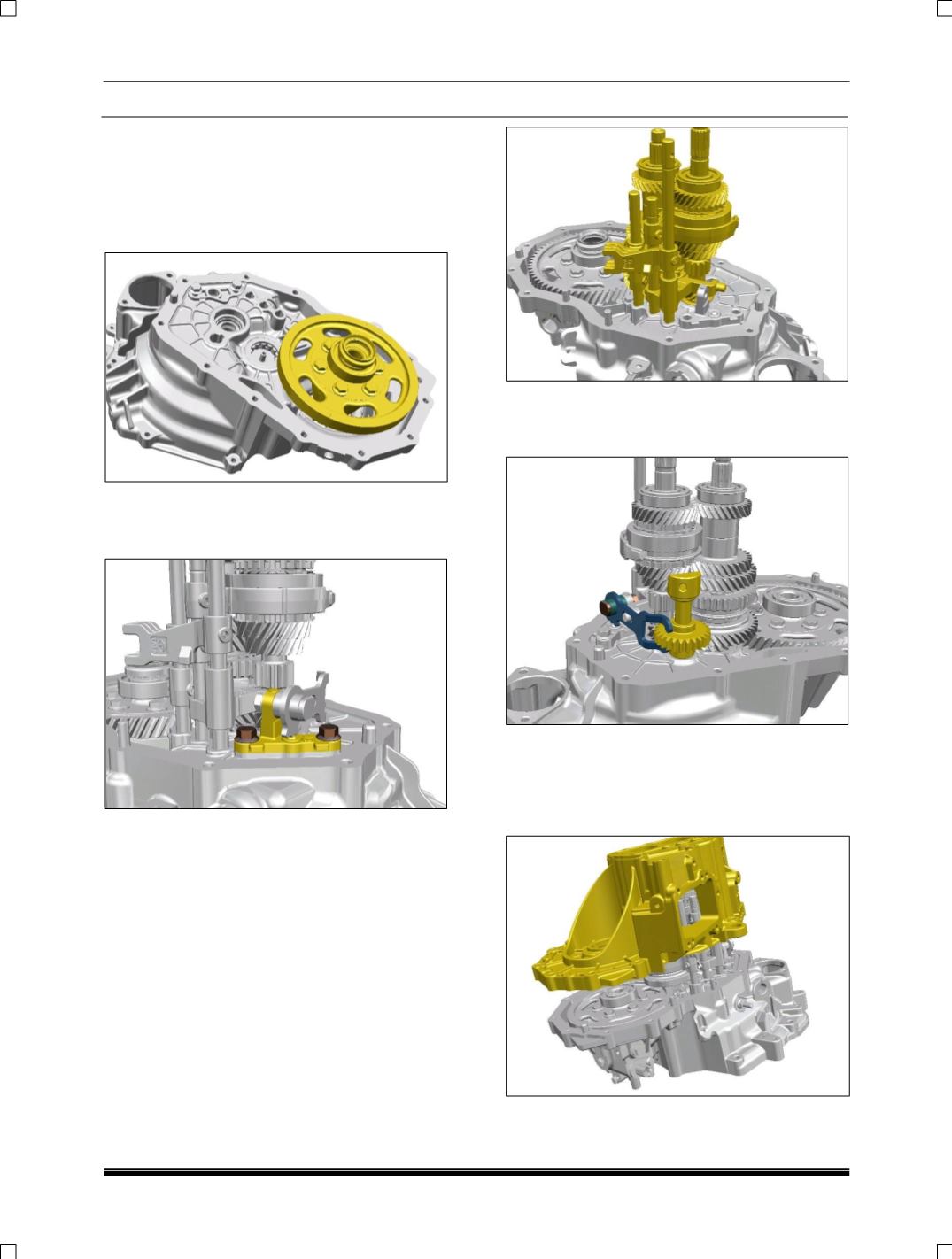

B. ASSEMBLINGTHE TRANSAXLE:
1. Place the differential shim selected (for shim
selection refer the Shim selection) in the
differential housing in the front half housing.
2. Place the differential assembly on the front
half housing.
3. Place the reverse gear shifter bracket in its
place in the front housing and tighten its two
M8 bolts to a torque of 2.1 ~ 2.5 kgm.
4. Place the lay shaft and the input shaft along
with the shifter shaft (including reverse shifter
shaft) in their respective places. Ensure that
the lay shaft and input shaft gears are
meshed. Ensure the proper fitment meshing
of the shifter sleeves.
5. Place the spacer and idler gear assembly in
its place and mesh the reverse shifter dog to
the idler gear.
6. Apply the liquid sealant to the front half mating
surface.
7. Place the rear half housing assembly on the front
half, such that the mating surfaces match
properly.
