965 / 1428
TRANSAXLE (NANO AMT)
104

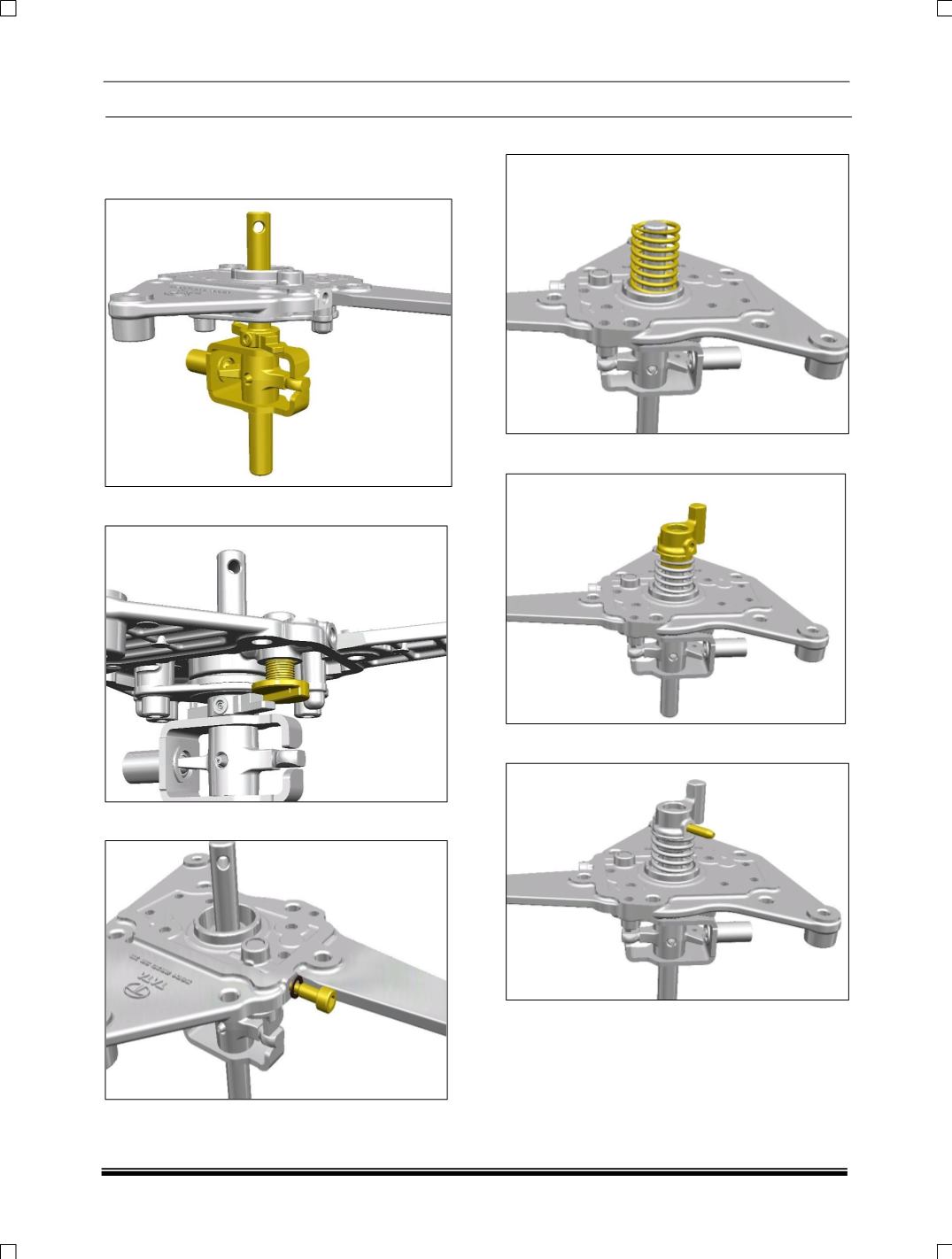

B. ASSEMBLY:
1. Insert the selector shaft along with its
assembly into the top cover sub assembly.
2. Place the inhibitor movable dog assembly.
3. Tighten the inhibitor lock screw.
4. Insert the spring.
5. Place the interface finger.
6. Fit the table spiral pin.
