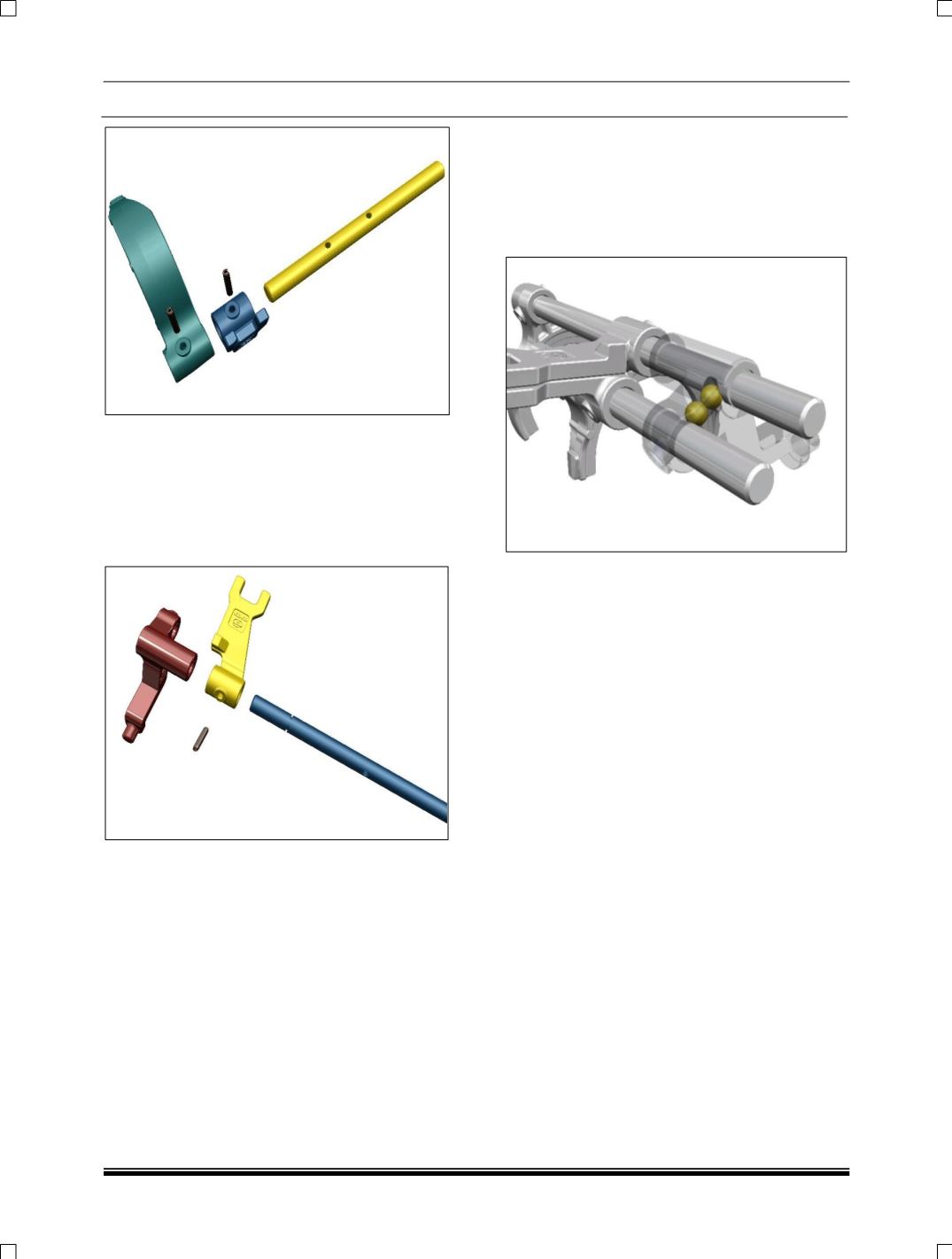

4. Assemble the third and fourth gear shifter by
placing the shifter fork in a flat surface.
5. Assemble the reverse gear shifter by inserting
the shifter dog followed by the shifter finger
from the end.
6. Then fit the dowel (Spiral) pin such that it
does not protrude from both ends.
7. Assemble the 5
th
and reverse shifter finger on
its shaft.
8. Assemble the 3
rd
4
th
shifter shaft on the 5
th
gear shifter shaft assembly and assemble the
steel balls on the 5
th
gear shifter shaft.
NOTE:
Before 3
rd
/ 4
th
and 5
th
/ Reverse shifter
shaft assembly please ensure the free moment of
Dia. 8 balls inside the reverse figure.
