TRANSAXLE (NANO AMT)
91

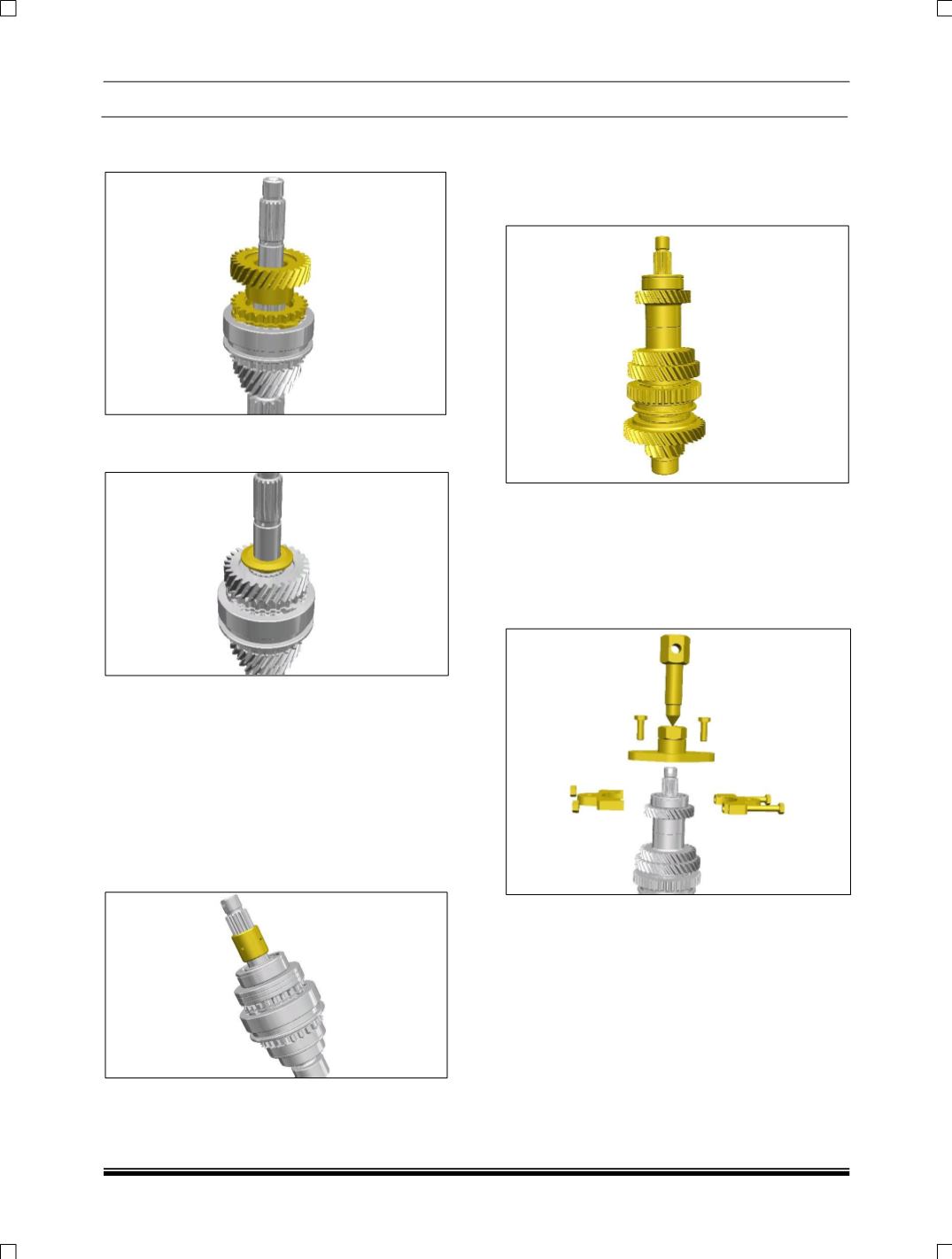

7. Place the synchro cone and then place the
fourth gear on it.
8. Place the spacer (input Shaft) on the fourth
gear.
9. Fit the rear end ball bearing using the tool
2702 5890 35 04 (Drift for rear hub inner
bearing outer race), such that the snap ring
groove is uncovered.
NOTE:
Measure the axial float using a dial gauge;
float should be within 0.2 ~ 0.4mm.
10. Heat the input shaft bush up to 52- 60deg.
Insert the bush on input shaft from front end
and ensure proper fitment of bush up to the
given collar.
7. LAYSHAFT ASSEMBLY:
A. DISMANTLING:
1. Hold the Lay shaft in a bench vice such that
the rear half side is on the top.
2. NOTE: To ensure that the gears/ splines do
not get damaged by the vice jaws, pad it with
wooden pieces or any other softer material.
3. Remove the rear end ball bearing using the
puller tool (Tool No. 2834 5890 2604 PULLER
FOR REMOVAL OF REAR BRG. FROM
INPUT SHAFT & LAYSHAFT).
