TRANSAXLE (NANO AMT)
86

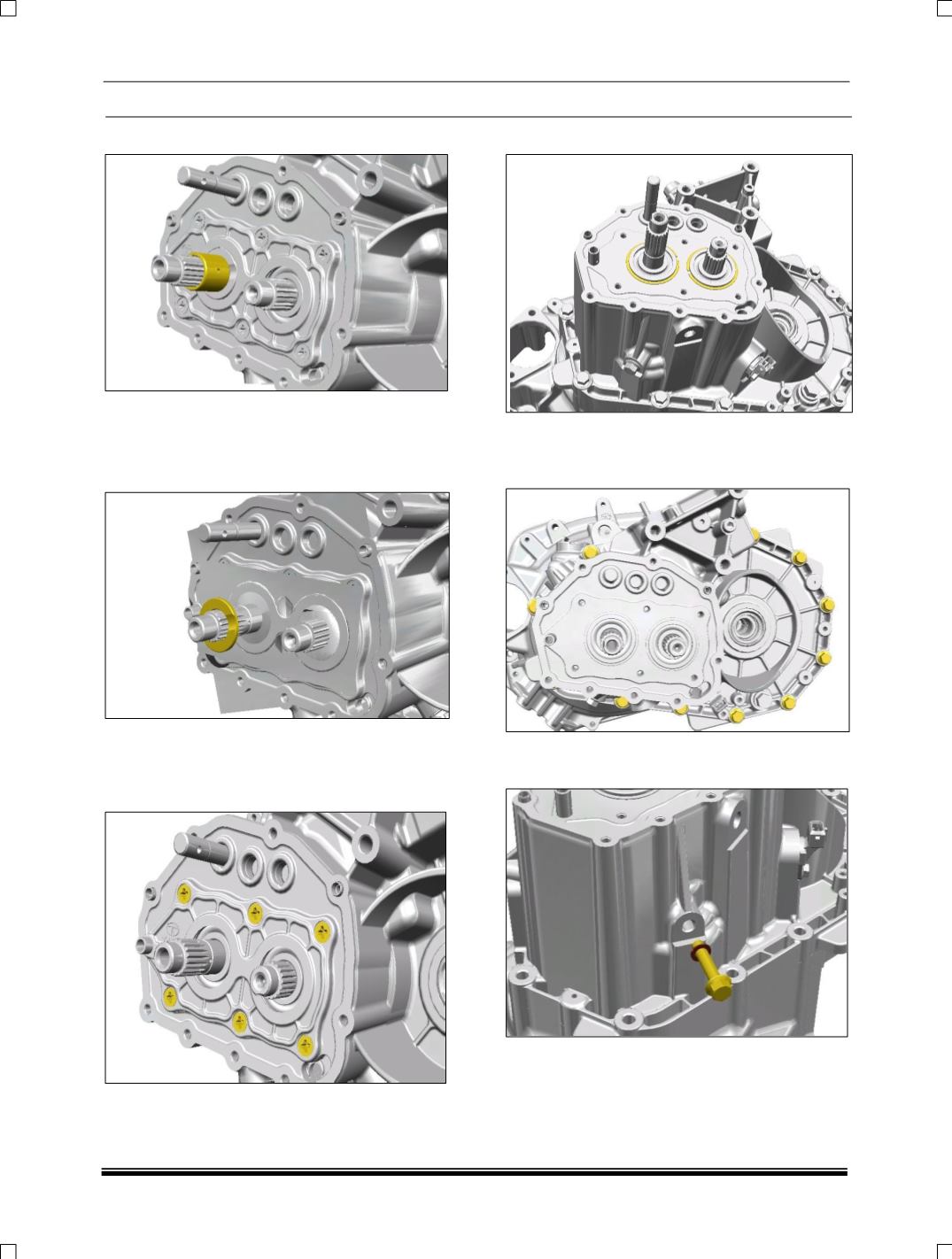

14. Remove the bush.
CAUTION:
the bush is heat press fitted if it’s hard
to find dissemble form input shaft then we can
directly remove the bearing retainer plate cover.
15. Remove spacer.
16. Rest the transaxle assembly on the front half
and remove the bearing retainer plate by
unscrewing the six M8 screws and remove
the plate cover.
17. Remove the lay shaft and input shaft snap ring.
18. Unscrew the 11 bolts on the rear half
housing, holding the front and rear half
together.
19. Remove the Idler gear bolt and remove the
washer.
