TRANSAXLE (NANO AMT)
83

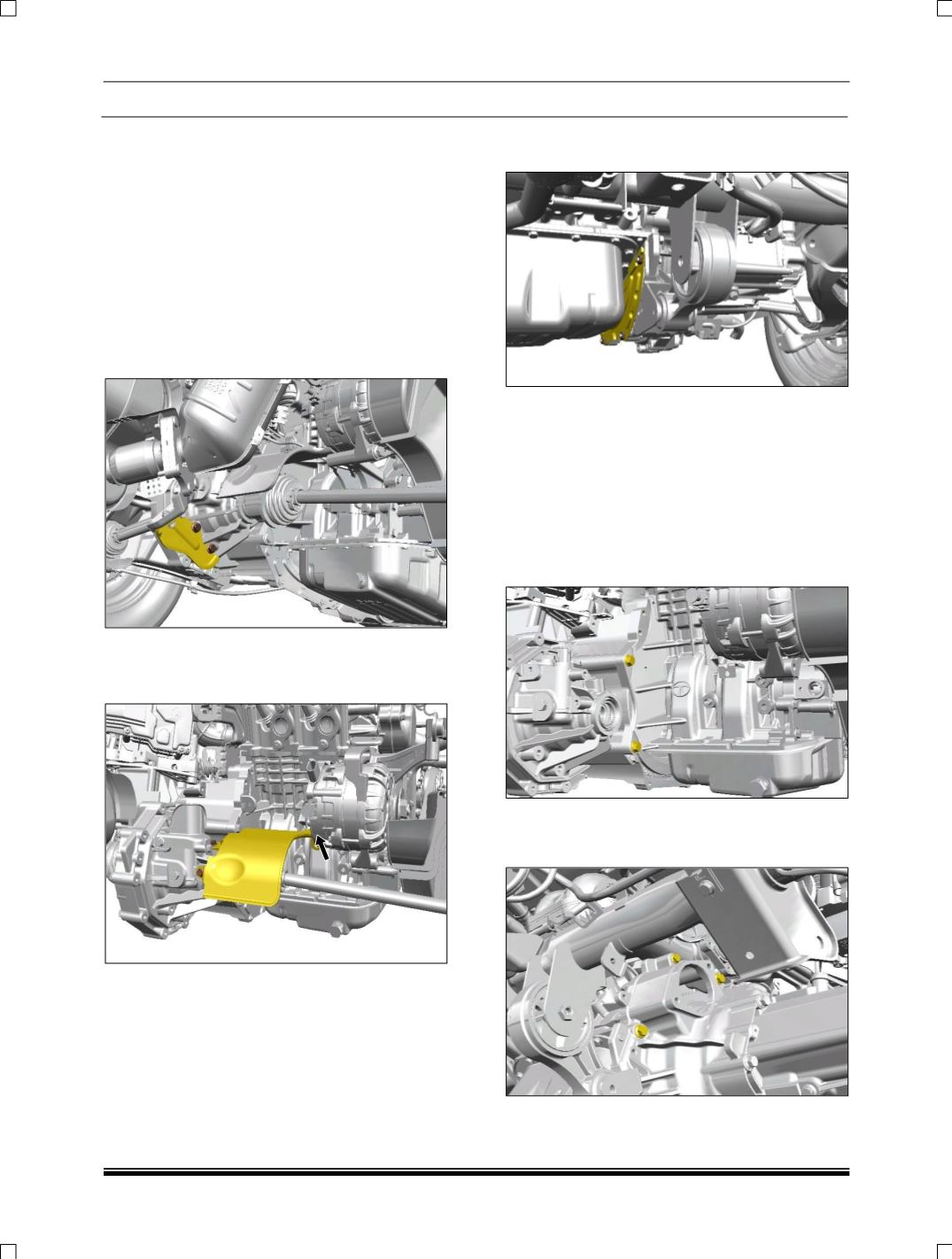

4. REMOVAL OF TRANSAXLE FROM
VEHICLE:
1. Drain the transmission oil. For procedure refer
‘Transaxle oil drain’.
2. Disconnect the vehicle speed sensor
connector.
3. Disconnect battery, starter motor and AMT kit
electrical connections.
4. Remove the starter motor. For procedure
refer “Electrical Group”.
5. Disengage the exhaust silencer bracket (Near
catalytic convertor joints) from transaxle, by
loosening and removing the bolts (02 No’s).
6. Loosen the bolts and remove the exhaust
silencer.
7. Remove the drive shaft heat shield mounting.
8. Remove the wiring harness from transmission
front half bracket.
9. Remove the LH semi-trailing arm along with
shock absorber and coil spring. For procedure
refer ‘Semi- Trailing arm, Shock absorber and
Coil Spring Removal’ – Suspension Group’.
10. Loosen the three bolts of the back cover
and remove the back cover.
11. Remove the LH driveshaft completely
and disconnect the RH driveshaft from the
transaxle end. For procedure refer ‘Drive Shaft
removal’.
12. Support
the
engine
and
transaxle
(separately) either using a stand from below
or a suspender from above.
13. Loosen and remove the bolts holding the
transaxle housing to engine housing from
engine side.
14. Loosen and remove the bolts (03 No’s)
holding the transaxle housing to engine housing
from transaxle side.
