ELECTRICAL
67
ELECTRICAL

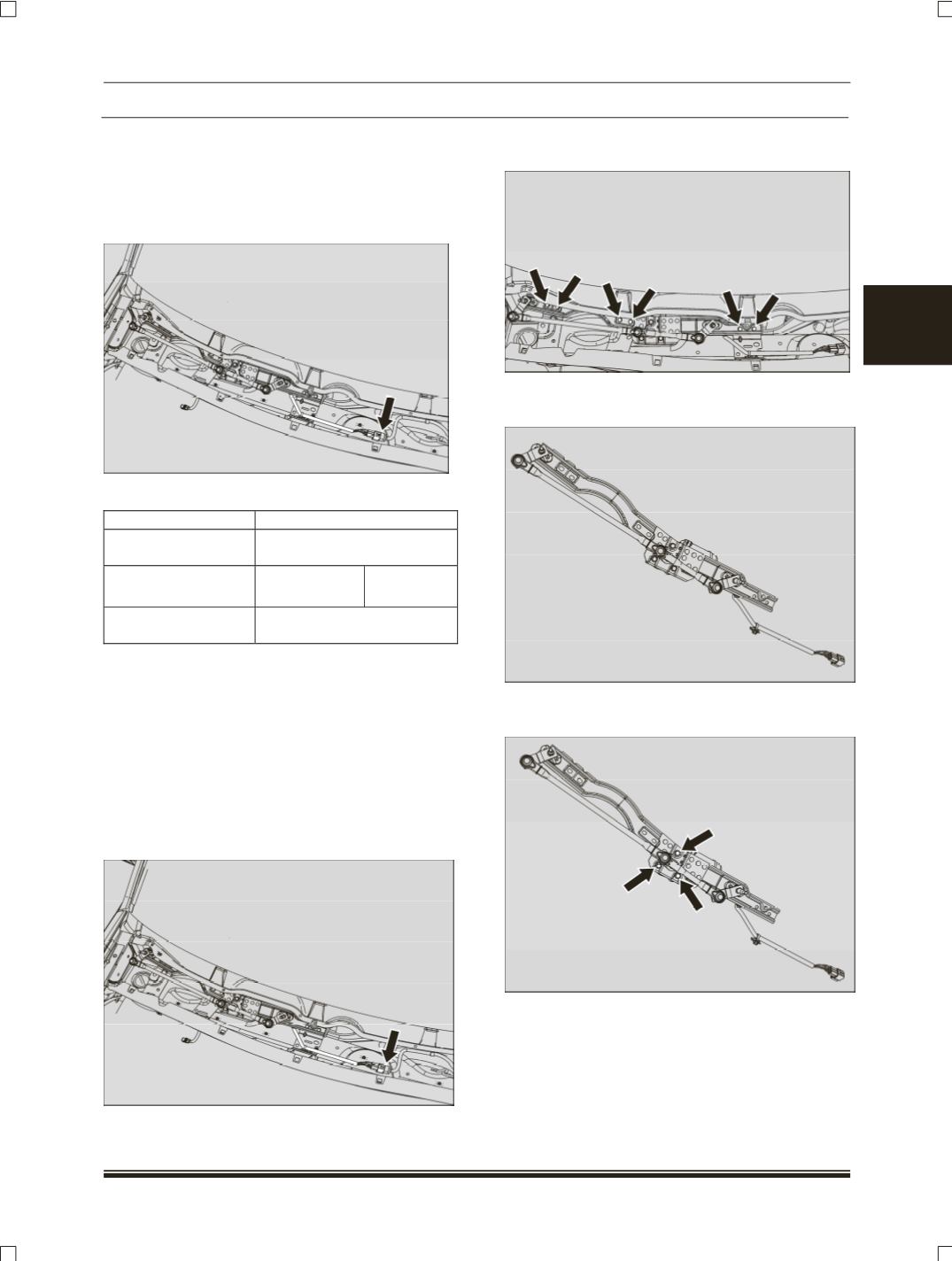

8.9.3 FRONT AND REAR WIPER SYSTEM
COMPONENTS:
8.9.3.1 FRONT WIPER MOTOR
LOCATION
:
The front wiper motor assembly is
fitted on windscreen support panel.
SPECIFICATION:
Operating Voltage
10 – 15 V
Operating
Temperature
- 40ºC to +80ºC
Noise
50 dB at low
speed
60 dB at
high speed
Insulation
Resistance
1 M. Ohm min.
REMOVAL:
1.Disconnect the negative terminal of battery.
2.
Remove both side wiper arm and blade
assembly.
(Refer wiper arm and blade
assembly removal procedure)
3.Loosen and remove 6 no. of locking clips of
plenum assembly.
(Refer Plenum assembly
removal procedure)
4.Disconnect the wiper motor connector.
5.Remove six mounting bolts of wiper linkage.
shown in below figure.
6. Take out the wiper linkage assembly along
with wiper motor.
7. Remove three mounting bolts of wiper motor
and take out wiper motor from wiper linkage.
