SAFARI STORME

ELECTRICAL

Control of the wipers and washers is achieved by the following components.



BCM



Front wiper relays (

ON/OFF and Slow/fast

relays

)



Front wash/wipe switch.



Variable delay switch (

part of combi-switch

)



Front wiper motor assembly.



Front washer pump motor.



Rear wiper relay.



Rear wiper switch (

INT and ON

)



Rear washer switch.



Rear wiper motor.



Rear washer pump motor.



Fuses.

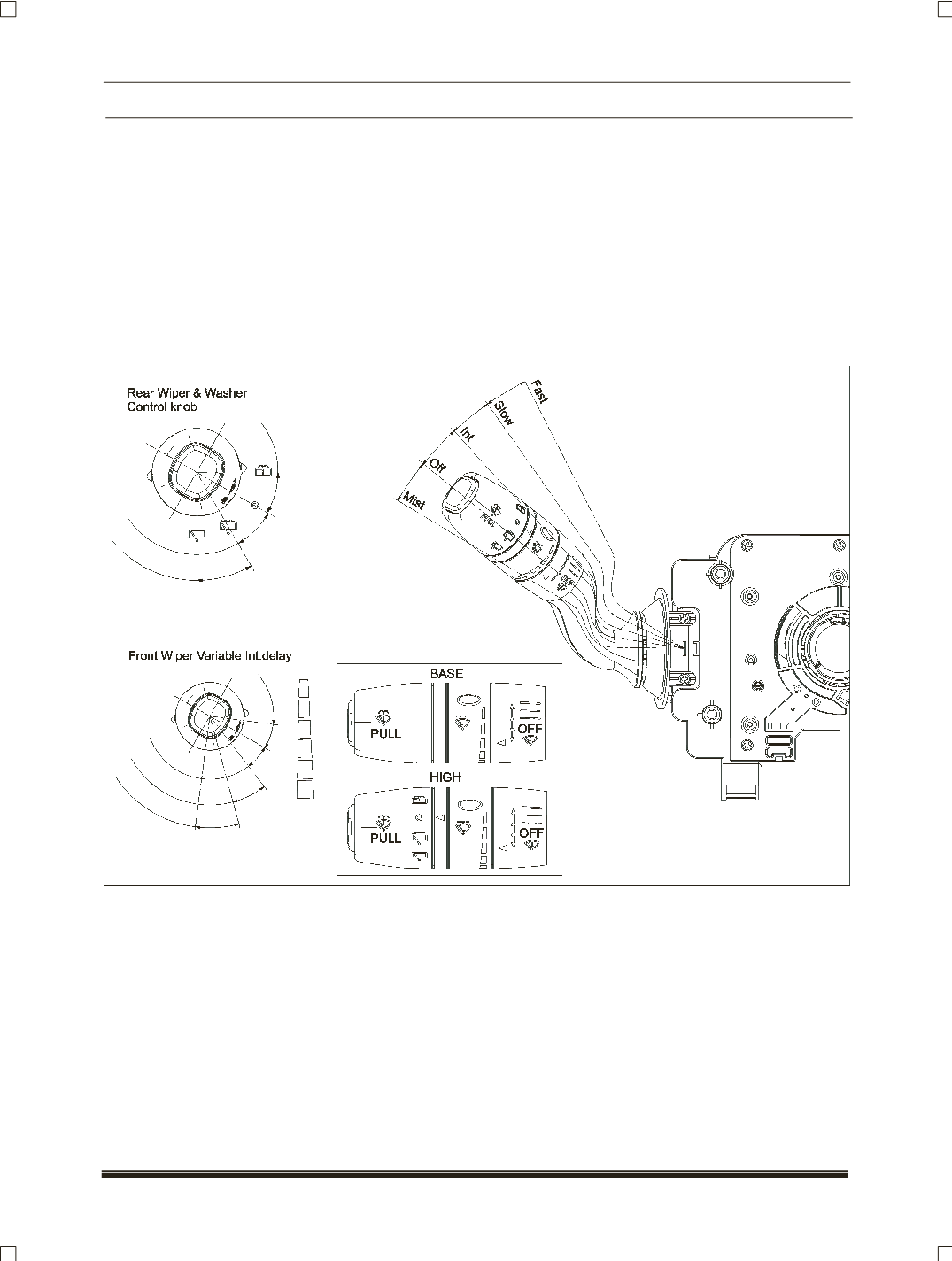

8.9.2 FRONT AND REAR WASH/WIPE SWITCH FUNCTIONALITY

FRONT WASH AND WIPE:



MIST (

Single Wipe

)



OFF



INTERMITTENT/AUTO



LOW SPEED

(Not controlled by BCM)



HIGH SPEED

(Not controlled by BCM)

REAR WASH AND WIPE:



OFF



WASH ON



REAR INTERVAL



REAR WIPER ON

For detail, please refer BCM section.
