ELECTRICAL
72

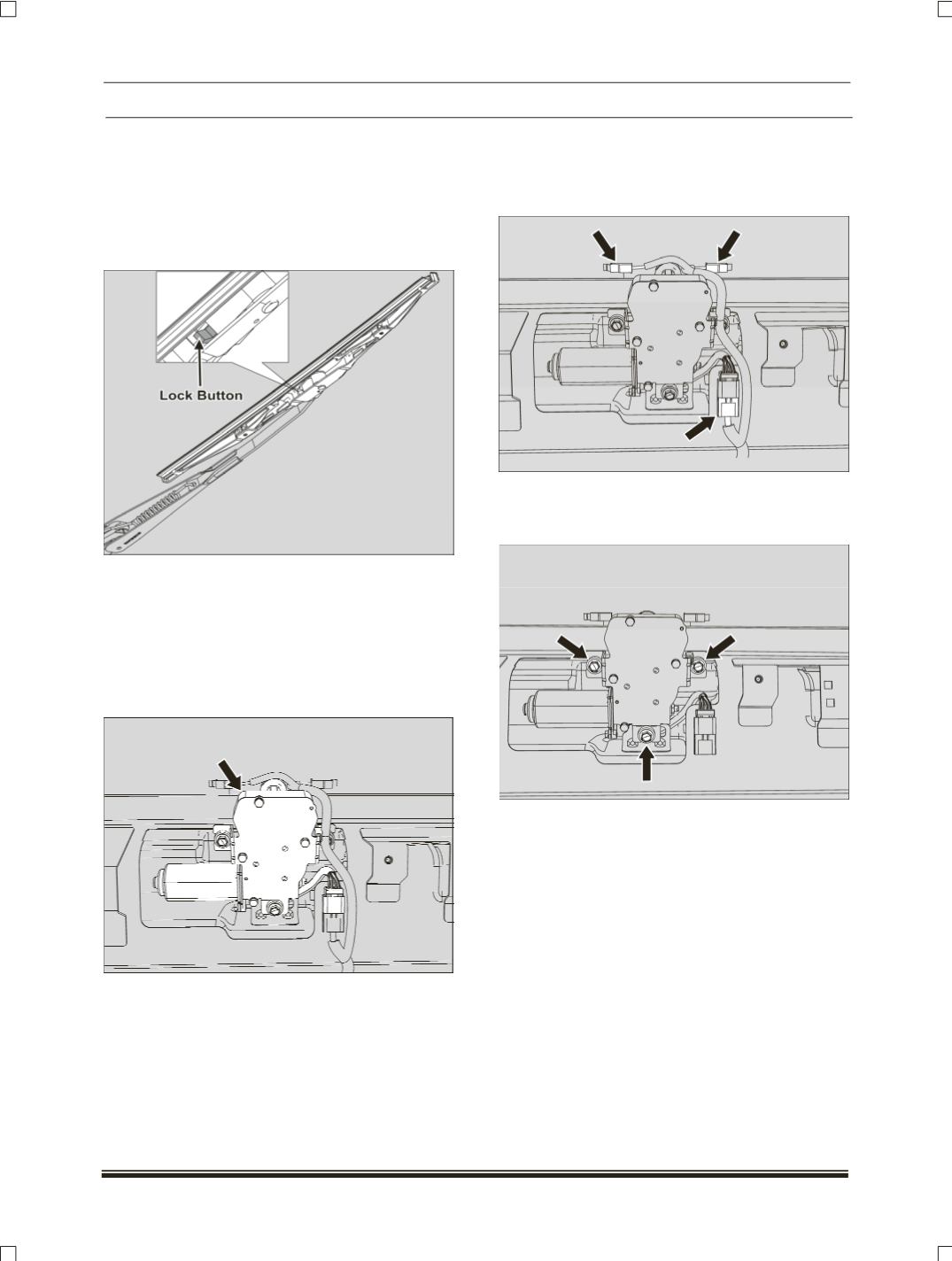

REAR WIPER BLADE:
REMOVAL
1.Slightly lift the wiper arm vertically.
2.Press the lock button and push down the blade
assembly from its location and take out the wiper
blade assembly from wiper arm.
REFITMENT:
1.Slightly lift the wiper arm assembly.
2.Insert the wiper blade in the wiper arm and push
it up until it gets locked.
8.9.3.4 REAR WIPER MOTOR
LOCATION:
It is fitted on tail gate.
REMOVAL:
1.Remove the wiper arm and blade assembly
(
Refer procedure given in the wiper arm and
blade section
)
2.Take out the cap from the wiper shaft and
remove the one mounting nut, pull out washers.
(
Cup washer-steel and rubber washer
)
3.Remove tail gate trim lower. (
For procedure refer
body section
)
4.Disconnect the electrical connection of rear
wiper motor and Demister.
5.Remove three mounting bolts and take out rear
wiper motor along with washers. (
Steel washer
and rubber washer-inner
).
