SAFARI STORME

ELECTRICAL

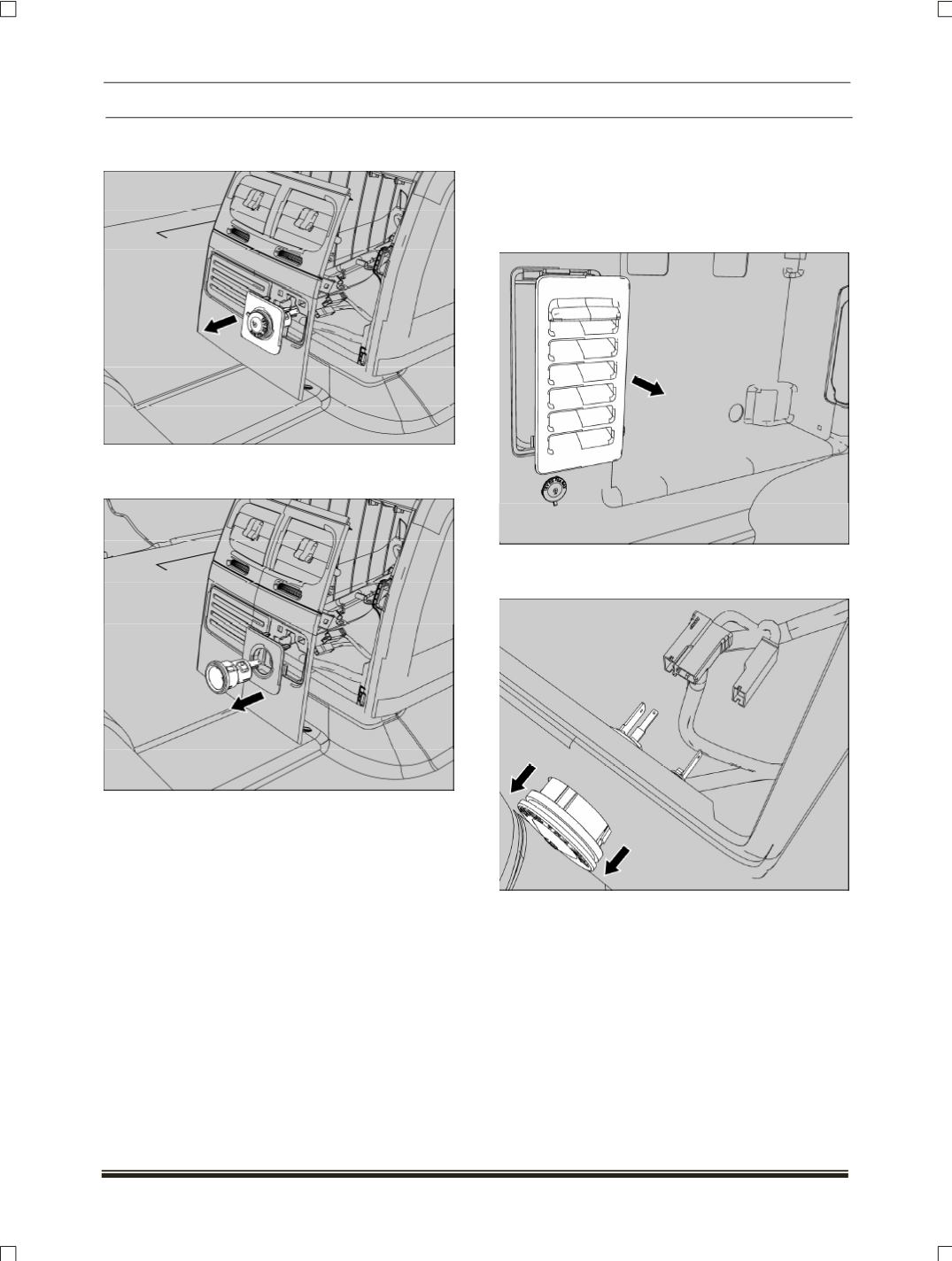

3.Carefully pry out the power socket assembly with

cigar lighter bezel.

4.Carefully pry out the power socket assembly with

cigar lighter bezel.

REFITMENT:

1.Fit the power socket assembly into cigar lighter

bezel.

2.Fit the power socket assembly with cigar lighter

bezel into floor console front. (

Snap fitted

3.Connect the electrical connection of power

socket.

4.Fit the floor console assembly.

POWER SOCKET ON REAR QUARTER TRIM:

REMOVAL:

1.Open the tailgate.

2.Pry out the rear LH quarter trim bulb access

door.

3.Carefully pry out the power socket from rear

quarter trim LH

REFITMENT:

1.Fit the power socket assembly into the rear

quarter trim LH.

2.Connect the electrical connection of power

socket.

3.Fit the rear quarter trim bulb access door
