INSPECTION:
OPERATION (
AT HIGH SPEED
):

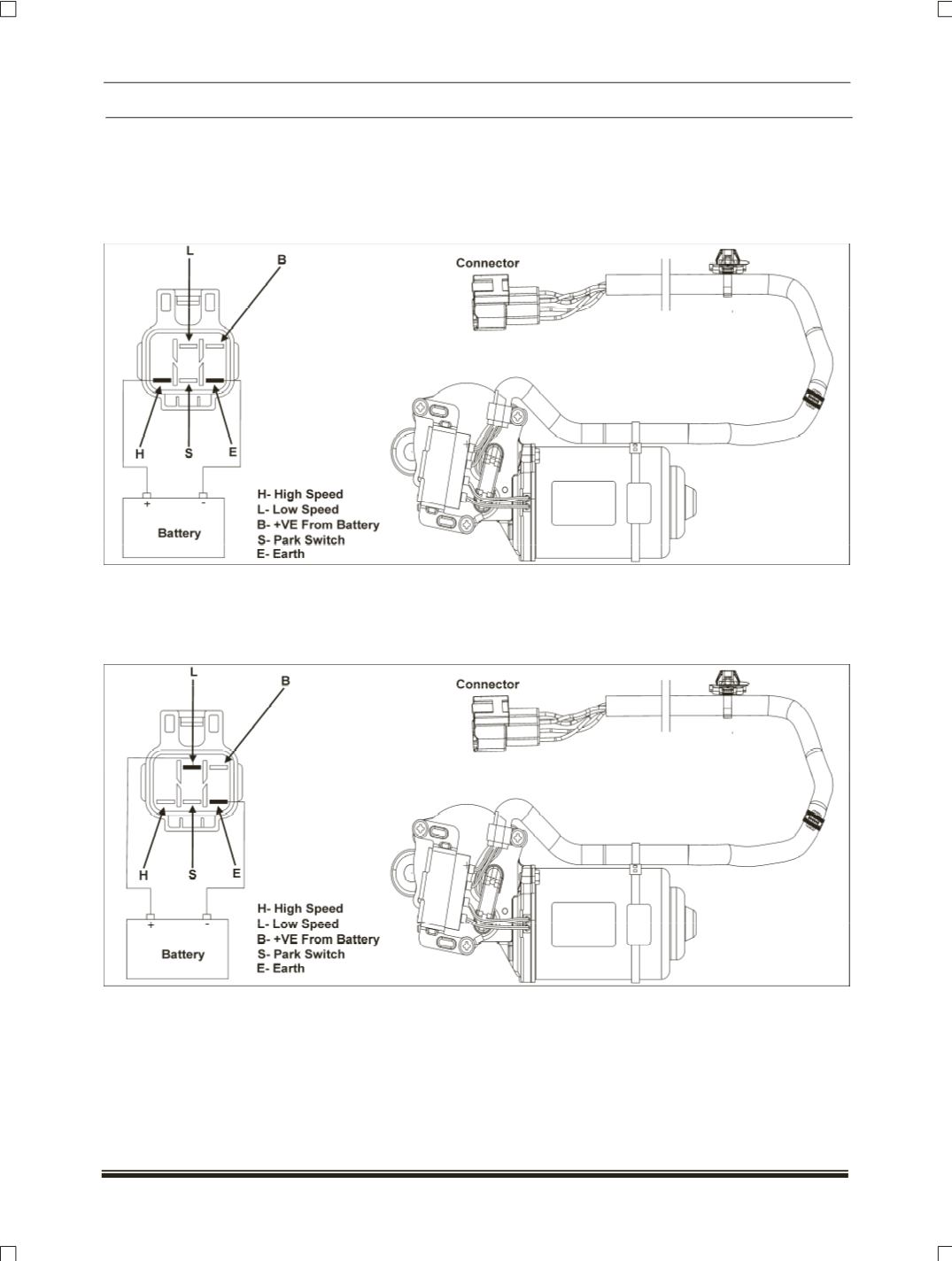

Connect the positive (+) lead from the battery to terminal H (
HI Speed
) and the negative (−) lead from
the battery to terminal E (
Earth
), check that the motor operates at high speed. If operation is not as specified,
replace the motor.
OPERATION (
AT LOW SPEED
):
Connect the positive (+) lead from the battery to terminal L (
Low speed
) and the negative (−) lead from
the battery to terminal E (
earth)
, check that the motor operates at low speed. If operation is not as specified,
replace the motor.
OPERATION (
STOPPING AT STOP POSITION
):
a. Operate the motor at low speed and stop the motor operation anywhere except at the stop position by
disconnecting positive (+) lead of battery from terminal L (
Low speed
).
b. Connect terminals L (
Low speed
) and S (
Park switch
).
