ELECTRICAL
70

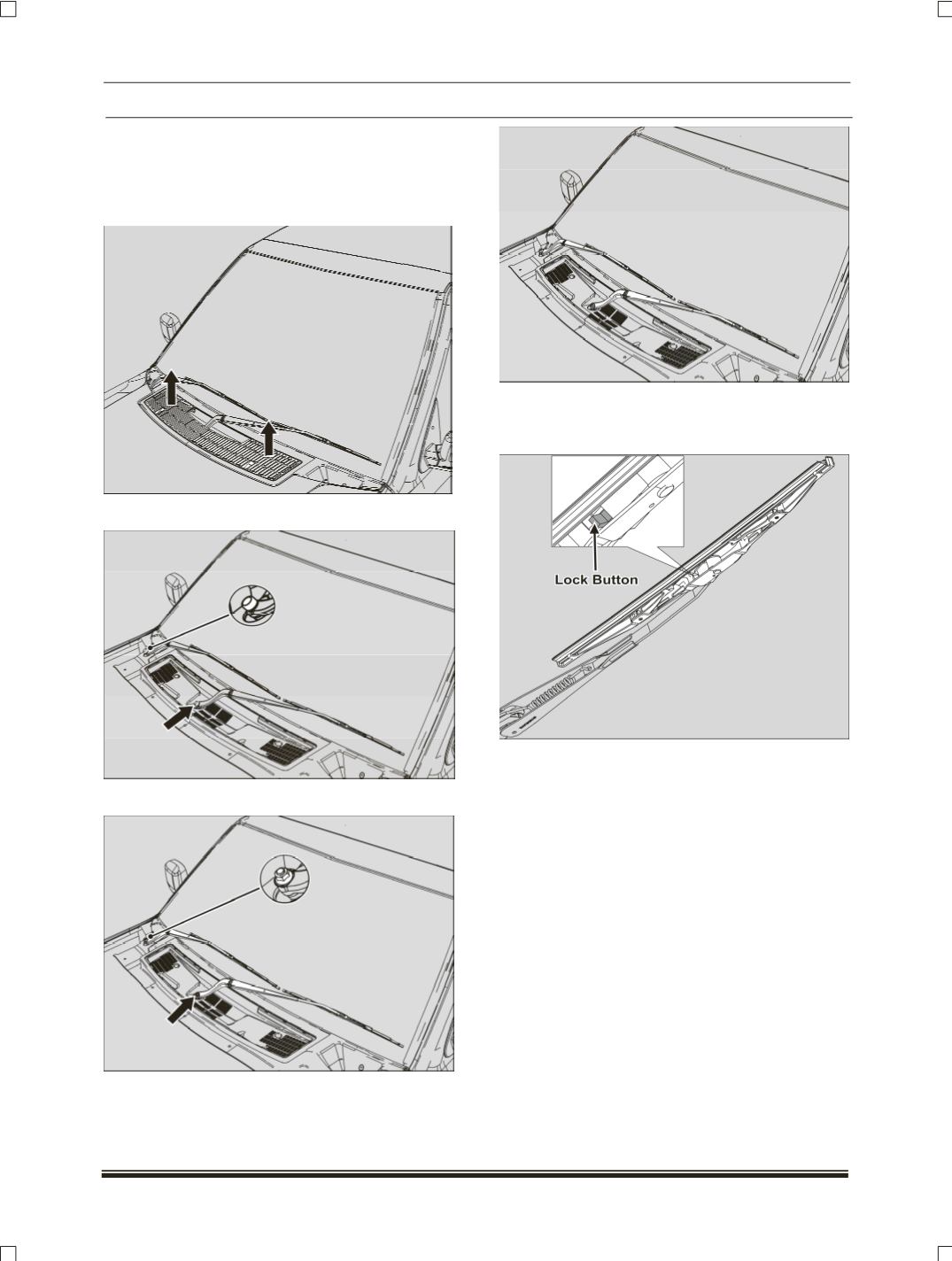

8.9.3.2 FRONT WIPER ARM AND BLADE
REMOVAL
1.Pry out the Plenum centre grill assembly and
disconnect the washer jet pipe connection.
2.Remove the rubber cover.
3.Remove mounting nut of wiper arm assembly.
4.Take out the wiper arm and wiper blade
assembly from the shaft.
5.Press the lock button and push down the blade
assembly from its location and take out the wiper
blade assembly from wiper arm.
INSPECTION:
Inspect wiper blade rubber for any
cut. If found, replace the wiper blade assembly.
REFITMENT:
1.Before fitting the wiper arm and blade assembly
bring the wiper motor to the parking position.
This can be done by switching ON the Ignition
and giving a single wipe.
NOTE:
Switch OFF the Ignition only after the motor
has stopped.
2.Fit the wiper arm in its parking position to the
shaft locating it on the splines so that the wiper
blade is just clear of the windshield glass. As
shown in the below figure.
