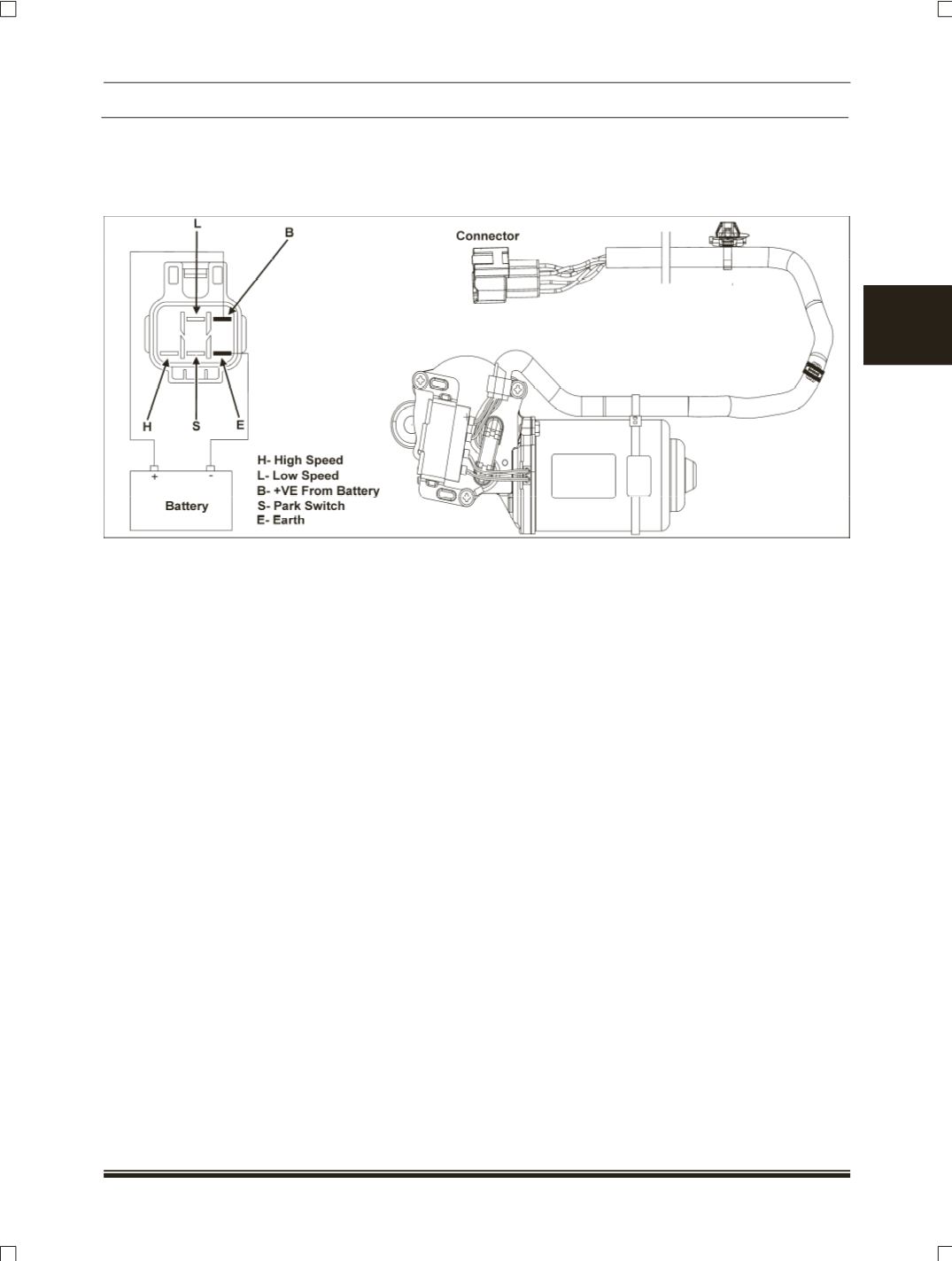

c. Connect the positive (+) lead from the battery to terminal B

(+ve from battery)

and the negative (−) lead

from the battery to terminal E(

Earth

), check that the motor stops running at the stop position after the

motor operates again.

d.If operation is not as specified, replace the motor.

REFITMENT:

1.Fit the wiper motor on the wiper linkage

assembly.

Tightening torque for bolts – 0.8 Kgm.

2.Connect the electrical connection of wiper

motor.

3.Fit the wiper linkage assembly.

4.Fit the wiper motor mounting bracket.

5.Connect the washer hoses to washer nozzle on

leaf screen and fit the wiring harness as per

routine.

6.Fit the leaf screen.

7.Fit the wiper arm and blade assembly.

8.Connect the negative terminal of battery.
