BODY
38

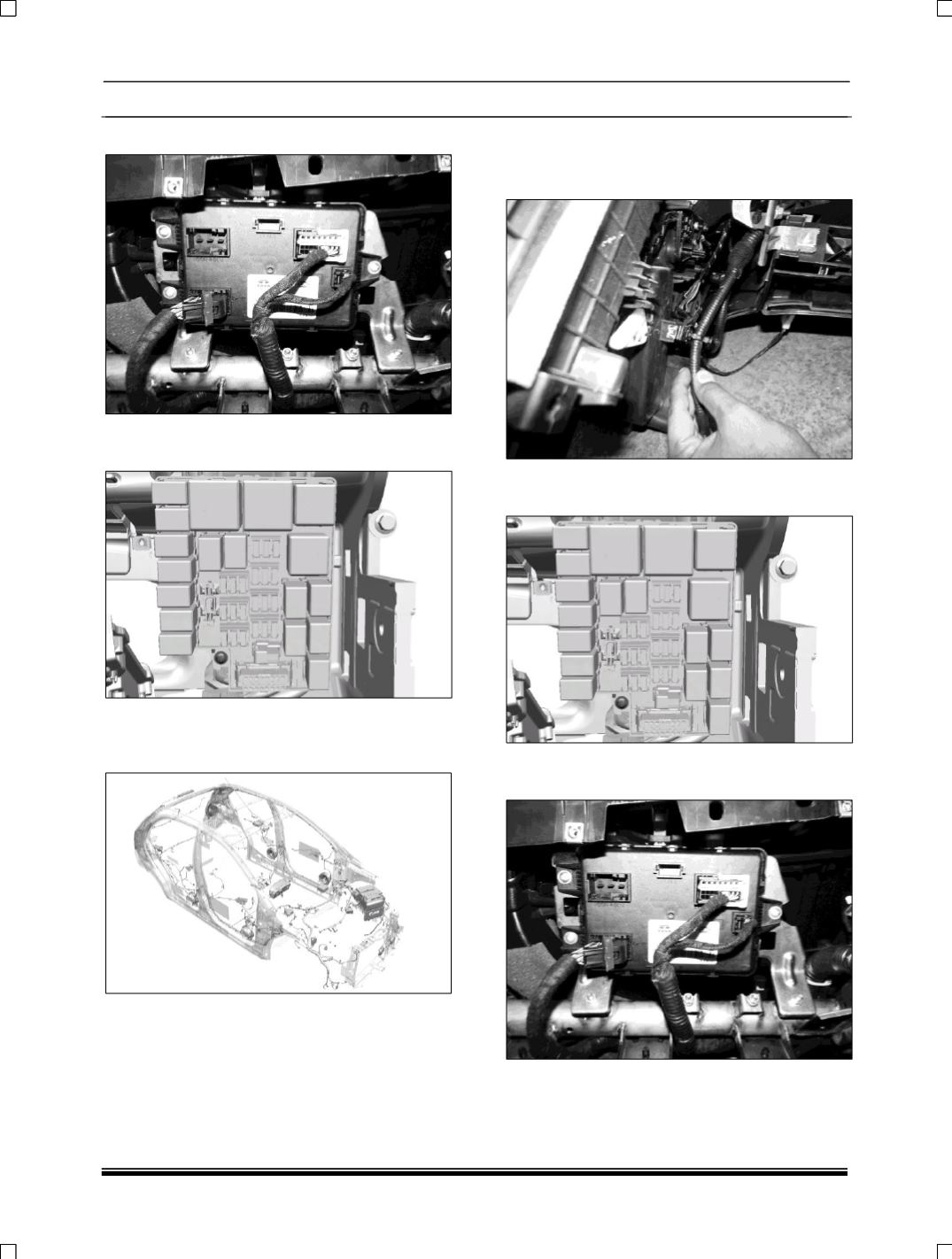

10. Remove wire harness connection on BCM
11. By using Battery Tool, unscrew St 4.8 Screw
(1No) fixing of FUSE BOX.
12. Remove all Christmas clips Edge clips and
wire harness used to fix WH on CCB and
HVAC and Remove WH completely.
REFITMENT
1. Fix all the Christmas clips and edge clips
used to fix wire harness on CCB and HVAC
2. (By using Battery Tool, tighten St 4.8 Screw
(1 No) fixing of FUSE BOX.
3. Connect the wire harness connection on
BCM
