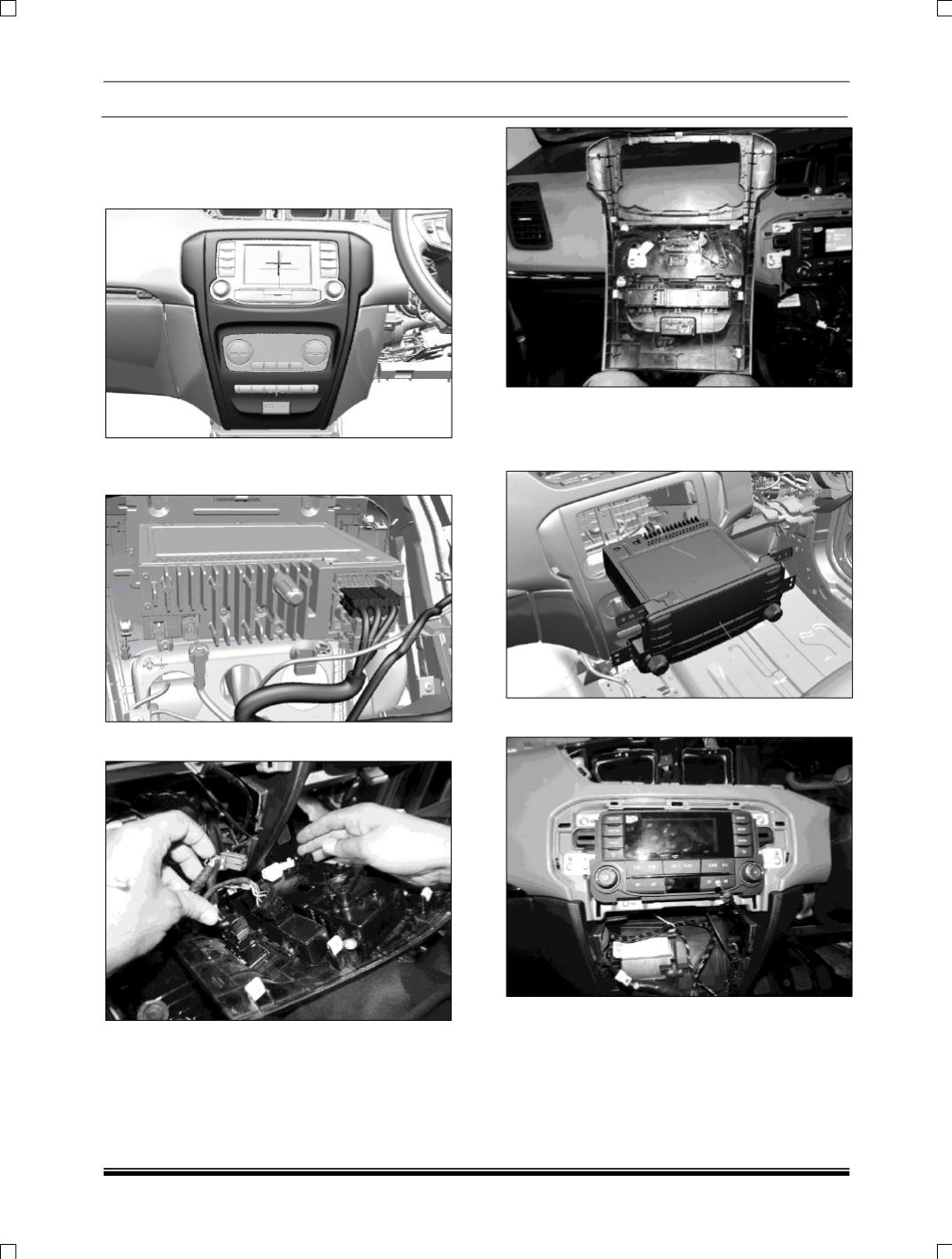

9.9.10 SERVICING FASCIA CLUSTER:
1. Pull out the fascia center cluster lower along
the clip direction from the dashboard.
2. Remove the wiring harness connections with
switch bank.
4. Remove AC control panel wiring.
5. Remove fascia cluster
ASSEMBLY
3. Connect the wire harness connections with
the switch bank.
6. Fix the radio blank by four screws.
2. Connect the ac control panel wires.
3. Press fit the Fascia cluster.
