BODY
48

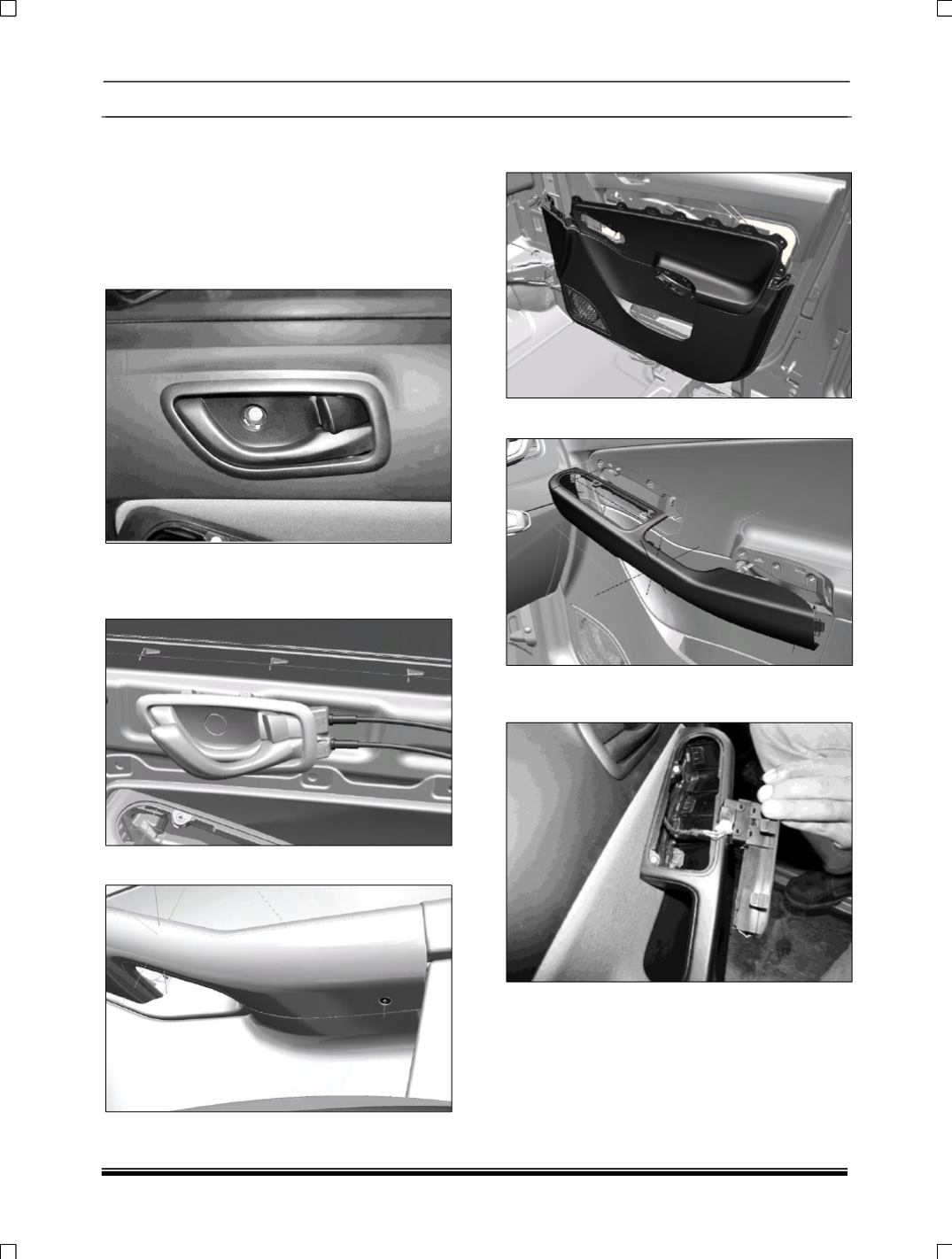

9.10.4 Removal and Refitment of Rear Door
Trims, Window Regulator, Latch and Door
Handle:
Removal:
1. Remove the door release lever holding
screws, as shown in fig. Insert wedge pin and
pry out.
2. Disconnect the two linkages (lock and
unlock) of the door release lever and remove
it.
3. Remove the door pull outer mounting screws.
4. Insert wedge pin and detach door pull outer
eight locator from door trim.
5. Remove door pull outer.
6. Disconnect the window winding connection
and remove the switch.
